- Part number
- 6GK7542-5FX00-0XE0
- Model no
- CP 1542-5 ********** spare part ********* communications processor CP 1542-5 for connection of SIMATIC S7-1500 to PROFIBUS DP, DPV1 master or DP device, S7 and PG/OP communication, time synchronization, diagnostics, reduced quantity structure.
Siemens has announced the end of 6GK7542-5FX00-0XE0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

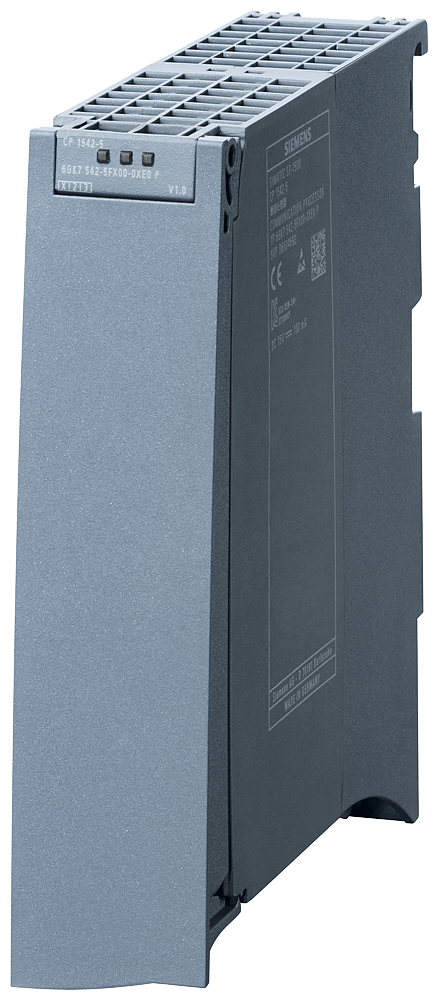

SIMATIC S7-1500Siemens 6GK7542-5FX00-0XE0 SIMATIC S7-1500 CP 1542-5 PROFIBUS DP PLC Communication Module
Siemens CP 1542-5 PROFIBUS DP processor for SIMATIC S7-1500, DPV1 master/device, up to 12 Mbit/s
Description
About the CP 1542-5 ********** spare part ********* communications processor CP 1542-5 for connection of SIMATIC S7-1500 to PROFIBUS DP, DPV1 master or DP device, S7 and PG/OP communication, time synchronization, diagnostics, reduced quantity structure.
About the CP 1542-5 ********** spare part ********* communications processor CP 1542-5 for connection of SIMATIC S7-1500 to PROFIBUS DP, DPV1 master or DP device, S7 and PG/OP communication, time synchronization, diagnostics, reduced quantity structure.
The Siemens CP 1542-5 (6GK7542-5FX00-0XE0) is a communications processor that connects a SIMATIC S7-1500 CPU to PROFIBUS DP at 9.6 kbit/s to 12 Mbit/s, operating as a DPV1 master for up to 32 DP devices or as a DP device itself. It supports S7 and PG/OP communication over a 9-pin Sub-D RS485 port, drawing 0.1 A typical from the backplane bus.
Certifications & Standards
- CCC-Ex
- EPD
Selection Notes
As a DPV1 master this CP handles up to 32 PROFIBUS DP devices with 2048 byte of input and output address space, while as a DP device it presents 240 byte each way to a higher-level master - covering both roles from one module. Choose the CP 1542-5 over the spare-part CM 1542-5 when a full published spec sheet and current TED data are needed for a new design rather than a like-for-like replacement.
Applications
Connects SIMATIC S7-1500 stations to PROFIBUS DP networks - as master for drives, remote I/O, and sensors, or as a device reporting into a plant-wide PROFIBUS master - in installations that still run PROFIBUS alongside newer PROFINET segments.
Specification
Full specification
General 2
| product type designation | CP 1542-5 ********** spare part ********* communications processor CP 1542-5 for connection of SIMATIC S7-1500 to PROFIBUS DP, DPV1 master or DP device, S7 and PG/OP communication, time synchronization, diagnostics, reduced quantity structure. |
|---|---|
| product brand name | SIMATIC NET |
Transfer rate 1
| transfer rate: at the 1st interface / according to PROFIBUS | 9.6 kbit/s ... 12 Mbit/s |
|---|
Interfaces 3
| number of interfaces / according to Industrial Ethernet | 0 |
|---|---|
| number of electrical connections: at the 1st interface / according to PROFIBUS | 1 |
| type of electrical connection: at the 1st interface / according to PROFIBUS | 9-pin Sub-D socket (RS485) |
Show all 63 specifications ↓ Show less ↑57 more values in Identification, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Performance data / PROFIBUS DP, Performance data / S7 communication, Performance data / multi-protocol mode, Performance data / telecontrol, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / time, Standards, specifications, approvals / hazardous environments / header, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 8
| Part number | 6GK7542-5FX00-0XE0 |
|---|---|
| Type designation | CP 1542-5 ********** spare part ********* communications processor CP 1542-5 for connection of SIMATIC S7-1500 to PROFIBUS DP, DPV1 master or DP device, S7 and PG/OP communication, time synchronization, diagnostics, reduced quantity structure. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169259958 |
Supply voltage, current consumption, power loss 5
| type of voltage / of the supply voltage | DC |
|---|---|
| supply voltage / 1 / from backplane bus | 15 V |
| relative symmetrical tolerance / at DC: at 15 V | 3% |
| consumed current: from backplane bus / at DC / at 15 V / typical | 0.1 A |
| power loss [W] | 1.5 W |
Ambient conditions 6
| ambient temperature: for vertical installation / during operation | 0 ... 40 °C |
|---|---|
| ambient temperature: for horizontally arranged busbars / during operation | 0 ... 60 °C |
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 5
| module format | Compact module S7-1500 single width |
|---|---|
| width | 35 mm |
| height | 142 mm |
| depth | 129 mm |
| fastening method: S7-1500 rail mounting | Yes |
Product features, product functions, product components / general 2
| number of units: per CPU / maximum | 8 |
|---|---|
| number of units: note | depending on CPU type |
Performance data / PROFIBUS DP 10
| service / as DP master: DPV1 | Yes |
|---|---|
| number of DP devices: on DP master / operable | 32 |
| data volume: of the address range of the inputs / as DP master / total | 2048 byte |
| data volume: of the address range of the outputs / as DP master / total | 2048 byte |
| data volume: of the address range of the inputs / per DP device | 244 byte |
| data volume: of the address range of the outputs / per DP device | 244 byte |
| service / as DP device: DPV0 | Yes |
| service / as DP device: DPV1 | Yes |
| data volume: of the address range of the inputs / as DP device / total | 240 byte |
| data volume: of the address range of the outputs / as DP device / total | 240 byte |
Performance data / S7 communication 1
| number of possible connections / for S7 communication: maximum | 16; depending on the system upper limit |
|---|
Performance data / multi-protocol mode 1
| number of active connections / with multi-protocol mode | 16 |
|---|
Performance data / telecontrol 1
| protocol / is supported: TCP/IP | No |
|---|
Product functions / management, configuration, engineering 3
| configuration software: required | STEP 7 Professional V12 SP1 (TIA Portal) or higher |
|---|---|
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 1
| product function / web-based diagnostics | Yes; via S7-1500 CPU |
|---|
Product functions / time 1
| product function / pass on time synchronization | Yes |
|---|
Standards, specifications, approvals / hazardous environments / header 1
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
|---|
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 68.56 kg |
| global warming potential [CO2 eq]: during manufacturing | 21.24 kg |
| global warming potential [CO2 eq]: during operation | 46.97 kg |
| global warming potential [CO2 eq]: after end of life | 0.35 kg |
Logistics 7
| Net weight | 0.339 kg |
|---|---|
| Package dimensions | 120 × 40 × 125 mm |
| Country of origin | DE |
| Shipping weight | 0.839 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
