- Part number
- 6GK7542-1AX00-0XE0

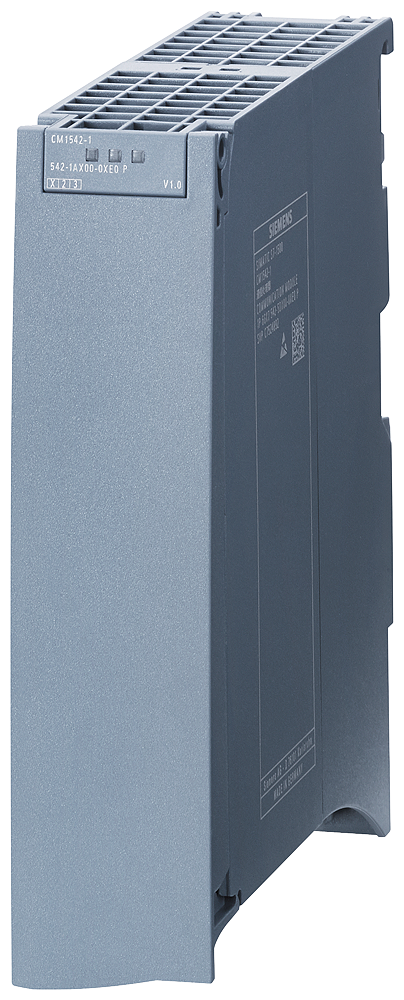

SIMATIC NETSiemens 6GK7542-1AX00-0XE0 SIMATIC S7-1500 CM 1542-1 PROFINET IO PLC Communication Module
Siemens CM 1542-1 PROFINET module for SIMATIC S7-1500, IO controller/device, 2x RJ45 10/100 Mbit/s
Description
About the 6GK7542-1AX00-0XE0
About the 6GK7542-1AX00-0XE0
The Siemens CM 1542-1 (6GK7542-1AX00-0XE0) is a communications module that connects a SIMATIC S7-1500 CPU to PROFINET as an IO controller or IO device, supporting TCP/IP, ISO-on-TCP, UDP, and S7 communication over two RJ45 ports at 10/100 Mbit/s. It adds IP broadcast/multicast, SNMPv1, and NTP time synchronization, and weighs 0.36 kg.
Selection Notes
As a spare part, this CM covers baseline PROFINET connectivity for an S7-1500 station - TCP/IP, ISO-on-TCP, and UDP open communication plus S7 communication as either an IO controller or IO device. Choose it when a station needs a second or replacement PROFINET port without the PROFIBUS DP interface the CM 1542-5 modules add.
Applications
Adds a PROFINET interface to SIMATIC S7-1500 stations exchanging data with other S7 controllers, HMI, or SCADA systems over TCP/IP or S7 communication.
Specification
Full specification
| Part number | 6GK7542-1AX00-0XE0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4019169230100 |
| Communication | PROFINET IO controller/device, TCP/IP, ISO-on-TCP, UDP, S7 communication, 2x RJ45 10/100 Mbit/s |
|---|
| Shipping weight | 0.86 kg |
|---|
| HS code | 85176200 |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| Series | SIMATIC NET |
|---|---|
| Product Type Designation | CM 1542-1 |
| Ethernet Interfaces | 2x RJ45 port, 10/100 Mbit/s |
| PROFINET Mode | IO Controller or IO Device |
| Protocols Supported | TCP/IP, ISO-on-TCP, UDP, S7 communication, SNMPv1, NTP |
| Net Weight | 0.36 kg |
From the manufacturer description; the values above take precedence.
Documents
Documents for 6GK7542-1AX00-0XE0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6GK7542-1AX00-0XE0
What is the HS code of 6GK7542-1AX00-0XE0 for customs?
The tariff (HS) code on file for 6GK7542-1AX00-0XE0 is 85176200.
What is the EAN of 6GK7542-1AX00-0XE0?
The EAN (GTIN) of 6GK7542-1AX00-0XE0 is 4019169230100.
Where does 6GK7542-1AX00-0XE0 ship from, and how fast?
6GK7542-1AX00-0XE0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
