Siemens 6GK5998-3GS00-2AC2 SCALANCE LPE9403 Local Processing Engine 4-Core ARM 4GB RAM Automation Component

% $-1,363.17

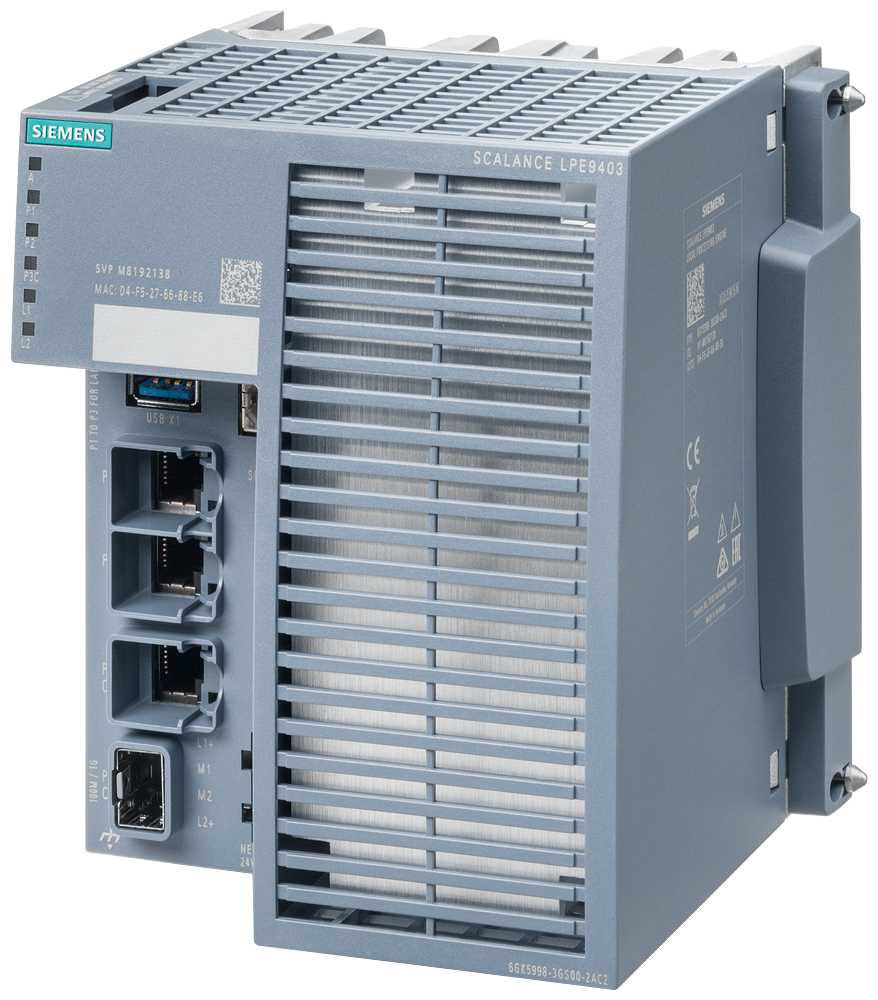

Siemens 6GK5998-3GS00-2AC2 SCALANCE LPE9403 local processing engine
Siemens 6GK5998-3GS00-2AC2 SCALANCE LPE9403 local processing engine

Siemens 6GK5998-3GS00-2AC2 SCALANCE LPE9403 Local Processing Engine 4-Core ARM 4GB RAM Automation Component

Brand: Siemens
Reference No: 6GK5998-3GS00-2AC2
Catalog No: 6GK5998-3GS00-2AC2
Series: SCALANCE X
Tariff Code (HS): 84715000
Rated Current: 0.66 A
Communication: 3x RJ45 + 1x RJ45/SFP combo, 10/100/1000 Mbit/s
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$1,363.17

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GK5998-3GS00-2AC2 (SCALANCE LPE9403) is a Local Processing Engine for edge computing at the machine, built on a 64-bit ARMv8 quad-core processor with 4 GB RAM, 40 GB eMMC storage, and pre-installed Debian Linux. It networks through three RJ45 ports plus one RJ45/SFP combo port, runs on redundant 24 VDC, and supports Docker containers for on-site data processing.

Technical Specifications

SKU 6GK5998-3GS00-2AC2
Brand Siemens
Series SCALANCE LPE
Product Designation LPE9403
EAN 4047622829837
Processor 64-bit ARMv8 A53, 4-core, 1.6 GHz
RAM 4 GB
Storage 38 GiB eMMC (pSLC)
Operating System Debian Linux, 4GB swap, Docker support
Ethernet Ports 3x 10/100/1000 Mbit/s RJ45 with securing collar
Combo Port 1x RJ45/SFP, 100 or 1000 Mbit/s
USB Ports 1x USB-A, 1x USB-B (USB 3.0)
Removable Storage CLP slot
Supply Voltage 24 VDC (19.2 to 28.8 V), redundant supply input
Power Loss 16 W rated, 10.56 W typical at 24VDC
Current Consumption 0.4 A typical, 0.66 A maximum
Power Connection 4-pole terminal block, input fuse 3.15 A / 125 V
Design Compact
Dimensions (W x H x D) 134 x 147 x 127 mm
Net Weight 1.6 kg
Mounting 35 mm DIN rail, S7-300 rail, S7-1500 rail, wall mounting
Operating Temperature -40 to 60 C
Storage Temperature -40 to 85 C
Transport Temperature -40 to 85 C
Relative Humidity max 95%, no condensation
Protection Class IP20
MTBF 29 years
Protocols Supported SSH, FTP, LLDP, DCP, NTP, SNMP v2/v3, SNTP, SSL
Diagnostics SysLog, CLI, web-based management, MIB support, PROFINET IO diagnosis, DHCP client
EMC Emission EN 61000-6-4 (Class A)
EMC Immunity EN 61000-6-2
Country of Origin Germany
HS Code 84715000

Certifications & Standards

  • CE
  • C-Tick
  • KC
  • EN 50121-4
  • RCM
  • EAC
  • EPD

Selection Notes

LPE9403 pairs Debian Linux with a general-purpose Docker runtime, making it the pick when the edge application needs a standard Linux container environment rather than Siemens' managed Industrial Edge runtime. The redundant 24 VDC input and DIN or S7-rail mounting let it sit directly on the same rail as the PLC it feeds, and the RJ45/SFP combo port keeps the fiber uplink optional rather than mandatory. Its -40 to 60C operating range and IP20 rating fit a standard control cabinet, not an open industrial floor.

Technical Details

Short Description
SCALANCE LPE9403 edge engine, 4-core ARM, 4GB RAM, 40GB eMMC, Debian Linux, 3x RJ45.
Rated Current (Ampere)
0.66 A
Mounting Type
35 mm DIN rail, S7-300/S7-1500 rail, wall mounting
Protection Type
IP20
Catalog No
6GK5998-3GS00-2AC2
Standards
/ CE marking, / C-Tick, / KC approval, / railway application in accordance with EN 50121-4, / Regulatory Compliance Mark (RCM), / EAC approval, Environmental Product Declaration
Delivery Date (Days)
10-15 days
Model Number
6GK5998-3GS00-2AC2
Tariff Code
84715000
