- Part number
- 6GF3540-8EA03-0LL0
- Model no
- MV500 E-focus C-mount lens, 25 mm
Siemens has announced the end of 6GF3540-8EA03-0LL0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.
SIMATIC MVSiemens 6GF3540-8EA03-0LL0 SIMATIC MV500 E-focus C-Mount Lens 25mm Optical Code Reader
Siemens 6GF3540-8EA03-0LL0 25 mm E-focus C-mount lens for SIMATIC MV500 code readers.
Description
About the MV500 E-focus C-mount lens, 25 mm
About the MV500 E-focus C-mount lens, 25 mm

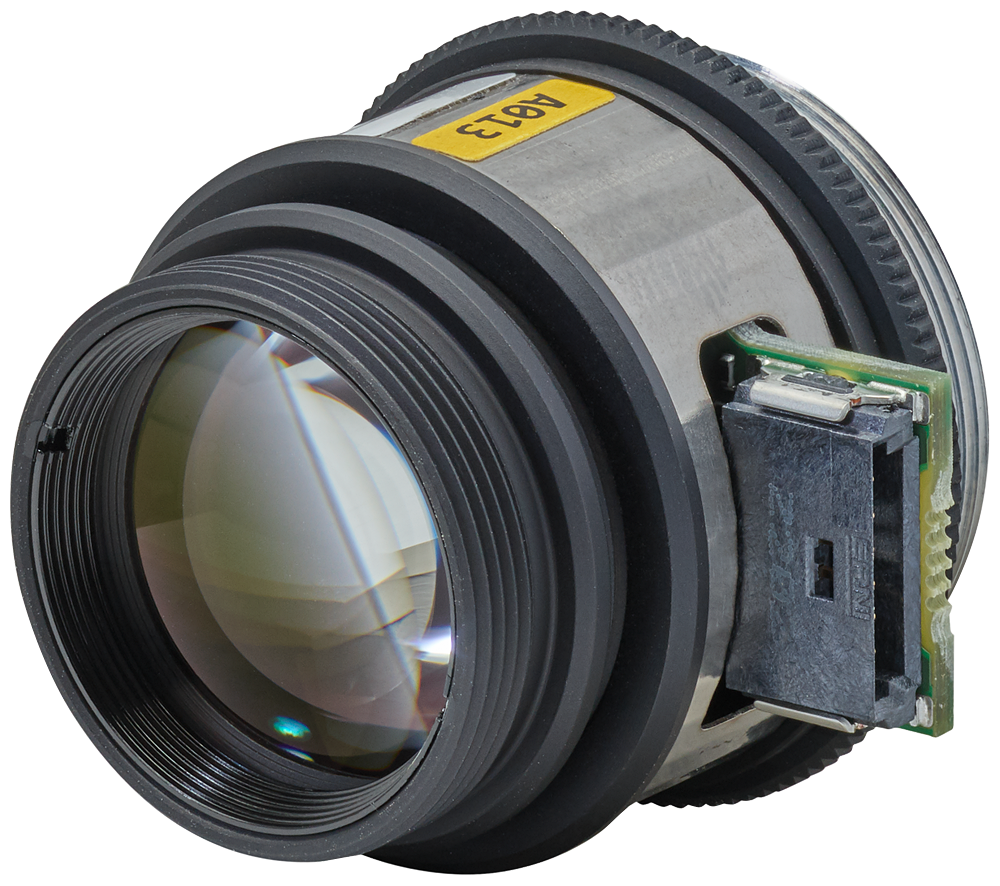

The Siemens 6GF3540-8EA03-0LL0 is a 25 mm C-mount lens for the SIMATIC MV500 optical code reader family, with an electronically adjustable liquid-lens focus and a fixed f/8 aperture. It connects to the camera through a single internal plug-in connector, ships as a ready-to-fit set with the lens and its own cable, and weighs 0.1 kg with a 34.2 mm housing diameter.
Selection Notes
This 25 mm focal length suits closer working distances than a longer C-mount lens, and because focus is adjusted electronically rather than by hand, it can be refocused without reaching the camera if the read distance changes on the line. It fits only MV500-family readers (6GF3540-0CD10/-0GE10, 6GF3550-0CD10/-0GE10, 6GF3560-0LE10/-HE10) - verify the exact reader model before ordering, since lenses from other camera lines don't share this electronic-focus interface.
Specification
Full specification
General 5
| product type designation | MV500 E-focus C-mount lens, 25 mm |
|---|---|
| product description | C mount lens, 25 mm focal distance with electronic focus, set aperture 8 E-focus lens 25 mm Only for MV500 devices (MLFB: 6GF3540-0CD10, -0GE10, 6GF3550-0CD10, -0GE10; 6GF3560-0LE10, -HE10; EDMUND lens with liquid lens focal length 25 mm; focus electrically adjustable; fixed aperture; scope of delivery: lens and cable . |
| product brand name | SIMATIC MV |
| suitability for use | Swappable lens with C-mount connection |
| suitability for operation | lens for MV500 |
Electrical data 2
| number of electrical connections | 1 |
|---|---|
| type of electrical connection | Internal plug-in connector |
Mechanical data 1
| color | black |
|---|
Show all 30 specifications ↓ Show less ↑22 more values in Identification, Ambient conditions, Design, dimensions and weights, Logistics.
Identification 10
| Part number | 6GF3540-8EA03-0LL0 |
|---|---|
| Type designation | MV500 E-focus C-mount lens, 25 mm |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622583586 |
| ETIM class | EC002750 |
| eCl@ss | 27273603 |
Ambient conditions 3
| ambient temperature: during operation | 0 ... 50 °C |
|---|---|
| ambient temperature: during storage | -30 ... +70 °C |
| ambient temperature: during transport | -30 ... +70 °C |
Design, dimensions and weights 2
| height | 28 mm |
|---|---|
| diameter | 34.2 mm |
Logistics 7
| Net weight | 0.1 kg |
|---|---|
| Package dimensions | 34 × 28 × 34 mm |
| Country of origin | Vietnam |
| Shipping weight | 0.6 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GF3540-8EA03-0LL0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the MV500 E-focus C-mount lens, 25 mm
What is the HS code of MV500 E-focus C-mount lens, 25 mm for customs?
The tariff (HS) code on file for MV500 E-focus C-mount lens, 25 mm is 90021900.
What is the EAN of MV500 E-focus C-mount lens, 25 mm?
The EAN (GTIN) of MV500 E-focus C-mount lens, 25 mm is 4047622583586.
Where does MV500 E-focus C-mount lens, 25 mm ship from, and how fast?
MV500 E-focus C-mount lens, 25 mm ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
