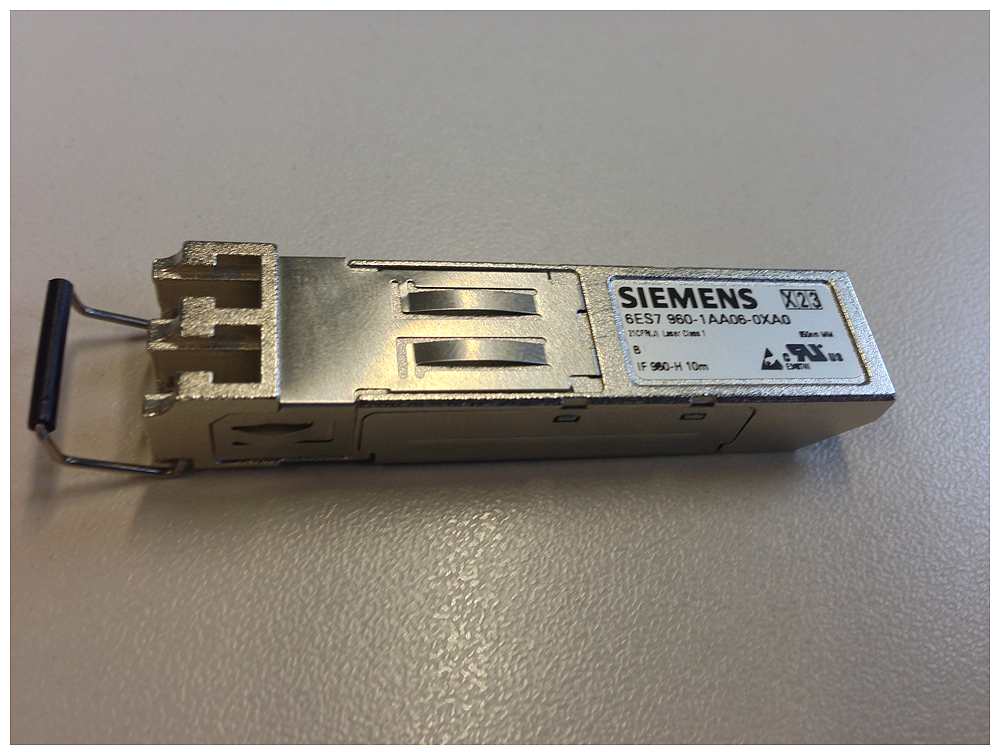

SIMATIC S7-400Siemens 6ES7960-1AA06-0XA0 SIMATIC S7-400H Synchronization Module V6 PLC Accessory
SIMATIC S7-400H synchronization module V6 for patch cable up to 10 m, 220 mA, 14 g.
Description
About the 6ES7960-1AA06-0XA0
About the 6ES7960-1AA06-0XA0
The Siemens 6ES7960-1AA06-0XA0 is a synchronization module V6 for the SIMATIC S7-400H fault-tolerant CPU, paired with an FOC patch cable up to 10 m long. It plugs into the CPU's sync-link slot and carries the redundancy link between the two H-system racks, drawing a maximum of 220 mA and dissipating 0.77 W typical at only 14 g.
Selection Notes
This V6 module is built for the short-range patch-cable link, up to 10 m between the two H-CPU racks, which covers same-room and adjacent-cabinet installations. Where the redundant racks are further apart, in separate rooms or buildings, the routed-cable variant of this module is the correct choice instead, since it is rated for links up to 10 km.
Specification
Full specification
| Part number | 6ES7960-1AA06-0XA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169256384 |
| Communication | Fiber-optic (FOC) redundancy synchronization link |
|---|
| Shipping weight | 0.556 kg |
|---|
| HS code | 85176200 |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| Series | SIMATIC S7-400H |
|---|---|
| Product Designation | Synchronization Module V6 |
| Compatible Cable | Patch cable up to 10 m |
| Current Consumption, max. | 220 mA |
| Power Loss, typ. | 0.77 W |
| Dimensions (W x H x D) | 13 mm x 14 mm x 58 mm |
| Weight, approx. | 14 g |
| Country of Origin | TW |
From the manufacturer description; the values above take precedence.
Documents
Documents for 6ES7960-1AA06-0XA0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6ES7960-1AA06-0XA0
What is the HS code of 6ES7960-1AA06-0XA0 for customs?
The tariff (HS) code on file for 6ES7960-1AA06-0XA0 is 85176200.
What is the EAN of 6ES7960-1AA06-0XA0?
The EAN (GTIN) of 6ES7960-1AA06-0XA0 is 4019169256384.
Where does 6ES7960-1AA06-0XA0 ship from, and how fast?
6ES7960-1AA06-0XA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
