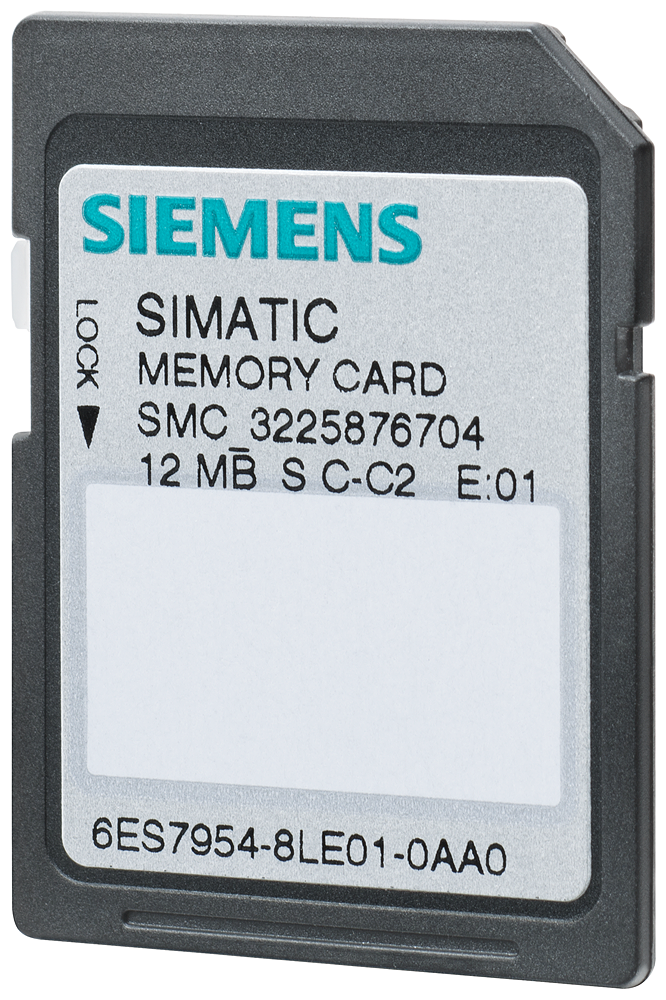

SIMATICSiemens 6ES7954-8LE03-0AA0 SIMATIC S7 Flash Memory Card 12MB S7-1200/1500 PLC Memory Card
SIMATIC S7 flash memory card, 12 MB, 3.3V, 500,000 write cycles, for S7-1200/1500 and SINAMICS.
Description
About the 6ES7954-8LE03-0AA0
About the 6ES7954-8LE03-0AA0
The Siemens SIMATIC S7 memory card 6ES7954-8LE03-0AA0 is a 12 Mbyte, 3.3V Flash-EPROM card compatible with SIMATIC S7-1200/S7-1500 CPUs and SINAMICS drives, rated for a minimum 500,000 write/erase cycles. Data retention is at least 10 years when fewer than 50,000 write cycles have been used, dropping to 1 year past 450,000 cycles.
Selection Notes
This is a Flash-EPROM card, not RAM — program and data content survive power loss without a buffer battery, unlike the RAM cards used on S7-400 CPUs. Its data retention drops from 10 years to 1 year once the card has logged more than 450,000 of its rated 500,000 write/erase cycles, which matters for applications that write recipe or data-log blocks to the card frequently rather than storing the user program just once.
Applications
Used as the program/data memory card for SIMATIC S7-1200 and S7-1500 CPUs, and for SINAMICS drives that take the same 3.3V flash card format.
Specification
Full specification
| Part number | 6ES7954-8LE03-0AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047623409021 |
| Shipping weight | 0.528 kg |
|---|
| HS code | 85235110 |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| Series | SIMATIC S7-1x00 / SINAMICS |
|---|---|
| Memory Type | Flash-EPROM, 3.3V |
| Memory Size | 12 Mbyte |
| Write/Erase Cycles, min. | 500,000 |
| Data Retention | 10 years (under 50,000 cycles used); 1 year (over 450,000 cycles used) |
| Dimensions (W x H x D) | 24 x 32 x 2.1 mm |
| Weight | 3 g |
| Country of Origin | Germany |
From the manufacturer description; the values above take precedence.
Documents
Documents for 6ES7954-8LE03-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6ES7954-8LE03-0AA0
What is the HS code of 6ES7954-8LE03-0AA0 for customs?
The tariff (HS) code on file for 6ES7954-8LE03-0AA0 is 85235110.
What is the EAN of 6ES7954-8LE03-0AA0?
The EAN (GTIN) of 6ES7954-8LE03-0AA0 is 4047623409021.
Where does 6ES7954-8LE03-0AA0 ship from, and how fast?
6ES7954-8LE03-0AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
