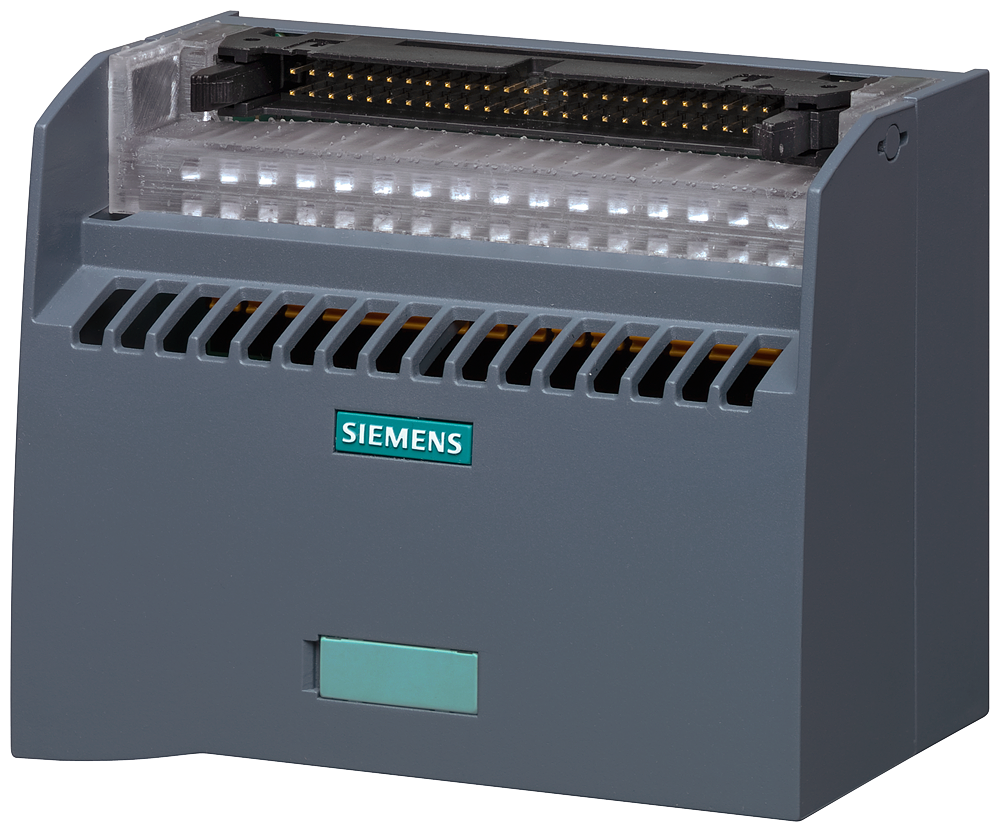

The Siemens 6ES7924-2AA20-0BC0 is a SIMATIC TOP connect TP1 connection module with 32 channels and push-in terminals with LED status indication, built for wiring SIMATIC S7-1500 digital I/O modules. It handles up to 1A per pin and 2A total current at 24V DC, and is rated ATEX, IECEx and UKEX for use in hazardous areas.
The 32-channel push-in design with a per-channel LED lets a technician see which I/O point is energized without a multimeter, which speeds up commissioning and fault-finding on a fully wired S7-1500 digital I/O rack. The 50-pole IDC field connector and 30m maximum wire length between the front connector module and this connection module fits point-to-point cabinet wiring rather than long field runs. With ATEX, IECEx and UKEX Zone ratings alongside cULus, this module is one of the few TOP connect parts qualified for use on the panel side of a hazardous-area installation, not just a general-purpose industrial cabinet.
Fully modular field wiring for SIMATIC S7-1500 digital I/O in machine and process control panels, including panels installed in ATEX/IECEx/UKEX Zone 2 hazardous areas.
| target system | SIMATIC S7-1500 |
|---|---|
| suitability for use | Digital I/O modules |
| product brand name | SIMATIC Top connect |
| product type designation | Fully modular connection |
| product designation | Connection module |
| operating voltage: at DC / rated value | 24 V |
|---|---|
| operating voltage: rated value | 24 V |
| operating voltage: at DC / maximum | 28.8 V |
| ampacity / per pin / maximum | 1 A |
| continuous current / at DC / per signal cable / maximum | 1 A |
| total current / maximum | 2 A |
| display version: as status display of the inputs/outputs | LED yellow for "active high" |
| display version: for power supply / power LED | Yes; green for 24 V DC O.K. |
| product function / infeed function | Yes |
| product component: PE connection | No |
| product component: shield connection | No |
| product component: disconnector | No |
| product feature / cross-connectable | No |
| number of terminals | 48; 32 x I/O; 8 x L+, 8 x M |
|---|---|
| number of channels | 32 |
| type of connecting terminal | push-in |
| position / of the terminal | Top |
| number of terminal levels | 1 |
| design of terminal / terminal levels internally linked | No |
| type of electrical connection / for connecting cable | Plug-in connection |
| number of poles / at the 1st interface | 50; IDC connector with installed strain relief for the connecting cable |
| number of the plug contacts / of the electrical connection | 1 |
| wire length / maximum | 30 m; between front connector module and Connection module |
| type of connectable conductor cross-sections / solid | No |
| connectable conductor cross-section: for flexible conductor / with core end processing | 0.2 ... 2.5 mm2; End sleeve according to DIN 46228/1 or DIN 46228/4 with plastic collar |
| connectable conductor cross-section: stranded | 0.2 ... 2.5 mm2 |
| connectable conductor cross-section: finely stranded / without core end processing | 0.2 ... 2.5 mm2 |
| connectable conductor cross-section: finely stranded / with core end processing | 0.2 ... 2.5 mm2 |
| number of cables / per connection | 2; Connection for internal system: Combination of 1 or 2 Wires until the sum total of cross sections be achieved in a ferrule. |
| width of screwdriver blade | 3.5 mm |
| Part number | 6ES7924-2AA20-0BC0 |
|---|---|
| Type designation | Fully modular connection |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515153832 |
| ETIM class | EC000900 |
| eCl@ss | 27250112 |
| certificate of suitability: cULus approval | Yes |
|---|---|
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ATEX | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: UKEX | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| design tested acc. to type of protection / EEx e | Yes |
| overvoltage category | 2 |
| degree of pollution | 2 |
| combustibility class according to UL 94 | V1 |
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 141.3 kg |
| global warming potential [CO2 eq]: during manufacturing | 1.7 kg |
| global warming potential [CO2 eq]: during operation | 139.5 kg |
| global warming potential [CO2 eq]: after end of life | 0.16 kg |
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 |
| width × height × depth | 100 mm × 76 mm × 60 mm |
|---|---|
| mounting type | DIN rail 35 mm, DIN rail 15 mm |
| mounting position | any |
| height / with lowest-profile installation | 60 mm |
| insulation material | other |
| color: of the enclosure | grey |
| color: of the light source | other |
| product component / required / end cover plate | No |
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
|---|---|
| marketing text | The TP1 connection module for a 1-wire connection with 32 channels and potential connection with push-in terminals with LED for signalling forms the interface between the connecting cables of the peripherals brought in from the field and the SIMATIC S7. This is mounted on the DIN rail and, thanks to its functionality with push-in terminals, is precisely adapted to the respective task. This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module. |
| eClass | 16 27-25-01-12 |
|---|---|
| ETIM | 10 EC000900 |
| UNSPSC | 15 39-12-14-10 |
| Approvals / Certificates | For use in hazard- |
| General Product Approval | ous locations |
| Net weight | 0.21 kg |
|---|---|
| Country of origin | Romania |
| Shipping weight | 0.71 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of Fully modular connection is 2 A.
The rated operational voltage of Fully modular connection is 24 V DC.
The tariff (HS) code on file for Fully modular connection is 85366990.
The EAN (GTIN) of Fully modular connection is 4025515153832.
