Part number
6ES7924-2AA20-0AA0
Model no
Fully modular connection
$47.61 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC TOP connect

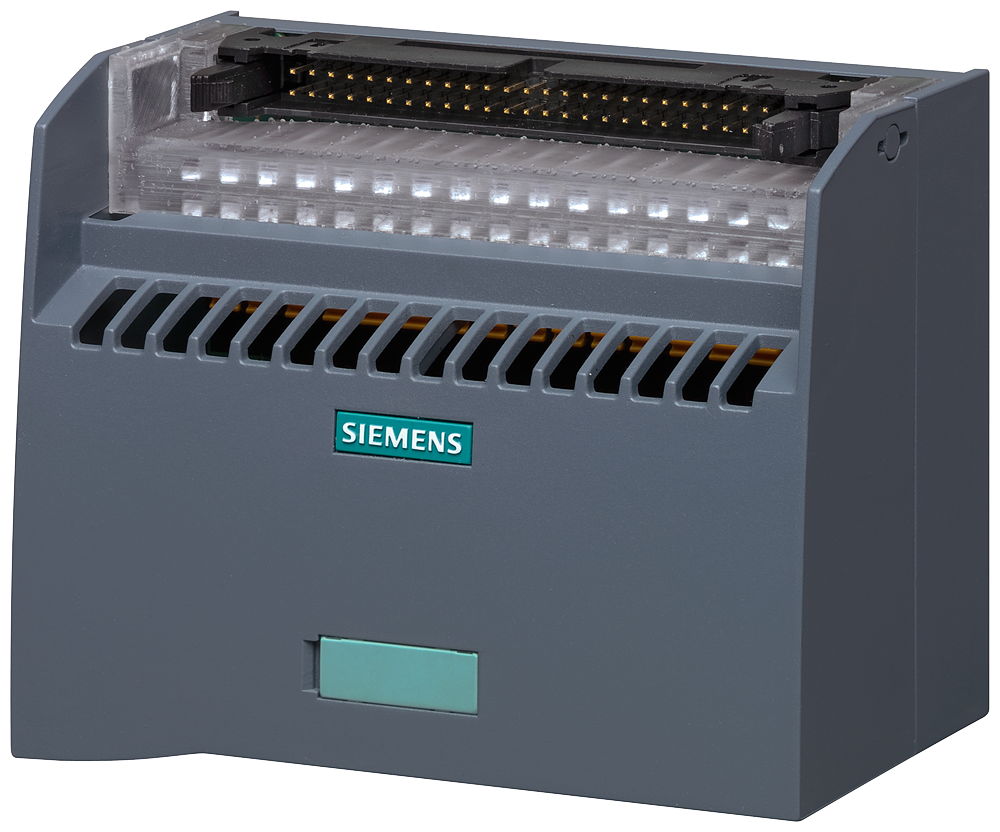

Siemens 6ES7924-2AA20-0AA0 SIMATIC TOP Connect TP1 32-Channel Screw PLC Connection Module

SIMATIC TOP connect TP1 module: 32 channels, screw terminals, ATEX/IECEx/UKEX rated for S7-1500.

Rated current
2 A
Rated operational voltage
24 V AC
EAN
4025515153801
Description

About the Fully modular connection

The Siemens 6ES7924-2AA20-0AA0 is a SIMATIC TOP connect TP1 connection module with 32 channels and screw terminals without LED, built for wiring SIMATIC S7-1500 digital I/O modules. It handles up to 1 A per pin and 2 A total current at 24 V DC (max 50 V), and carries ATEX, IECEx and UKEX hazardous-area ratings.

Certifications & Standards

  • cULus
  • IECEx
  • ATEX
  • ULhazloc
  • UKEX
  • CCC-Ex
  • EEx e
  • Environmental Product Declaration

Selection Notes

Screw terminals hold a 0.5-2.5 mm2 conductor at a specified 0.4-0.5 N.m torque, which suits panels where field wiring needs to be checked and re-torqued during maintenance. Without status LEDs, this variant keeps the enclosure at its base 100 mm width; choose the LED version instead if per-channel diagnostics at the terminal block are worth the added cost. ATEX, IECEx and UKEX ratings alongside cULus make it usable on the panel side of a hazardous-area installation, not just a general-purpose cabinet.

Applications

Fully modular field wiring for SIMATIC S7-1500 digital I/O in machine and process control panels, including panels in ATEX/IECEx/UKEX Zone 2 hazardous areas.

Specification

Full specification

81 values · Last verified 01 Nov 2026

General 5

target system SIMATIC S7-1500
suitability for use Digital I/O modules
product brand name SIMATIC Top connect
product type designation Fully modular connection
product designation Connection module

Electrical data 11

operating voltage: at DC / rated value 24 V
operating voltage: rated value 50 V
operating voltage: at DC / maximum 50 V
ampacity / per pin / maximum 1 A
continuous current / at DC / per signal cable / maximum 1 A
total current / maximum 2 A
product function / infeed function Yes
product component: PE connection No
product component: shield connection No
product component: disconnector No
product feature / cross-connectable No

Connection method 17

number of terminals 48; 32 x I/O; 8 x L+, 8 x M
number of channels 32
type of connecting terminal Screw-type terminal
position / of the terminal Top
number of terminal levels 1
design of terminal / terminal levels internally linked No
type of electrical connection / for connecting cable Plug-in connection
number of poles / at the 1st interface 50; IDC connector with installed strain relief for the connecting cable
number of the plug contacts / of the electrical connection 1
wire length / maximum 30 m; between front connector module and Connection module
type of connectable conductor cross-sections / solid No
connectable conductor cross-section: for flexible conductor / with core end processing 0.5 ... 2.5 mm2; End sleeve according to DIN 46228/1
connectable conductor cross-section: stranded 0.5 ... 2.5 mm2
connectable conductor cross-section: finely stranded / with core end processing 0.5 ... 2.5 mm2
number of cables / per connection 2; Connection for internal system: Combination of 1 or 2 Wires until the sum total of cross sections be achieved in a ferrule.
width of screwdriver blade 3.5 mm
tightening torque 0.4 ... 0.5 N·m
Show all 81 specifications ↓ Show less ↑48 more values in Identification, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Ambient conditions, Mechanical data, Additional information, EClass 12 27-14-11-28, Logistics.

Identification 10

Part number 6ES7924-2AA20-0AA0
Type designation Fully modular connection
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4025515153801
ETIM class EC000900
eCl@ss 27250112

Standards, specifications, approvals 10

certificate of suitability: cULus approval Yes
certificate of suitability: IECEx Yes
certificate of suitability: ATEX Yes
certificate of suitability: ULhazloc approval Yes
certificate of suitability: UKEX Yes
certificate of suitability: CCC / for hazardous zone according to GB standard Yes
design tested acc. to type of protection / EEx e Yes
overvoltage category 2
degree of pollution 2
combustibility class according to UL 94 V1

Standards, specifications, approvals / Environmental Product Declaration 5

Environmental Product Declaration Yes
global warming potential [CO2 eq]: total 90.3 kg
global warming potential [CO2 eq]: during manufacturing 2.5 kg
global warming potential [CO2 eq]: during operation 87.5 kg
global warming potential [CO2 eq]: after end of life 0.23 kg

Ambient conditions 2

ambient temperature: during operation 0 ... 60 °C
ambient temperature: during storage -40 ... +70

Mechanical data 8

width × height × depth 100 mm × 76 mm × 60 mm
mounting type DIN rail 35 mm, DIN rail 15 mm
mounting position any
height / with lowest-profile installation 60 mm
insulation material other
color: of the enclosure grey
color: of the light source without
product component / required / end cover plate No

Additional information 2

other information Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
marketing text The TP1 connection module for a 1-wire connection with 32 channels and a potential connection with screw terminals without LED for signalling forms the interface between the connection cables of the peripherals coming from the field and the SIMATIC S7. This is mounted on the DIN rail and is exactly adapted to the respective task thanks to its functionality with screw terminals. This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module.

EClass 12 27-14-11-28 5

eClass 9.1 27-14-11-28
ETIM 10 EC000900
UNSPSC 15 39-12-14-10
Approvals / Certificates For use in hazard-
General Product Approval ous locations

Logistics 6

Net weight 0.31 kg
Country of origin Romania
Shipping weight 0.81 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026
