Siemens 6ES7924-0CC20-0AC0 SIMATIC TOP Connect TPA S7-1500 Push-In Analog Module

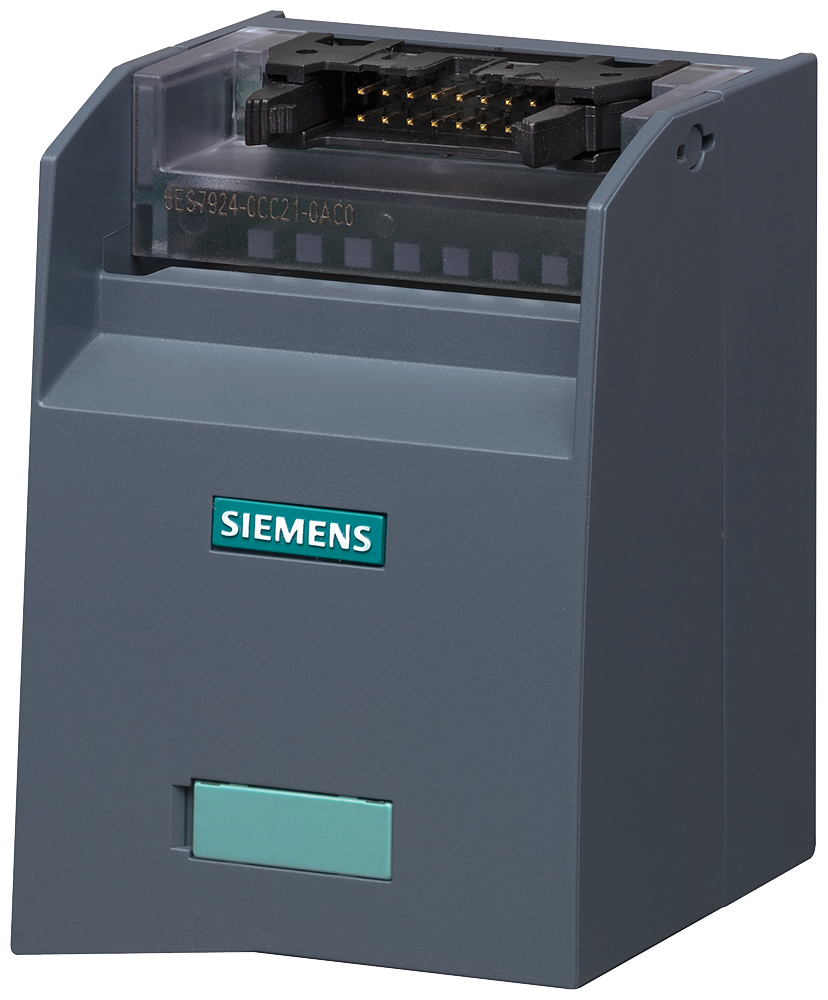

The Siemens 6ES7924-0CC20-0AC0 is a SIMATIC TOP connect TPA connection module with a 3-tier, 30-terminal push-in block for analog modules on a SIMATIC S7-1500, with no signalling LED. It links analog field wiring to the S7-1500 front connector module through a 16-pole IDC cable, mounted on a 35 mm DIN rail.

Technical Specifications

Certifications & Standards

• cULus
• EPD

Selection Notes

The 3-tier, 30-terminal block gives analog I/O the extra connection points that shielded, twisted-pair signal wiring needs beyond a standard digital TP module, and push-in terminals accept 0.2 ... 2.5 mm² conductors with ferrules to DIN 46228/1 or /4 for faster assembly. This variant is S7-1500-specific — the equivalent S7-300 TPA module uses screw terminals instead, so confirm the target controller family before ordering. Without an LED, wiring integrity for analog channels is verified at the controller or engineering tool rather than at the terminal block.
