Part number
6ES7924-0BE20-0BA0
Model no
Fully modular connection
$161.46 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC TOP connect

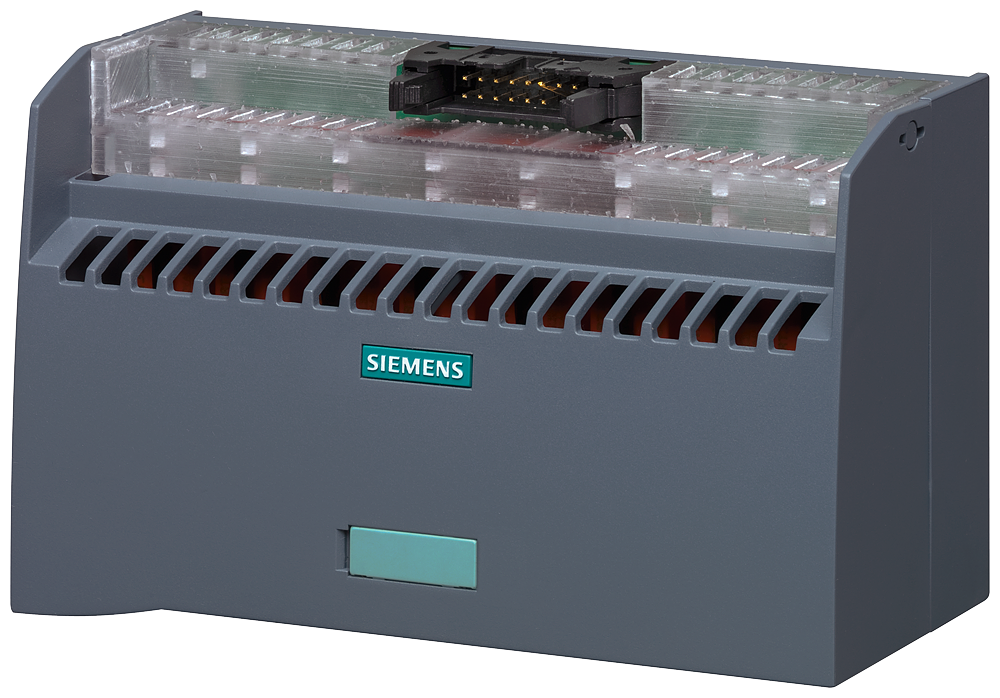

Siemens 6ES7924-0BE20-0BA0 SIMATIC TOP Connect TPRi 230V AC Relay Connection Module

Siemens TPRi relay module, 8 channels, 230V AC input to 24V DC/0.05A NO contacts, screw terminals with LED.

Rated current
0.05 A
Rated operational voltage
230 V AC
Display
LED status indicator (channel + power)
EAN
4025515153740
Description

About the Fully modular connection

The Siemens 6ES7924-0BE20-0BA0 is a SIMATIC TOP connect TPRi relay connection module that converts eight 230 V AC digital input signals to 24 V DC/0.05 A normally-open relay contacts for a SIMATIC S7-300/1500. Screw terminals with a status LED wire the field side, and a 16-pole IDC connector links the module to the front connector module on a 35 mm DIN rail.

Certifications & Standards

  • cULus
  • EPD

Selection Notes

Each relay stage isolates a 230 V AC field signal from the 24 V DC input side, so this module belongs where the plant wiring runs mains voltage but the PLC input card only accepts 24 V DC. The relay’s 10,000,000-cycle mechanical and 3,000,000-cycle electrical endurance (at 230 V AC/50 mA/cos phi = 1) covers digital input duty but is not rated for continuous high-frequency switching, so keep the 8.33 operations/s ceiling in mind for fast-cycling signals. The yellow per-channel LED and green power LED let a technician confirm both the AC input state and the 24 V DC supply at the terminal block.

Specification

Full specification

81 values · Last verified 01 Nov 2026

General 5

target system SIMATIC S7-300 / 1500
suitability for use Digital input module
product brand name SIMATIC Top connect
product type designation Fully modular connection
product designation Connection module

Electrical data 18

operating voltage: at AC / rated value 230 V; for coil
ampacity / per pin / maximum 1 A
continuous current / at DC / per signal cable / maximum 0.05 A
switching capacity current / of the contacts / with resistive load / maximum 0.05 A; for 24V AC; recommended minimal load larger than 5mA
relay design For input signals
type of switching contact Single contact, NO contact
number of relay outputs 8
operating frequency / maximum 8.33 1/s
mechanical service life (operating cycles) / typical 10 000 000
electrical endurance (operating cycles) / typical 3 000 000; for AC 230 V/50 mA/Cos phi = 1
display version: as status display of the inputs/outputs LED yellow for "active high"
display version: for power supply / power LED Yes; green for 24 V DC O.K.
product function / infeed function Yes
product component: PE connection No
product component: shield connection No
product component: disconnector No
product component: protective wiring No
product feature / cross-connectable No

Connection method 17

number of terminals 20; 8 x I x 2; 2 x L+, 2 x M
number of channels 8
type of connecting terminal Screw-type terminal
position / of the terminal Top
number of terminal levels 1
design of terminal / terminal levels internally linked No
type of electrical connection / for connecting cable Plug-in connection
number of poles / at the 1st interface 16; IDC connector with installed strain relief for the connecting cable
number of the plug contacts / of the electrical connection 1
wire length / maximum 30 m; between front connector module and Connection module
type of connectable conductor cross-sections / solid No
connectable conductor cross-section: for flexible conductor / with core end processing 0.5 ... 2.5 mm2; End sleeve according to DIN 46228/1
connectable conductor cross-section: stranded 0.5 ... 2.5 mm2
connectable conductor cross-section: finely stranded / with core end processing 0.5 ... 2.5 mm2
number of cables / per connection 2; Connection for internal system: Combination of 1 or 2 Wires until the sum total of cross sections be achieved in a ferrule.
width of screwdriver blade 3.5 mm
tightening torque 0.4 ... 0.5 N·m
Show all 81 specifications ↓ Show less ↑41 more values in Identification, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Ambient conditions, Mechanical data, Additional information, Version Classification, Logistics.

Identification 10

Part number 6ES7924-0BE20-0BA0
Type designation Fully modular connection
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4025515153740
ETIM class EC000900
eCl@ss 27250112

Standards, specifications, approvals 5

certificate of suitability: cULus approval Yes
design tested acc. to type of protection / EEx e No
overvoltage category 2
degree of pollution 2
combustibility class according to UL 94 V1

Standards, specifications, approvals / Environmental Product Declaration 5

Environmental Product Declaration Yes
global warming potential [CO2 eq]: total 287.5 kg
global warming potential [CO2 eq]: during manufacturing 2.8 kg
global warming potential [CO2 eq]: during operation 284.4 kg
global warming potential [CO2 eq]: after end of life 0.26 kg

Ambient conditions 2

ambient temperature: during operation 0 ... 60 °C
ambient temperature: during storage -40 ... +70

Mechanical data 8

width × height × depth 130 mm × 76 mm × 60 mm
mounting type DIN rail 35 mm, DIN rail 15 mm
mounting position any
height / with lowest-profile installation 60 mm
insulation material other
color: of the enclosure grey
color: of the light source other
product component / required / end cover plate No

Additional information 2

other information Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
marketing text The TPRi relay connection module with relays for connecting 8 digital input signals (230VAC) and potential feed terminals (24VDC). For potential matching to 24VDC input signal. With screw terminals and LED for signalling, it forms the interface between the connecting cables of the peripherals coming from the field and the SIMATIC S7. This is mounted on the DIN rail and, thanks to its functionality with screw terminals, is exactly adapted to the respective task. This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module.

Version Classification 3

eClass 16 27-25-01-12
ETIM 10 EC000900
UNSPSC 15 39-12-23-31

Logistics 6

Net weight 0.35 kg
Country of origin Romania
Shipping weight 0.85 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026
