Siemens 6ES7923-5BC00-0DB0 SIMATIC S7-1500 Connecting Cable 50-Pin Shielded 2.0m PLC Connection Module

% $-77.52

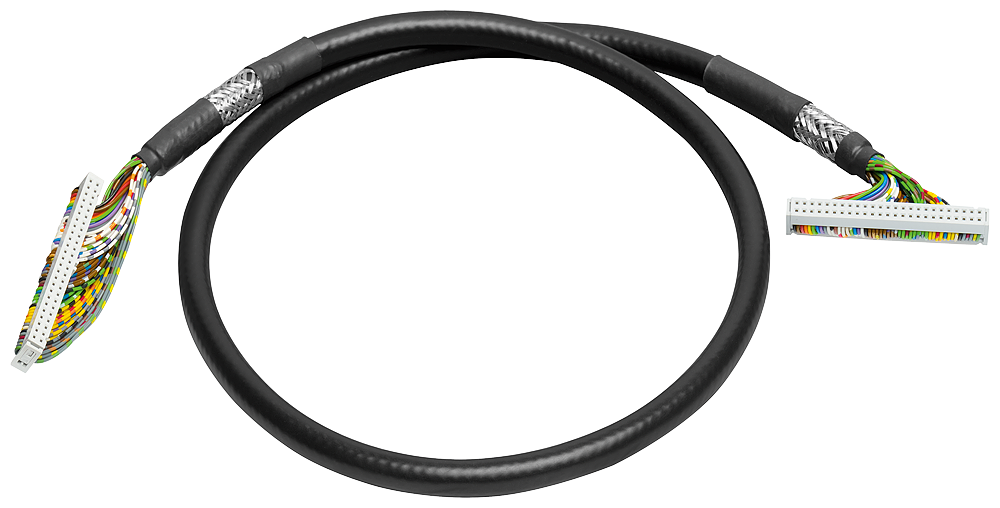

Siemens 6ES7923-5BC00-0DB0 SIMATIC S7-1500 shielded 50-pin connecting cable, 2.0m
Siemens 6ES7923-5BC00-0DB0 SIMATIC S7-1500 shielded 50-pin connecting cable, 2.0m

Siemens 6ES7923-5BC00-0DB0 SIMATIC S7-1500 Connecting Cable 50-Pin Shielded 2.0m PLC Connection Module

Brand: Siemens
Reference No: 6ES7923-5BC00-0DB0
Catalog No: 6ES7923-5BC00-0DB0
Series: SIMATIC S7-1500
Tariff Code (HS): 85444290
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$77.52

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7923-5BC00-0DB0 is a pre-assembled, shielded 50-pin round cable for the SIMATIC S7-1500 TOP Connect system, linking a front connector module to a connection module over 2.0 m. Its braided shield supports connection modules with mixed digital and analog I/O across 32 channels of 0.14 mm² conductors terminated in IDC connectors, rated for 24 V DC operation up to 60 V DC maximum.

Technical Specifications

SKU 6ES7923-5BC00-0DB0
Brand Siemens
Series SIMATIC S7-1500
EAN 4025515153191
Target System SIMATIC S7-1500
Suitability for Use Digital and analog I/O modules
Product Designation Pre-assembled round cable
Cable Design Round cable
Number of Channels 32
Cable Length 2.0 m
Conductor Cross Section 0.14 mm²
Number of Poles 50
Connector Type IDC connector
Shielding Braided shield
Rated Operating Voltage (DC) 24 V
Maximum Operating Voltage (DC) 60 V
Outer Cable Diameter 11 mm
Cable Sheath Material PVC
Cable Sheath Color Black
Net Weight 0.19 kg
Ambient Temperature, Operation 0 ... 60 °C
Ambient Temperature, Storage -30 ... +70 °C
Country of Origin Romania (RO)
HS Code 85444290
Global Warming Potential, Total (EPD) 5.137 kg CO2 eq
Global Warming Potential, Manufacturing 4.996 kg CO2 eq
Global Warming Potential, End of Life 0.012 kg CO2 eq

Selection Notes

The braided shield distinguishes this cable from the unshielded variant: choose it when the connection module also carries analog channels, since a continuous shield reduces coupled noise on the analog signal path, while the digital-only cable omits it. Match the 2.0 m length to the physical distance between the front connector module and the connection module, since the 50-pole IDC terminations are fixed and not field-trimmable.

Technical Details

Short Description
Siemens 6ES7923-5BC00-0DB0: shielded 50-pin round cable, 2.0 m, 32 channels, IDC, SIMATIC S7-1500 TOP Connect.
Rated Voltage (VAC)
24 V
Catalog No
6ES7923-5BC00-0DB0
Delivery Date (Days)
10-15 days
Model Number
6ES7923-5BC00-0DB0
Tariff Code
85444290
