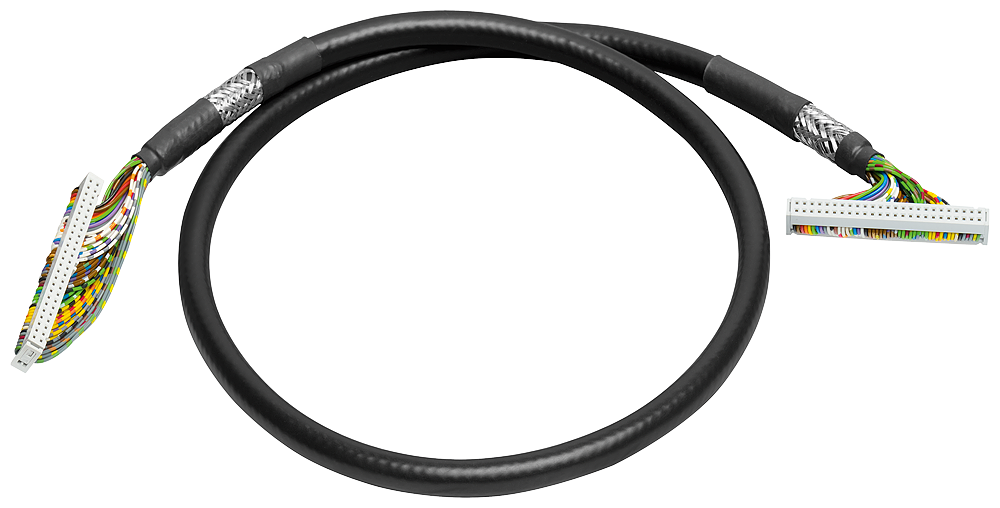

Siemens 6ES7923-5BB00-0DB0 SIMATIC TOP Connect Shielded Connecting Cable 50-Pole 1.0m PLC Connection Module

% $-68.22
Siemens 6ES7923-5BB00-0DB0 SIMATIC TOP Connect shielded connecting cable 50-pole 1.0m - PLC connection module
Siemens 6ES7923-5BB00-0DB0 SIMATIC TOP Connect shielded connecting cable 50-pole 1.0m - PLC connection module

Siemens 6ES7923-5BB00-0DB0 SIMATIC TOP Connect Shielded Connecting Cable 50-Pole 1.0m PLC Connection Module

Brand: Siemens
Reference No: 6ES7923-5BB00-0DB0
Catalog No: 6ES7923-5BB00-0DB0
Series: SIMATIC S7-1500
Tariff Code (HS): 85444290
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$68.22

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7923-5BB00-0DB0 is a shielded, 50-pole pre-assembled round cable in the SIMATIC TOP Connect system, wiring the front connector module to the connection module on SIMATIC S7-1500 I/O stations. It carries 32 digital and analog channels over 0.14 mm² conductors with IDC connectors at both ends, rated 24 V DC (60 V DC maximum), in a 1.0 m length.

Technical Specifications

SKU 6ES7923-5BB00-0DB0
Brand Siemens
Series SIMATIC TOP Connect
EAN 4025515153184
Target System SIMATIC S7-1500
Product Designation Pre-assembled round cable, fully modular connection
Shielding Braided shield
Signal Transmission Digital and analog I/O modules
Number of Poles 50
Number of Channels 32
Wire Length 1.0 m
Conductor Cross Section 0.14 mm²
Connector Type IDC connector
Interface 1 (Front Connector Module Side) 50-pin
Interface 2 (Connection Module Side) 50-pin
Electrical Connection Type Connector strip (both ends)
Rated Operating Voltage (DC) 24 V
Maximum Operating Voltage (DC) 60 V
Ambient Temperature (Operation) 0 ... 60 °C
Ambient Temperature (Storage) -30 ... +70 °C
Cable Outer Diameter 11 mm
Cable Sheath Material PVC
Cable Sheath Color Black
Net Weight 0.13 kg
Country of Origin RO
HS Code 85444290
Environmental Product Declaration Yes (total GWP 3.092 kg CO2 eq)

Selection Notes

The braided shield is what separates this variant from the unshielded version in the same family: it is rated for analog as well as digital I/O channels, while the unshielded cable is limited to digital-only modules. At 1.0 m, it suits a front-connector-module-to-connection-module run sized for that distance; shorter and longer lengths in the same family cover tighter or wider cabinet layouts without a mid-run splice.

Technical Details

Short Description
Siemens 6ES7923-5BB00-0DB0 - shielded 50-pole SIMATIC TOP Connect cable, 32-channel, 1.0 m, IDC connectors, front connector to connection module.
Rated Voltage (VAC)
24 V
Catalog No
6ES7923-5BB00-0DB0
Delivery Date (Days)
10-15 days
Model Number
6ES7923-5BB00-0DB0
Tariff Code
85444290
