Part number
6ES7923-0BF00-0DB0
Model no
Fully modular connection
$54.86 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC TOP connect

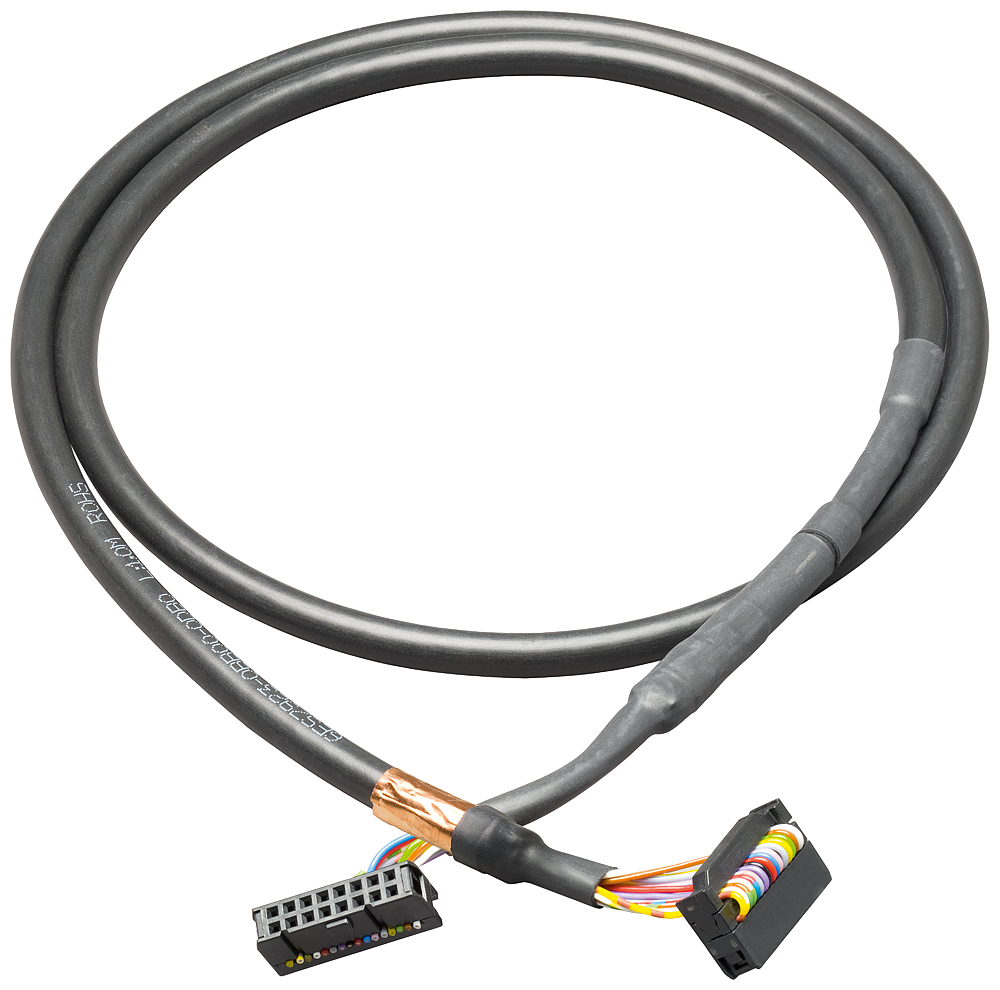

Siemens 6ES7923-0BF00-0DB0 SIMATIC TOP Connect Shielded Connecting Cable 16-Pole 5.0m PLC Connection Module

Siemens 6ES7923-0BF00-0DB0 - shielded 16-pole SIMATIC TOP Connect cable, 8-channel, 5.0 m, IDC connectors, front connector to connection module.

Rated operational voltage
24 V AC
EAN
4025515142140
Description

About the Fully modular connection

The Siemens 6ES7923-0BF00-0DB0 is a shielded, 16-pole pre-assembled round cable in the SIMATIC TOP Connect system, wiring the front connector module to the connection module on SIMATIC S7-300 / 1500 I/O stations. It carries 8 digital and analog channels over 0.14 mm² conductors with IDC connectors at both ends, rated 24 V DC (60 V DC maximum), in a 5.0 m length.

Selection Notes

The braided shield is what separates this variant from the unshielded version in the same family: it is rated for analog as well as digital I/O channels, while the unshielded cable is limited to digital-only modules. At 5.0 m, it suits a front-connector-module-to-connection-module run sized for that distance; shorter and longer lengths in the same family cover tighter or wider cabinet layouts without a mid-run splice.

Specification

Full specification

52 values · Last verified 01 Nov 2026

General 9

target system SIMATIC S7-300 / 1500
suitability for use Digital and analog I/O modules
suitability for interaction: input card PLC Yes
suitability for interaction: PLC output card Yes
suitability for use: digital signal transmission Yes
suitability for use: analog signal transmission Yes
product brand name SIMATIC Top connect
product type designation Fully modular connection
product designation Pre-assembled round cable

Electrical data 2

operating voltage / at DC: rated value 24 V
operating voltage / at DC: maximum 60 V

Connection method 12

design of cable Round cable
number of channels 8
wire length 5 m
conductor cross section / rated value 0.14 mm2
Product component / with shield Yes
design of the shield braided shield
number of poles 16
at the 1st interface 16; cable side front connector module
at the 2nd interface 16; on the connection module
connector type IDC connector
type of electrical connection / on enclosure Connector strip
type of electrical connection / in the field Connector strip
Show all 52 specifications ↓ Show less ↑29 more values in Identification, Standards, specifications, approvals, Environmental Product Declaration, Ambient conditions, Mechanical data, Additional information, Logistics.

Identification 10

Part number 6ES7923-0BF00-0DB0
Type designation Fully modular connection
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4025515142140
ETIM class EC000237
eCl@ss 27242220

Standards, specifications, approvals 1

certificate of suitability: cULus approval No

Environmental Product Declaration 5

Environmental Product Declaration Yes
global warming potential [CO2 eq]: total 5.766 kg
global warming potential [CO2 eq]: during manufacturing 5.607 kg
global warming potential [CO2 eq]: during operation 0 kg
global warming potential [CO2 eq]: after end of life 0.014 kg

Ambient conditions 2

ambient temperature: during operation 0 ... 60 °C
ambient temperature: during storage -30 ... +70

Mechanical data 3

outer diameter / of cable sheath 7 mm
material / of the connection cable sheath PVC
color / of cable sheath Black

Additional information 2

other information technical specifications apply to rated input voltage values and +25 °C ambient temperature (if not otherwise specified)
marketing text The 16-pin round cable (shielded) with a length of 5m represents the link between the front connector and connection module. This pre-assembled cable enables a trouble-free and safe signal flow. Even complex installations remain manageable and can be checked in the shortest possible time, which makes maintenance and expansion affordable. This pre-assembled connecting cable is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-1500 via cable and front plug-in module.

Logistics 6

Net weight 0.426 kg
Country of origin DE
Shipping weight 0.926 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7923-0BF00-0DB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the Fully modular connection

Which supply voltage is Fully modular connection rated for?

The rated operational voltage of Fully modular connection is 24 V AC.

What is the HS code of Fully modular connection for customs?

The tariff (HS) code on file for Fully modular connection is 85444290.

What is the EAN of Fully modular connection?

The EAN (GTIN) of Fully modular connection is 4025515142140.

Where does Fully modular connection ship from, and how fast?

Fully modular connection ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
