Siemens 6ES7923-0BC50-0CB0 SIMATIC TOP Connect Connecting Cable S7-300/1500 16-Pin 2.5m

% $-32.04
Siemens 6ES7923-0BC50-0CB0 TOP Connect Connecting Cable PLC Connection Module - 16-Pin 2.5m
Siemens 6ES7923-0BC50-0CB0 TOP Connect Connecting Cable PLC Connection Module - 16-Pin 2.5m

Siemens 6ES7923-0BC50-0CB0 SIMATIC TOP Connect Connecting Cable S7-300/1500 16-Pin 2.5m

Brand: Siemens
Reference No: 6ES7923-0BC50-0CB0
Catalog No: 6ES7923-0BC50-0CB0
Series: SIMATIC TOP connect
Tariff Code (HS): 85444290
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$32.04

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

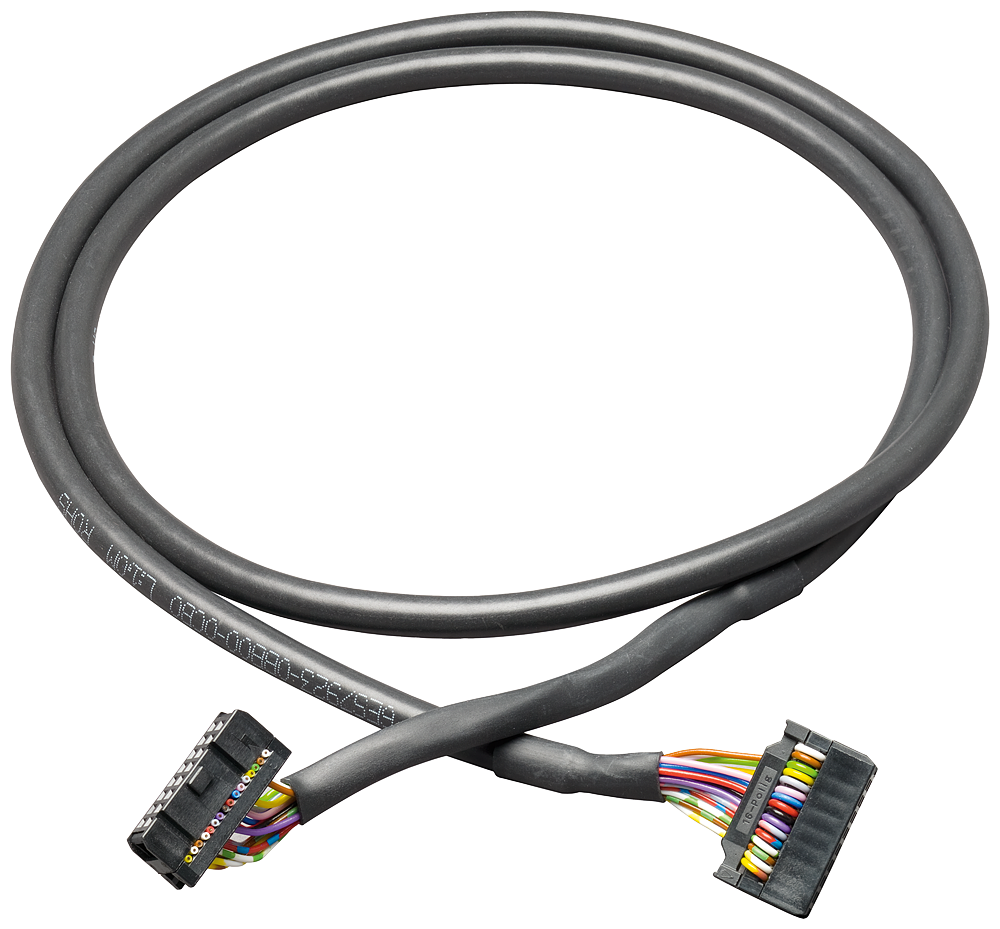

The Siemens 6ES7923-0BC50-0CB0 is a pre-assembled 16-pin round cable that links the front connector module to the connection module in a SIMATIC S7-300/1500 TOP connect setup. It measures 2.5 m, the longest unshielded length in the series, wired with 0.14 mm2 conductors and IDC connectors on both ends for long cabinet runs.

Technical Specifications

SKU 6ES7923-0BC50-0CB0
Brand Siemens
Series SIMATIC TOP connect
Product Designation Pre-Assembled Round Cable
EAN 4025515142058
Target System SIMATIC S7-300 / S7-1500
Suitability Digital I/O modules
Operating Voltage (DC), Rated 24 V
Operating Voltage (DC), Maximum 60 V
Number of Channels 8
Wire Length 2.5 m
Conductor Cross Section 0.14 mm2
Number of Poles 16
Interface 1 (Front Connector Side) 16-pin
Interface 2 (Connection Module Side) 16-pin
Connector Type IDC connector
Electrical Connection, Enclosure Connector strip
Electrical Connection, Field Connector strip
Cable Design Round cable
Cable Sheath Material PVC
Cable Sheath Color Black
Cable Outer Diameter 6.5 mm
Ambient Temperature, Operation 0 ... 60 degC
Ambient Temperature, Storage -30 ... +70 degC
Net Weight 0.21 kg
Environmental Product Declaration, Total CO2 eq 2.595 kg
Country of Origin Germany

Selection Notes

At 2.5 m, the 6ES7923-0BC50-0CB0 is the longest cable in the unshielded CB0 series, for connection modules mounted at the far end of a cabinet or on a separate enclosure from the front connector module. It is unshielded, so it belongs on digital-only I/O paths; longer analog-carrying runs need a shielded cable at the matching length instead.

Technical Details

Short Description
TOP connect 16-pin round cable, S7-300/1500, 0.14mm2, IDC connectors, unshielded, 2.5m.
Rated Voltage (VAC)
24 V
Catalog No
6ES7923-0BC50-0CB0
Delivery Date (Days)
10-15 days
Model Number
6ES7923-0BC50-0CB0
Tariff Code
85444290
