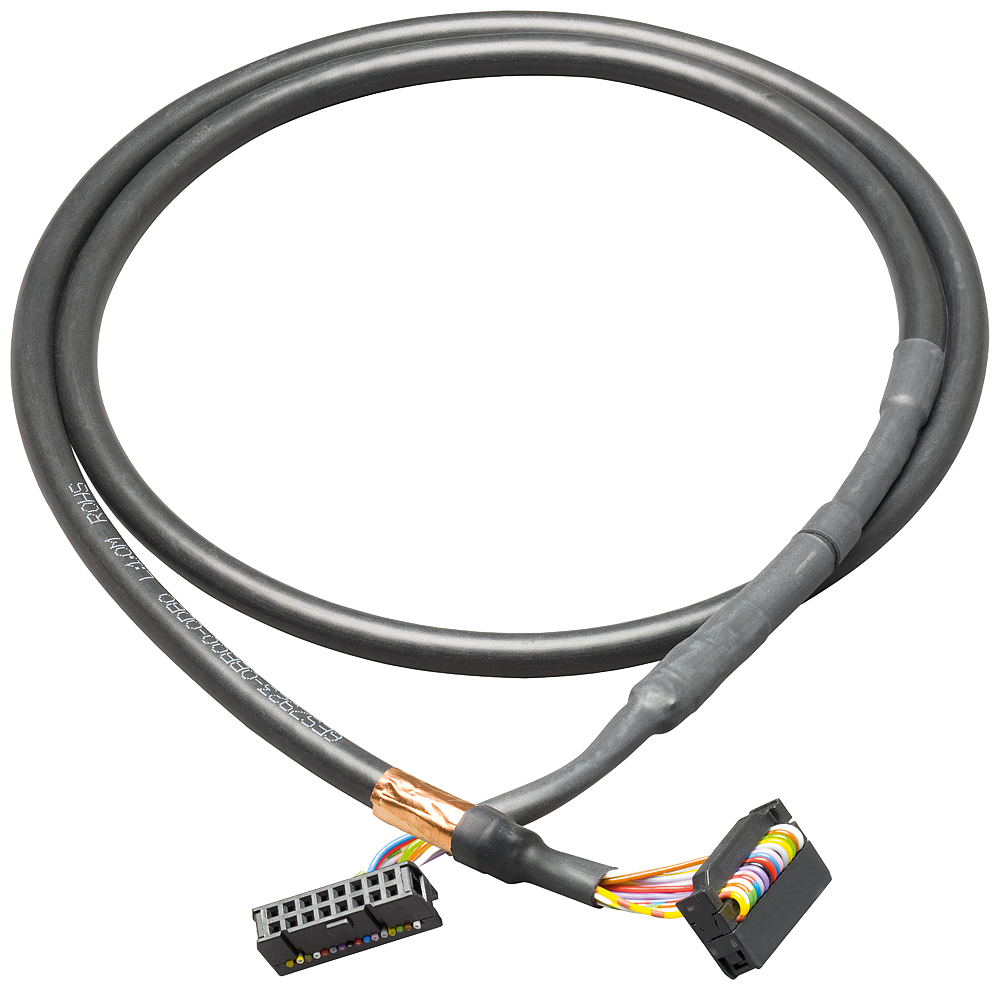

The Siemens 6ES7923-0BB00-0DB0 is a shielded 16-pin round cable that links the front connector module to the connection module in a SIMATIC S7-300/1500 TOP connect setup. It is 1.0 m long, wired with 0.14 mm2 conductors under a braided shield, and terminated on both ends with IDC connectors, suited to modules carrying analog as well as digital signals.
The braided shield on the 6ES7923-0BB00-0DB0 is the reason to pick it over the unshielded 1.0 m CB0 cable: it is rated for modules that transmit analog signals alongside digital ones, where the unshielded cable is only cleared for digital signal transmission. Use the CB0 cable instead when the paired connection module carries digital signals only, since the shielding adds no benefit there.
| target system | SIMATIC S7-300 / 1500 |
|---|---|
| suitability for use | Digital and analog I/O modules |
| suitability for interaction: input card PLC | Yes |
| suitability for interaction: PLC output card | Yes |
| suitability for use: digital signal transmission | Yes |
| suitability for use: analog signal transmission | Yes |
| product brand name | SIMATIC Top connect |
| product type designation | Fully modular connection |
| product designation | Pre-assembled round cable |
| operating voltage / at DC: rated value | 24 V |
|---|---|
| operating voltage / at DC: maximum | 60 V |
| design of cable | Round cable |
|---|---|
| number of channels | 8 |
| wire length | 1 m |
| conductor cross section / rated value | 0.14 mm2 |
| Product component / with shield | Yes |
| design of the shield | braided shield |
| number of poles | 16 |
| at the 1st interface | 16; cable side front connector module |
| at the 2nd interface | 16; on the connection module |
| connector type | IDC connector |
| type of electrical connection / on enclosure | Connector strip |
| type of electrical connection / in the field | Connector strip |
| Part number | 6ES7923-0BB00-0DB0 |
|---|---|
| Type designation | Fully modular connection |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515142096 |
| ETIM class | EC000237 |
| eCl@ss | 27242220 |
| certificate of suitability: cULus approval | No |
|---|
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 1.992 kg |
| global warming potential [CO2 eq]: during manufacturing | 1.937 kg |
| global warming potential [CO2 eq]: during operation | 0 kg |
| global warming potential [CO2 eq]: after end of life | 0.005 kg |
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -30 ... +70 |
| outer diameter / of cable sheath | 7 mm |
|---|---|
| material / of the connection cable sheath | PVC |
| color / of cable sheath | Black |
| other information | technical specifications apply to rated input voltage values and +25 °C ambient temperature (if not otherwise specified) |
|---|---|
| marketing text | The 16-pin round cable (shielded) with a length of 1m represents the link between the front connector and connection module. This pre-assembled cable enables a trouble-free and safe signal flow. Even complex installations remain manageable and can be checked in the shortest possible time, which makes maintenance and expansion affordable. This pre-assembled connecting cable is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-1500 via cable and front plug-in module. |
| Net weight | 0.1 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.6 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
