Siemens 6ES7923-0BB00-0CB0 SIMATIC TOP Connect Connecting Cable S7-300/1500 16-Pin 1.0m

% $-26.87
Siemens 6ES7923-0BB00-0CB0 TOP Connect Connecting Cable PLC Connection Module - 16-Pin 1.0m
Siemens 6ES7923-0BB00-0CB0 TOP Connect Connecting Cable PLC Connection Module - 16-Pin 1.0m

Siemens 6ES7923-0BB00-0CB0 SIMATIC TOP Connect Connecting Cable S7-300/1500 16-Pin 1.0m

Brand: Siemens
Reference No: 6ES7923-0BB00-0CB0
Catalog No: 6ES7923-0BB00-0CB0
Series: SIMATIC TOP connect
Tariff Code (HS): 85444290
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$26.87

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

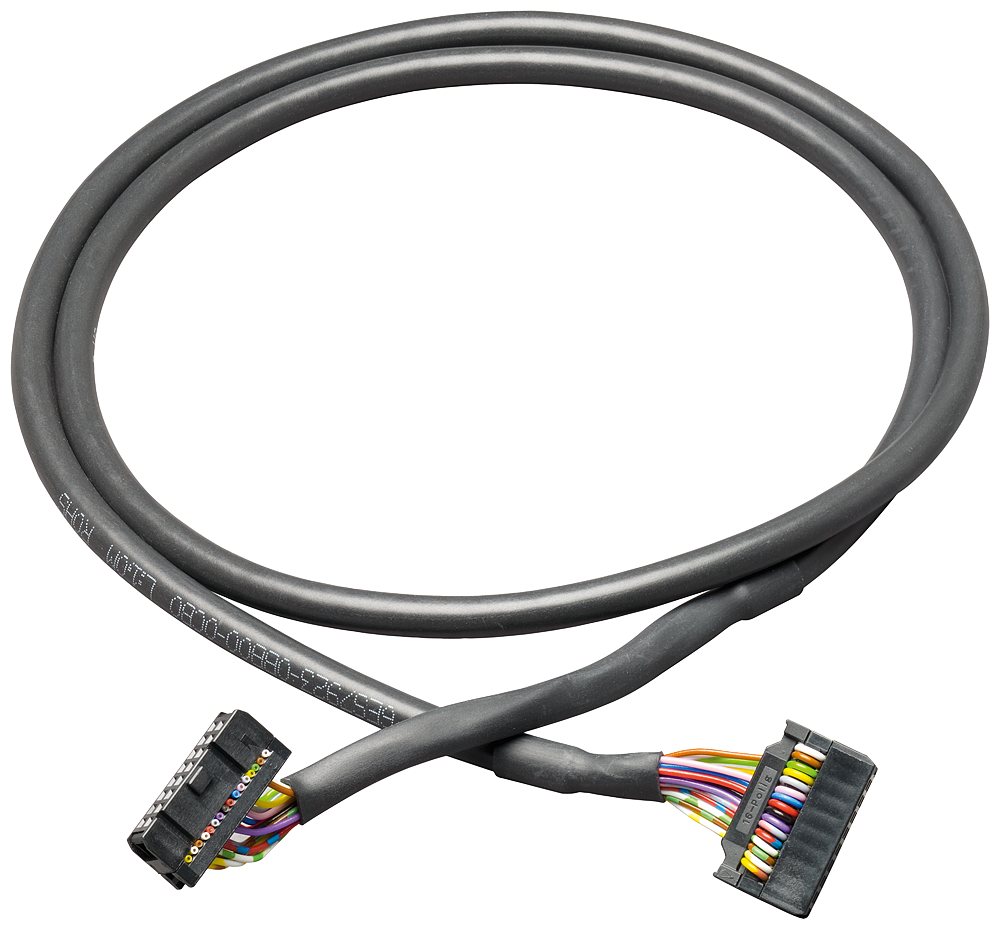

The Siemens 6ES7923-0BB00-0CB0 is a pre-assembled 16-pin round cable that links the front connector module to the connection module in a SIMATIC S7-300/1500 TOP connect setup. It is 1.0 m long, unshielded, wired with 0.14 mm2 conductors, and terminated on both ends with IDC connectors, giving more reach inside the cabinet than the 0.5 m version.

Technical Specifications

SKU 6ES7923-0BB00-0CB0
Brand Siemens
Series SIMATIC TOP connect
Product Designation Pre-Assembled Round Cable
EAN 4025515142027
Target System SIMATIC S7-300 / S7-1500
Suitability Digital I/O modules
Operating Voltage (DC), Rated 24 V
Operating Voltage (DC), Maximum 60 V
Number of Channels 8
Wire Length 1 m
Conductor Cross Section 0.14 mm2
Number of Poles 16
Interface 1 (Front Connector Side) 16-pin
Interface 2 (Connection Module Side) 16-pin
Connector Type IDC connector
Electrical Connection, Enclosure Connector strip
Electrical Connection, Field Connector strip
Cable Design Round cable
Cable Sheath Material PVC
Cable Sheath Color Black
Cable Outer Diameter 6.5 mm
Ambient Temperature, Operation 0 ... 60 degC
Ambient Temperature, Storage -30 ... +70 degC
Net Weight 0.125 kg
Environmental Product Declaration, Total CO2 eq 1.667 kg
Country of Origin Germany

Selection Notes

The 1.0 m length on the 6ES7923-0BB00-0CB0 covers front-connector-to-connection-module runs where the shorter 0.5 m cable would not reach, for example when the connection module sits on a lower DIN rail row. It is unshielded, so use it for digital-only signal paths; where the same connection module handles analog signals, the 1.0 m shielded variant is the matching choice.

Technical Details

Short Description
TOP connect 16-pin round cable, S7-300/1500, 0.14mm2, IDC connectors, unshielded, 1.0m.
Rated Voltage (VAC)
24 V
Catalog No
6ES7923-0BB00-0CB0
Delivery Date (Days)
10-15 days
Model Number
6ES7923-0BB00-0CB0
Tariff Code
85444290
