Siemens 6ES7922-5BC50-0HC0 SIMATIC S7-1500 Front Connector 40-Core Halogen-Free 2.5m PLC Connection Module

% $-160.27
Siemens 6ES7922-5BC50-0HC0 S7-1500 Front Connector 40-Core Halogen-Free - 2.5 m
Siemens 6ES7922-5BC50-0HC0 S7-1500 Front Connector 40-Core Halogen-Free - 2.5 m

Siemens 6ES7922-5BC50-0HC0 SIMATIC S7-1500 Front Connector 40-Core Halogen-Free 2.5m PLC Connection Module

Brand: Siemens
Reference No: 6ES7922-5BC50-0HC0
Catalog No: 6ES7922-5BC50-0HC0
Series: SIMATIC S7-1500
Tariff Code (HS): 85444290
Rated Current: 1.5 A
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$160.27

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

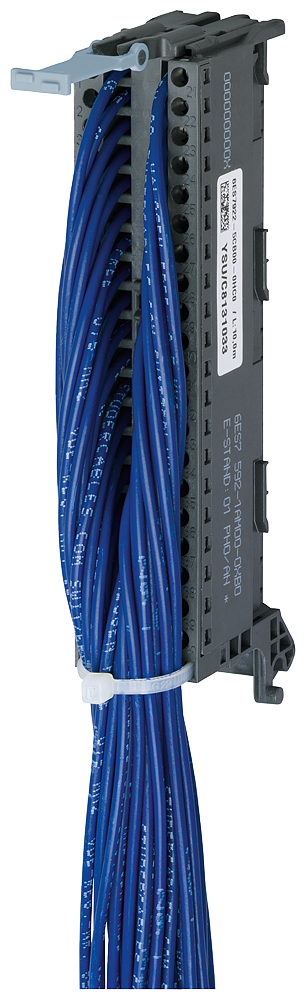

The Siemens 6ES7922-5BC50-0HC0 is a pre-wired 40-pole front connector for SIMATIC S7-1500 digital I/O modules, fitted with 40 individually numbered halogen-free H05Z-K single cores at a 2.5 m length. It plugs onto the module in place of the standard front connector, screw-terminal version, rated 24 V DC (30 V DC maximum) with 1.5 A maximum continuous current per core.

Technical Specifications

SKU 6ES7922-5BC50-0HC0
Brand Siemens
Series SIMATIC S7-1500
EAN 4025515153337
Product Designation Front Connector with Single Cores
Mating Connector Position 6ES7592-1AM00-0XB0
Number of Poles 40
Number of Wired Cores 40
Wire Length 2.5 m
Wire Type H05Z-K (halogen-free)
Conductor Cross Section 0.5 mm²
Cable Outer Diameter 2.2 mm
Cable Sheath Material Polyolefin basis, halogen-free
Cable Sheath Color Blue (RAL 5010)
Terminal Type Screw-type terminal
Rated Operating Voltage 24 V DC
Maximum Operating Voltage 30 V DC
Maximum Continuous Current 1.5 A
Operating Temperature 0 ... 60 °C
Storage Temperature -15 ... +60 °C
Net Weight 1.28 kg
Country of Origin RO

Selection Notes

All 40 poles are wired here, so this version fits full-density digital I/O modules rather than the half-populated 20-core variant. The halogen-free H05Z-K jacket suits panels with low-smoke, zero-halogen cabling requirements in place of standard PVC-sheathed cores. Its -15 ... +60 °C storage range is narrower than the PVC version's -30 ... +70 °C, worth noting for warehouse storage before installation.

Technical Details

Short Description
Siemens 6ES7922-5BC50-0HC0 front connector, SIMATIC S7-1500, 40-core halogen-free H05Z-K, 2.5 m, screw terminal.
Rated Current (Ampere)
1.5 A
Rated Voltage (VAC)
24 V
Mounting Type
Plug-in (front connector)
Catalog No
6ES7922-5BC50-0HC0
Delivery Date (Days)
10-15 days
Model Number
6ES7922-5BC50-0HC0
Tariff Code
85444290
