Part number
6ES7922-5BC50-0AB0
Model no
Flexible connection
$131.45 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC S7-1500

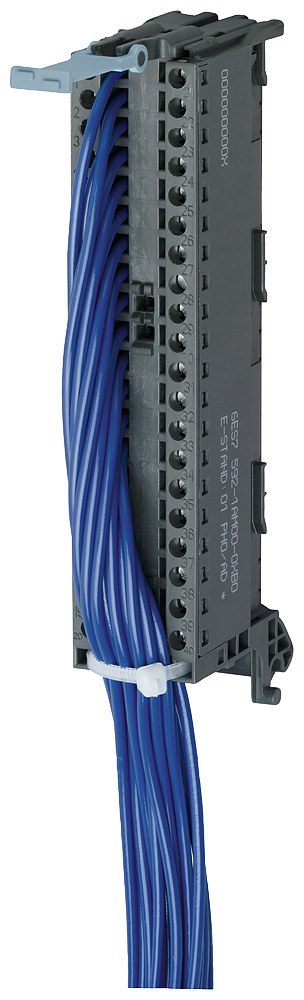

Siemens 6ES7922-5BC50-0AB0 SIMATIC S7-1500 Front Connector 20-Core H05V-K 2.5m PLC Connection Module

Siemens 6ES7922-5BC50-0AB0 front connector, SIMATIC S7-1500, 20-core H05V-K, 2.5 m, screw terminal.

Rated current
1.5 A
Rated operational voltage
24 V AC
EAN
4025515154051
Description

About the Flexible connection

The Siemens 6ES7922-5BC50-0AB0 is a pre-wired 40-pole front connector for SIMATIC S7-1500 digital I/O modules, fitted with 20 individually numbered H05V-K single cores at a 2.5 m length. It plugs onto the module in place of the standard front connector, screw-terminal version, rated 24 V DC (30 V DC maximum) with 1.5 A maximum continuous current per core.

Selection Notes

With only 20 of the connector's 40 poles wired, this version suits digital I/O modules using half-channel density instead of paying for cores that would go unused on a fully wired connector. The screw-terminal H05V-K cores can be re-landed if the terminal-strip assignment changes after commissioning. At 2.5 m it is the shortest length in the family; pick the 3.2 m variant when the marshalling cabinet sits further from the S7-1500 rack.

Specification

Full specification

48 values · Last verified 01 Nov 2026

General 14

target system SIMATIC S7-1500
suitability for use Digital I/O modules
suitability for interaction: input card PLC Yes
suitability for interaction: PLC output card Yes
suitability for use: digital signal transmission Yes
suitability for use: analog signal transmission No
product brand name SIMATIC Top connect
product type designation Flexible connection
product designation Front connector with single cores
electrical data operating voltage / at DC: rated value 24 V
electrical data operating voltage / at DC: maximum 30 V
continuous current / with simultaneous load on all cores / at DC / maximum permissible 1.5 A
type of electrical connection: in the field other
type of electrical connection: on enclosure Screw-type terminal

Connection method 9

connector type 6ES7592-1AM00-0XB0
type of connecting terminal Screw-type terminal
wire length 2.5 m
number of channels 20
number of poles 40; of the front connector
marking / of cores standards, specifications, approvals Number consecutively from 1 to 20 in white adapter contact = core number
certificate of suitability / cULus approval No
ambient conditions ambient temperature: during operation 0 ... 60 °C
ambient conditions ambient temperature: during storage -30 ... +70 °C

Mechanical data 9

design of cable H05V-K
material / of the connection cable sheath PVC
color / of cable sheath blue
RAL color number RAL 5010
conductor cross section / rated value 0.5 mm2
outer diameter / of cable sheath 2.2 mm; of the cable
net weight further information / internet links 0.81 kg
other information Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
marketing text The pre-assembled 40-pole front connector with 20 single wires of type H05V- K, conductor cross-section 0.5qmm, with a length of 2.5m in screw version is intended for connection to a digital I/O module of the SIMATIC S7-1500. This is plugged onto the module to be wired instead of the front connector. This allows the signals of the digital I/O module to be easily connected to the elements to be wired via the numbered individual wires.This front connector with single wires is part of the flexible connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to a 50% lower wiring effort, sources of errors in cabling can be significantly reduced.
Show all 48 specifications ↓ Show less ↑16 more values in Identification, Logistics.

Identification 10

Part number 6ES7922-5BC50-0AB0
Type designation Flexible connection
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4025515154051
ETIM class EC000237
eCl@ss 27242220

Logistics 6

Net weight 0.75 kg
Country of origin Romania
Shipping weight 1.25 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7922-5BC50-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the Flexible connection

What is the rated current of Flexible connection?

The rated current of Flexible connection is 1.5 A.

Which supply voltage is Flexible connection rated for?

The rated operational voltage of Flexible connection is 24 V AC.

What is the HS code of Flexible connection for customs?

The tariff (HS) code on file for Flexible connection is 85444290.

What is the EAN of Flexible connection?

The EAN (GTIN) of Flexible connection is 4025515154051.

Where does Flexible connection ship from, and how fast?

Flexible connection ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
