Part number
6ES7922-3BD20-0AG0
Model no
Flexible connection
$146.97 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC TOP connect

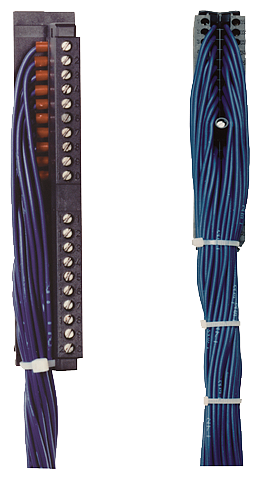

Siemens 6ES7922-3BD20-0AG0 SIMATIC TOP Connect Front Connector 40-Pole Crimp 3.2 m PLC Connection Module

Siemens 6ES7922-3BD20-0AG0 SIMATIC TOP Connect 40-pole front connector, 3.2 m crimp, 24 V DC

Rated current
1.5 A
Rated operational voltage
24 V AC
EAN
4025515135241
Description

About the Flexible connection

The Siemens 6ES7922-3BD20-0AG0 is a pre-assembled SIMATIC TOP connect front connector for the SIMATIC S7-300, wired with 40 H05V-K single cores of 0.5 mm² cross-section at 3.2 m length, crimp version. It plugs onto a 40-pole S7-300 digital I/O module in place of the bare front connector, rated 24 V DC (30 V DC max, 1.5 A per core), and ships as a single unit.

Selection Notes

Choose the 40-pole version to match the digital I/O module's channel count; the 40-core assembly cannot be trimmed down or extended to a different pole count. At 3.2 m, it reaches a control cabinet's terminal strip from a 40-pole S7-300 digital I/O module without an intermediate junction. The crimp version uses a factory crimp connection instead of screw terminals, which removes the periodic screw re-torque check from the maintenance routine but requires crimp tooling if a core is re-worked. The H05V-K core insulation fits IEC-style panel wiring practice. Supplied as a single unit, it suits single-module replacement or a small expansion.

Specification

Full specification

43 values · Last verified 01 Nov 2026

General 14

target system SIMATIC S7-300
suitability for use Digital I/O modules
suitability for interaction: input card PLC Yes
suitability for interaction: PLC output card Yes
suitability for use: digital signal transmission Yes
suitability for use: analog signal transmission No
product brand name SIMATIC Top connect
product type designation Flexible connection
product designation Front connector with single cores
electrical data operating voltage / at DC: rated value 24 V
electrical data operating voltage / at DC: maximum 30 V
continuous current / with simultaneous load on all cores / at DC / maximum permissible 1.5 A
type of electrical connection: in the field other
type of electrical connection: on enclosure other

Connection method 9

connector type 6ES7392-1AM00-0AA0
type of connecting terminal Crimp connection
wire length 3.2 m
number of channels 40
number of poles 40; of the front connector
marking / of cores standards, specifications, approvals Number consecutively from 1 to 40 in white adapter contact = core number
certificate of suitability / cULus approval No
ambient conditions ambient temperature: during operation 0 ... 60 °C
ambient conditions ambient temperature: during storage -30 ... +70 °C

Mechanical data 5

design of cable H05V-K
material / of the connection cable sheath PVC
color / of cable sheath blue
RAL color number RAL 5010
conductor cross section / rated value 0.5 mm2
Show all 43 specifications ↓ Show less ↑15 more values in Identification, Version Classification, Logistics.

Identification 7

Part number 6ES7922-3BD20-0AG0
Type designation Flexible connection
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
EAN 4025515135241

Version Classification 4

eClass 16 27-24-22-20
ETIM 10 EC000237
IDEA 4 3553
UNSPSC 15 32-15-17-03

Logistics 4

Shipping weight 1.7 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7922-3BD20-0AG0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the Flexible connection

What is the rated current of Flexible connection?

The rated current of Flexible connection is 1.5 A.

Which supply voltage is Flexible connection rated for?

The rated operational voltage of Flexible connection is 24 V AC.

What is the HS code of Flexible connection for customs?

The tariff (HS) code on file for Flexible connection is 85444290.

What is the EAN of Flexible connection?

The EAN (GTIN) of Flexible connection is 4025515135241.

Where does Flexible connection ship from, and how fast?

Flexible connection ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
