Part number
6ES7921-5AK20-0AA0
Model no
Fully modular connection
$75.56 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC TOP connect

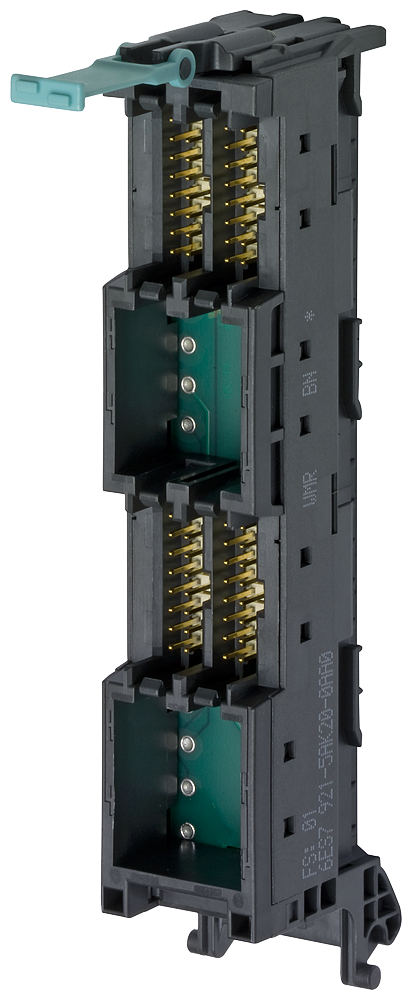

Siemens 6ES7921-5AK20-0AA0 SIMATIC TOP Connect Front Connector Module 40-Pole S7-1500 PLC Connection Module

Front connector module for SIMATIC S7-1500 analog I/O, 40-pole IDC, 24V/60V DC, 1A per contact, cULus approved.

Rated current
1 A
Rated operational voltage
24 V DC
EAN
4047623602491
Description

About the Fully modular connection

The Siemens 6ES7921-5AK20-0AA0 is a front connector module for SIMATIC S7-1500 analog I/O modules, part of the SIMATIC TOP Connect fully modular wiring system. It provides 40 poles across four 16-pole IDC connectors for field cabling, is rated 24V DC (60V DC maximum) at up to 1A per plug-in contact, and mounts in place of the standard front connector on the analog module.

Certifications & Standards

  • cULus

Selection Notes

The 24V/60V DC rating and 1A per-contact limit size this module for analog I/O signal wiring rather than digital output switching loads — select it specifically for S7-1500 analog modules that use 40-pole front connectors. The 30 m maximum wire length between the front connector module and the terminal module sets the practical cabinet-to-terminal-strip distance when wiring with SIMATIC TOP Connect.

Applications

Used in SIMATIC S7-1500 automation systems where analog I/O modules are pre-wired through SIMATIC TOP Connect terminal modules, typical in panel-built machine control and process instrumentation cabinets where reducing point-to-point field wiring errors matters.

Specification

Full specification

50 values · Last verified 01 Nov 2026

General 5

target system SIMATIC S7-1500
suitability for use Analog I/O modules
product brand name SIMATIC Top connect
product type designation Fully modular connection
product designation Front connector module

Electrical data / header 3

operating voltage / at DC: rated value 24 V
operating voltage / at DC: maximum 60 V
continuous current / at DC / per plug-in contact / maximum 1 A

Connection method 11

number of poles 40; of the front connector
Product component / with shield No
type of electrical connection / for connecting cable Plug-in connection
number of poles / at the 1st interface 16; the IDC connector for the connection cable
number of the plug contacts / of the electrical connection 4
wire length / maximum 30 m; between front connector module and terminal module
position / of the terminal at the top
type of connectable conductor cross-sections / solid No
connectable conductor cross-section: for flexible conductor / with core end processing voltage supply via feed element of the module
number of cables / per connection 2; Connection for internal system: Combination of 1 or 2 Wires until the sum total of cross sections be achieved in a ferrule.
width of screwdriver blade 3.5 mm
Show all 50 specifications ↓ Show less ↑31 more values in Identification, Standards, specifications, approvals, Ambient conditions, Mechanical data, Additional information, Logistics.

Identification 10

Part number 6ES7921-5AK20-0AA0
Type designation Fully modular connection
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623602491
ETIM class EC001284
eCl@ss 27141106

Standards, specifications, approvals 4

certificate of suitability / cULus approval Yes
design tested acc. to type of protection / EEx e No
overvoltage category 2
degree of pollution 2

Ambient conditions 3

operating temperature 0 ... 60 °C
ambient temperature: during operation 0 ... 60 °C
ambient temperature: during storage -40 ... +70

Mechanical data 5

mounting type direct mounting
color / of the enclosure black
product feature / transparent No
material / of the insulating body other
product component / required / end cover plate No

Additional information 3

manufacturer's article number / of device connector / usable replacement for S7-1500 40 pole
other information technical specifications apply to rated input voltage values and +25 °C ambient temperature (if not otherwise specified)
marketing text The front connector module for SIMATIC S7-1500 for potential feed to connect 16-pole cables represents a modified front connector for connection to an analog I/O module. This is plugged into the module to be wired instead of the front connector. Here the cables are plugged in and connected to the connection module.This modified front connector module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are attached to the connection modules of SIMATIC TOP connect and linked to the SIMATIC S7-300 via connecting cable and front plug-in module.

Logistics 6

Net weight 0.07 kg
Country of origin Romania
Shipping weight 0.57 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7921-5AK20-0AA0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • / cULus approval
Quick answers

Questions about the Fully modular connection

What is the rated current of Fully modular connection?

The rated current of Fully modular connection is 1 A.

Which supply voltage is Fully modular connection rated for?

The rated operational voltage of Fully modular connection is 24 V DC.

What is the HS code of Fully modular connection for customs?

The tariff (HS) code on file for Fully modular connection is 85366990.

What is the EAN of Fully modular connection?

The EAN (GTIN) of Fully modular connection is 4047623602491.

Where does Fully modular connection ship from, and how fast?

Fully modular connection ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
