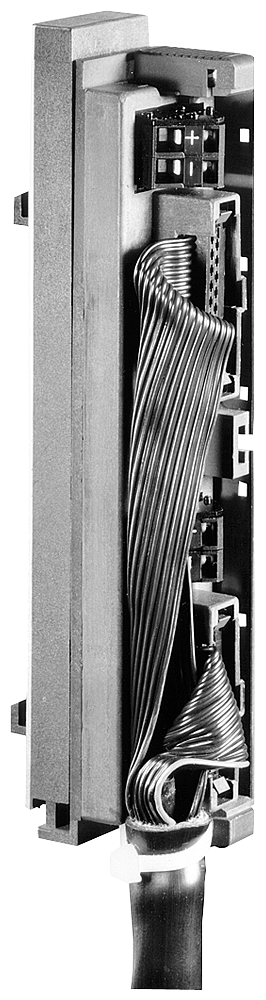

The Siemens 6ES7921-3AF00-0AA0 is a SIMATIC TOP connect front connector module for S7-300 analog I/O modules. It carries the signal wiring through a single 16-pole IDC cable connection and feeds power through spring clamp terminals rated 24 V DC, 1 A, with just one L+ and one M terminal for the module's own supply. It plugs directly into the analog module in place of the factory front connector.
With only one L+/M terminal pair, this connector matches analog modules that draw a single supply feed rather than the multi-terminal digital variants in the same TOP connect family. Spring clamp terminals connect that feed without a screwdriver, which helps when analog cards are swapped during commissioning; pick the screw-terminal version where the panel spec calls for a checkable torque on the supply connection.
| target system | SIMATIC S7-300 |
|---|---|
| suitability for use | Analog I/O modules |
| product brand name | SIMATIC Top connect |
| product type designation | Fully modular connection |
| product designation | Front connector module |
| operating voltage / at DC: rated value | 24 V |
|---|---|
| operating voltage / at DC: maximum | 60 V |
| current / rated value | 1 A |
| continuous current / at DC / per plug-in contact / maximum | 1 A |
| total current / maximum | 4 A |
| number of poles | 20; of the front connector |
|---|---|
| Product component / with shield | No |
| type of electrical connection / for connecting cable | Plug-in connection |
| number of poles / at the 1st interface | 16; the IDC connector for the connection cable |
| number of the plug contacts / of the electrical connection | 2 |
| wire length / maximum | 30 m; between front connector module and terminal module |
| number of terminals | 2; 1 x L+, 1 x M |
| type of electrical connection / for power supply | Spring clamp |
| position / of the terminal | at the top |
| type of connectable conductor cross-sections / solid | No |
| connectable conductor cross-section: for flexible conductor / with core end processing | 0.25 ... 1.5 mm2; End sleeve according to DIN 46228 without plastic collar |
| connectable conductor cross-section: stranded | 0.25 ... 1.5 mm2 |
| connectable conductor cross-section: finely stranded / without core end processing | 0.25 ... 1.5 mm2 |
| connectable conductor cross-section: finely stranded / with core end processing | 0.25 ... 1.5 mm2 |
| type of wire end sleeve: without plastic sleeve / according to DIN 46228-1 | Length 5mm to 7mm |
| number of cables / per connection | 2; Connection for internal system: Combination of 1 or 2 Wires until the sum total of cross sections be achieved in a ferrule. |
| stripped length | 6 mm |
| width of screwdriver blade | 3.5 mm |
| Part number | 6ES7921-3AF00-0AA0 |
|---|---|
| Type designation | Fully modular connection |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4025515065784 |
| certificate of suitability / cULus approval | Yes |
|---|---|
| design tested acc. to type of protection / EEx e | No |
| overvoltage category | 2 |
| degree of pollution ambient conditions | 2 |
| operating temperature | 0 ... 60 °C |
| ambient temperature: during operation | 0 ... 60 °C |
| ambient temperature: during storage | -40 ... +70 |
| mounting type | direct mounting |
|---|---|
| color / of the enclosure | black |
| product feature / transparent | No |
| material / of the insulating body | other |
| product component / required / end cover plate | No |
| manufacturer's article number / of device connector / usable | replacement for S7-300 20 pole |
|---|---|
| other information | technical specifications apply to rated input voltage values and +25 °C ambient temperature (if not otherwise specified) |
| marketing text | The front connector module for SIMATIC S7-300 with spring terminals for potential feed to connect 2x16-pole cables represents a modified front connector for connection to a analog I/O module. This is plugged into the module to be wired instead of the front connector. Here the cables are plugged in and connected to the connection module.This modified front connector module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are attached to the connection modules of SIMATIC TOP connect and linked to the SIMATIC S7-300 via connecting cable and front plug-in module. |
| Net weight | 0.066 kg |
|---|---|
| Shipping weight | 0.565 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
