Part number
6ES7592-1BM00-0XB0
$49.68 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC S7-1500

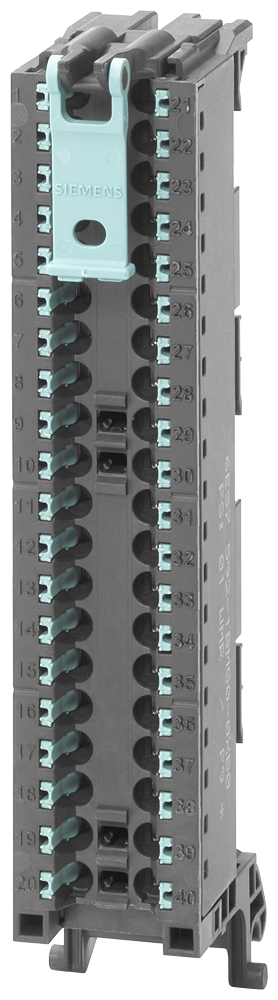

Siemens 6ES7592-1BM00-0XB0 SIMATIC S7-1500 40-Pole Push-In Front Connector

SIMATIC S7-1500 40-pole push-in front connector for 35 mm modules, incl. 4 potential bridges and cable ties.

Connection I/O signals: Connection method
Push-in terminal
Connection I/O signals: Number of lines per connection Conductor cross-section in mm2
1; or combination of 2 conductors of up to 1.5 mm2 (total) in a shared ferrule
Connection I/O signals: Connectable cable cross-sections for massive cables, min.
0.25 mm2
Connection I/O signals: Stripped length of cables, min.
8 mm
Connection I/O signals: Stripped length of cables, max.
11 mm
Connection I/O signals: End sleeve acc. to DIN 46228 without plastic sleeve
Form A, 10 mm long
EAN
4025515080992
Description

About the 6ES7592-1BM00-0XB0

The Siemens SIMATIC S7-1500 front connector (6ES7592-1BM00-0XB0) is a 40-pole push-in connector for 35 mm wide S7-1500 I/O modules, rated for cable cross-sections from 0.25 to 1.5 mm² and supplied with 4 potential bridges and cable ties. Stripped length runs 8 to 11 mm, and the connector measures 29.8 x 130.5 x 46 mm at 0.097 kg, matching the standard S7-1500 signal module housing width.

Selection Notes

The push-in terminals accept 0.25 - 1.5 mm² conductors without a crimp tool, and the 4 integrated potential bridges let adjacent terminals share a common potential such as L+ or M without separate jumper wire. Its 40-pole count matches the standard 35 mm wide S7-1500 signal module housing.

Applications

Used to wire field I/O signals into 35 mm wide SIMATIC S7-1500 digital and analog modules during panel assembly.

Specification

Full specification

30 values · Last verified 01 Nov 2026

Connection method 8

Connection I/O signals: Connection method Push-in terminal
Connection I/O signals: Number of lines per connection Conductor cross-section in mm2 1; or combination of 2 conductors of up to 1.5 mm2 (total) in a shared ferrule
Connection I/O signals: Connectable cable cross-sections for massive cables, min. 0.25 mm2
Connection I/O signals: Stripped length of cables, min. 8 mm
Connection I/O signals: Stripped length of cables, max. 11 mm
Connection I/O signals: End sleeve acc. to DIN 46228 without plastic sleeve Form A, 10 mm long
Connection I/O signals: End sleeve acc. to DIN 46228 with plastic sleeve Mounting Form E, 8 mm and 10 mm long
Connection I/O signals: Tool Screwdriver, conical design, 3 mm to 3.5 mm

Dimensions 3

Width 29.8 mm
Height 130.5 mm
Depth 46 mm

Version Classification 4

eClass 16 27-24-22-92
ETIM 10 EC002584
IDEA 4 3552
UNSPSC 15 32-15-17-03
Show all 30 specifications ↓ Show less ↑15 more values in Identification, Logistics.

Identification 9

Part number 6ES7592-1BM00-0XB0
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4025515080992
ETIM class EC002584
eCl@ss 27242292

Logistics 6

Net weight 0.096 kg
Country of origin Romania
Shipping weight 0.596 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7592-1BM00-0XB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 6ES7592-1BM00-0XB0

What is the HS code of 6ES7592-1BM00-0XB0 for customs?

The tariff (HS) code on file for 6ES7592-1BM00-0XB0 is 85369010.

What is the EAN of 6ES7592-1BM00-0XB0?

The EAN (GTIN) of 6ES7592-1BM00-0XB0 is 4025515080992.

Where does 6ES7592-1BM00-0XB0 ship from, and how fast?

6ES7592-1BM00-0XB0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
