Part number
6ES7554-1AA00-0AB0
Model no
TM FAST
$2,121.75 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC S7-1500

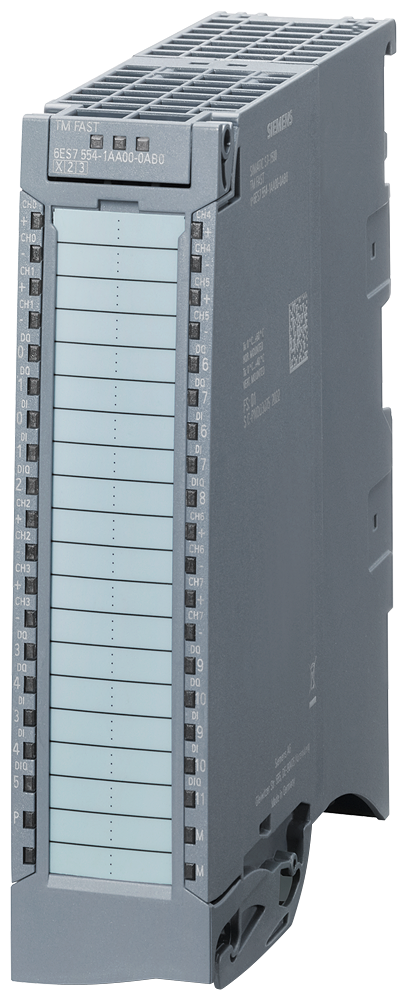

Siemens 6ES7554-1AA00-0AB0 SIMATIC S7-1500 TM FAST FPGA High-Speed I/O Module

SIMATIC S7-1500 TM FAST FPGA module, 8 DI/8 DQ/4 DIQ, RS422/TTL, sub-microsecond response.

Rated current
0.1 A
Rated operational voltage
24 V AC
Communication
RS422, TTL 5V, 24V DIQ
EAN
4047623412533
Description

About the TM FAST

The Siemens 6ES7554-1AA00-0AB0 is a SIMATIC S7-1500 TM FAST field-adaptable technology module, an FPGA-based I/O card programmable with Intel Quartus Prime software, providing 8 digital inputs, 8 digital outputs, 4 configurable 24 V DIQ channels, and 8 RS485 DIQ channels with response times under 1 microsecond. It runs on 24 V DC and mounts directly on the S7-1500 rail.

Selection Notes

The FPGA core is field-programmable with Intel Quartus Prime, so channel behavior can be customized in hardware logic rather than fixed firmware, useful for control loops needing sub-microsecond response that a standard CPU scan cycle cannot deliver. The 4 DIQ channels switch between RS422 at up to 5 MHz, TTL 5 V at up to 1 MHz, or 24 V digital I/O per channel, so one module covers encoder-speed signals and standard discrete I/O on the same hardware. Two output current classes apply, 0.1 A on the fixed DQ channels versus 0.3 A on the DIQ channels, worth checking against actuator load before wiring a DIQ channel as a standard output.

Applications

Deterministic, sub-microsecond digital and RS422/TTL signal processing for fast trigger logic, laser or marking synchronization, or motion feedback where a standard S7-1500 I/O module's scan-cycle-bound response time is too slow.

Specification

Full specification

106 values · Last verified 01 Nov 2026

General information 7

Product type designation TM FAST
Firmware version V2.0
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version STEP 7 V17 with HSP or higher
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.35

Installation type/mounting 1

Rail mounting Yes; S7-1500 mounting rail

Supply voltage 4

Load voltage L+: Rated value (DC) 24 V
Load voltage L+: permissible range, lower limit (DC) 19.2 V
Load voltage L+: permissible range, upper limit (DC) 28.8 V
Load voltage L+: Reverse polarity protection Yes
Show all 106 specifications ↓ Show less ↑94 more values in Identification, Input current, Power, Power loss, Address area, Digital inputs, Digital outputs, Encoder, Isochronous mode, Interrupts/diagnostics/status information, Potential separation, Isolation, Security, Ambient conditions, Decentralized operation, Dimensions, Weights, Logistics.

Identification 10

Part number 6ES7554-1AA00-0AB0
Type designation TM FAST
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623412533
ETIM class EC001422
eCl@ss 27242205

Input current 1

Current consumption, max. 100 mA; without load

Power 1

Power consumption from the backplane bus 1.3 W

Power loss 1

Power loss, typ. 4 W

Address area 2

Address space per module: Inputs 32 byte
Address space per module: Outputs 32 byte

Digital inputs 16

Number of digital inputs 12; including 4 DIQs
Digital inputs, parameterizable Yes
Input characteristic curve in accordance with IEC 61131, type 3 Yes
Input voltage: Type of input voltage DC
Input voltage: Rated value (DC) 24 V
Input voltage: for signal "0" -5 ... +5 V
Input voltage: for signal "1" +11 to +30V
Input voltage: permissible voltage at input, min. -5 V; -5 V continuous, -30 V brief reverse polarity protection
Input voltage: permissible voltage at input, max. 30 V
Input current: for signal "1", typ. 2.5 mA
Input frequency: For signal interface 24 V asymmetrical 200 kHz
Input frequency: For signal interface RS 422 symmetrical 5 MHz
Input frequency: For signal interface TTL (5 V) asymmetrical 1 MHz
Input delay (for rated value of input voltage): Minimum pulse width for program reactions for standard inputs application specific below 1µs possible
Input delay (for rated value of input voltage): parameterizable Yes; customer defined / 0.001 / 0.003 / 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms
Cable length: shielded, max. 100 m

Digital outputs 21

Number of digital outputs 12; including 4 DIQs
Current-sinking Yes; 8 push-pull outputs
Current-sourcing Yes
Short-circuit protection Yes; electronic/thermal
Response threshold, typ. 0.2 A; for DQ; 0.9 A for DIQ
Switching capacity of the outputs: with resistive load, max. 0.1 A; 0.3 A for DIQs
Load resistance range: lower limit 240 Ω; 80 ohms for DIQs
Load resistance range: upper limit 12 kΩ
Output voltage: Type of output voltage DC
Output voltage: for signal "1", min. 23.2 V; L+ (-0.8 V), L+ (-1.3 V) for DIQs
Output current: for signal "1" rated value 0.1 A; 0.3 A for DIQs
Output current: for signal "1" permissible range, max. 0.12 A; 0.36 A for DIQs
Output current: for signal "1" minimum load current 2 mA
Output current: for signal "0" residual current, max. 0.5 mA
Output delay with resistive load: "0" to "1", typ. 420 ns; for DQn
Output delay with resistive load: "1" to "0", typ. 420 ns; for DQn
Switching frequency: with resistive load, max. 200 kHz; 1 kHz for DIQs
Switching frequency: For signal interface 24 V asymmetrical 200 kHz; 1 kHz for DIQs
Switching frequency: For signal interface RS 422 symmetrical 2 MHz
Switching frequency: For signal interface TTL (5 V) asymmetrical 200 kHz
Cable length: shielded, max. 30 m

Encoder 4

Interface types: TTL 5 V Yes; 8 channels (direction switchable)
Interface types: RS 422 Yes; 8 channels (direction switchable)
Interface types: Sourcing/sinking input Yes
Interface types: Input characteristic curve in accordance with IEC 61131, type 3 Yes

Isochronous mode 1

Bus cycle time (TDP), min. 250 µs

Interrupts/diagnostics/status information 13

Diagnostics function Yes
Substitute values connectable Yes
Alarms: Diagnostic alarm Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; for RS485/RS422/TTL Input
Diagnoses: Short-circuit Yes; Thermal overload protection
Diagnoses: Group error Yes
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: MAINT LED Yes; Yellow LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: Between the channels and load voltage L+ No

Isolation 1

Isolation tested with 707 V DC (type test)

Security 1

signed firmware update Yes

Ambient conditions 4

Ambient temperature during operation: horizontal installation, min. -30 °C
Ambient temperature during operation: vertical installation, min. -30 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200MP system manual
Absolute humidity: dew point, min. -60 °C; suitable for dry room applications

Decentralized operation 5

to SIMATIC S7-300 Yes
to SIMATIC S7-400 Yes
to SIMATIC S7-1200 Yes
to SIMATIC S7-1500 Yes
to standard PROFINET controller Yes

Dimensions 3

Width 35 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 300 g

Logistics 6

Net weight 0.424 kg
Country of origin DE
Shipping weight 0.924 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7554-1AA00-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the TM FAST

What is the rated current of TM FAST?

The rated current of TM FAST is 0.1 A.

Which supply voltage is TM FAST rated for?

The rated operational voltage of TM FAST is 24 V AC.

What is the HS code of TM FAST for customs?

The tariff (HS) code on file for TM FAST is 85389091.

What is the EAN of TM FAST?

The EAN (GTIN) of TM FAST is 4047623412533.

Where does TM FAST ship from, and how fast?

TM FAST ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
