Part number
6ES7553-1AA00-0AB0
Model no
TM PTO 4
$920.12 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
Discontinued by the manufacturer

Siemens has discontinued 6ES7553-1AA00-0AB0

We sell remaining stock while it lasts.

No replacement announced yet. Tell us the application and we will propose an alternative.

SIMATIC S7-1500

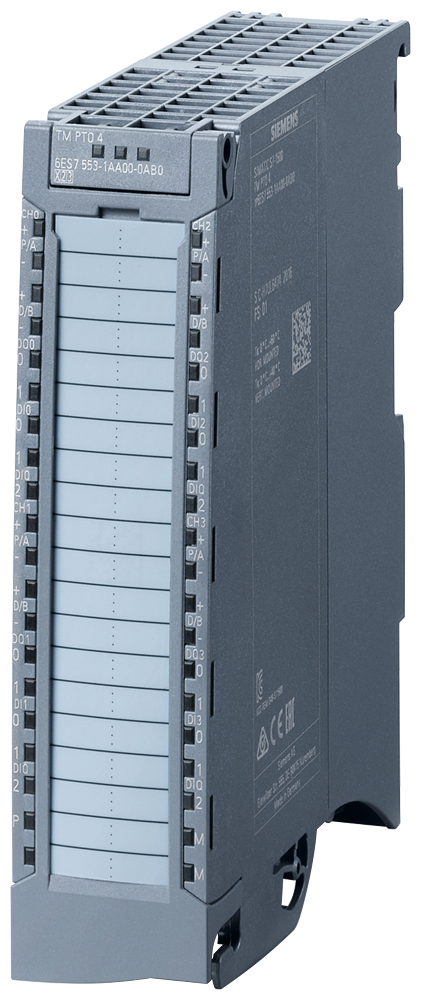

Siemens 6ES7553-1AA00-0AB0 SIMATIC S7-1500 TM PTO 4 4-Channel Stepper Pulse Train PLC I/O Module

SIMATIC S7-1500 TM PTO 4 - 4-channel stepper pulse train output, 24V/RS-422/TTL interfaces up to 1MHz.

Rated current
0.1 A
Rated operational voltage
24 V DC
Communication
Pulse train output, PROFINET isochronous
EAN
4047623406938
Description

About the TM PTO 4

The Siemens 6ES7553-1AA00-0AB0 is a SIMATIC S7-1500 TM PTO 4 technology module that generates pulse train output for 4 stepper-drive axes, switching 24 V asymmetrical, RS-422 symmetrical, or 5 V TTL signal interfaces up to 1 MHz. Each channel adds 2 digital inputs and 1 digital output rated 24 V DC for synchronization, probe, and drive-ready signaling.

Selection Notes

Signal interface choice sets the achievable pulse rate: RS-422 symmetrical reaches 1 MHz, five times the 200 kHz ceiling of the 24 V asymmetrical or 5 V TTL interfaces, so select RS-422 for high-speed stepper axes and reserve 24 V asymmetrical for simpler drives or longer unshielded runs. Running all 4 channels simultaneously raises the minimum isochronous bus cycle from 250 to 375 microseconds, which affects how tightly the module's motion timing can be synchronized to the PROFINET network — account for that when only some channels are used versus a fully populated module.

Applications

Fits multi-axis stepper-drive positioning in S7-1500/ET 200MP racks: packaging line indexing, pick-and-place stepper axes, and retrofits of pulse/direction or A/B-quadrature stepper drives onto a PROFINET-based S7-1500 controller without a dedicated servo drive per axis.

Specification

Full specification

113 values · Last verified 01 Nov 2026

General information 8

Product type designation TM PTO 4
HW functional status FS02
Number of channels 4; Axes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version STEP 7 V14 or higher
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 with GSD file / -
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.32

Installation type/mounting 1

Rail mounting Yes; S7-1500 mounting rail

Supply voltage 4

Load voltage L+: Rated value (DC) 24 V
Load voltage L+: permissible range, lower limit (DC) 19.2 V
Load voltage L+: permissible range, upper limit (DC) 28.8 V
Load voltage L+: Reverse polarity protection Yes
Show all 113 specifications ↓ Show less ↑100 more values in Identification, Input current, Power, Power loss, Address area, Digital inputs, Digital outputs, Isochronous mode, Interrupts/diagnostics/status information, Potential separation, Isolation, Ambient conditions, Decentralized operation, Dimensions, Weights, EClass 8 27-24-22-05, Logistics.

Identification 8

Part number 6ES7553-1AA00-0AB0
Type designation TM PTO 4
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Discontinued by the manufacturer
EAN 4047623406938

Input current 1

Current consumption, max. 70 mA; without load

Power 1

Power consumption from the backplane bus 1.3 W

Power loss 1

Power loss, typ. 4 W

Address area 2

Address space per module: Inputs 18 byte; Per channel
Address space per module: Outputs 10 byte; Per channel

Digital inputs 16

Number of digital inputs 12; 3 per channel, of which 1 DIQ
Digital inputs, parameterizable Yes
Input characteristic curve in accordance with IEC 61131, type 3 Yes
Digital input functions, parameterizable: Synchronization Yes
Digital input functions, parameterizable: Probe Yes
Digital input functions, parameterizable: Drive ready Yes
Input voltage: Type of input voltage DC
Input voltage: Rated value (DC) 24 V
Input voltage: for signal "0" -5 ... +5 V
Input voltage: for signal "1" +11 to +30V
Input voltage: permissible voltage at input, min. -5 V
Input voltage: permissible voltage at input, max. 30 V
Input current: for signal "1", typ. 2.5 mA
Input delay (for rated value of input voltage) for standard inputs: parameterizable for technological functions Yes; none / 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms
Cable length: shielded, max. 1 000 m
Cable length: unshielded, max. 600 m

Digital outputs 32

Number of digital outputs 12; 3 per channel, of which 1 DIQ
Current-sinking Yes; For DQn.0 and DQn.1 push-pull outputs
Current-sourcing Yes
Digital outputs, parameterizable Yes
Short-circuit protection Yes; electronic/thermal
Response threshold, typ. 0.2 A for DQn.0 and DQn.1, 0.9 A for DIQn.2
Controlling a digital input Yes
PTO (pulse train output) signal interface: 24 V asymmetrical Yes
PTO (pulse train output) signal interface: RS 422 symmetrical Yes
PTO (pulse train output) signal interface: TTL (5 V) asymmetrical Yes
PTO (pulse train output) signal type: Pulse and direction Yes
PTO (pulse train output) signal type: Count up, count down Yes
PTO (pulse train output) signal type: Incremental encoder (A, B phase shift) Yes
Switching capacity of the outputs: with resistive load, max. 0.1 A; 0.5 A for DIQn.2
Switching capacity of the outputs: on lamp load, max. 1 W; 5 W for DIQn.2
Load resistance range: lower limit 240 Ω; 48 ohms for DIQn.2
Load resistance range: upper limit 12 kΩ
Output voltage: Type of output voltage DC
Output voltage: for signal "1", min. 23.2 V; L+ (-0.8 V), L+ (-1.3 V) for DIQn.2
Output current: for signal "1" rated value 0.1 A; 0.5 A for DIQn.2
Output current: for signal "1" permissible range, max. 0.12 A; 0.6 A for DIQn.2
Output current: for signal "1" minimum load current 2 mA
Output current: for signal "0" residual current, max. 0.5 mA
Output delay with resistive load: "0" to "1", typ. 1 µs; 28 µs for DIQn.2
Output delay with resistive load: "1" to "0", typ. 1 µs; 25 µs for DIQn.2
Switching frequency: with resistive load, max. 1 kHz; For DIQn.2
Switching frequency: with inductive load, max. 0.5 Hz; According to IEC 60947-5-1, DC-13, for DIQn.2
Switching frequency: on lamp load, max. 10 Hz; For DIQn.2
Switching frequency: For signal interface 24 V asymmetrical 200 kHz; With DQn.0 and DQn.1
Switching frequency: For signal interface RS 422 symmetrical 1 MHz
Switching frequency: For signal interface TTL (5 V) asymmetrical 200 kHz
Cable length: shielded, max. 600 m; Cable length, RS 422 / TTL Siemens Type 6FX2001-5: 125 kHz, 320 meters shielded, max.; 250 kHz, 160 meters shielded, max.; 500 kHz, 60 meters shielded, max.; 1 MHz, 32 meters shielded, max. 24 V (DQn.x / DIQn.2): 10 kHz, 600 meters, shielded, max. 200 kHz, 50 meters shielded, max.

Isochronous mode 2

Bus cycle time (TDP), min. 250 µs; 375 µs if all 4 channels are used
Jitter, max. 1 µs

Interrupts/diagnostics/status information 11

Diagnostics function Yes
Alarms: Diagnostic alarm Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Short-circuit Yes; Thermal overload protection
Diagnoses: Group error Yes
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: MAINT LED Yes; Yellow LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: Between the channels and load voltage L+ No

Isolation 1

Isolation tested with 707 V DC (type test)

Ambient conditions 3

Ambient temperature during operation: horizontal installation, min. 0 °C
Ambient temperature during operation: vertical installation, min. 0 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200MP system manual

Decentralized operation 5

to SIMATIC S7-300 Yes; Via control and feedback interface
to SIMATIC S7-400 Yes; Via control and feedback interface
to SIMATIC S7-1200 Yes
to SIMATIC S7-1500 Yes
to standard PROFINET controller Yes; Via control and feedback interface

Dimensions 3

Width 35 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 300 g

EClass 8 27-24-22-05 4

eClass 7.1 27-24-22-05
ETIM 10 EC001422
IDEA 4 3567
UNSPSC 15 32-15-17-05

Logistics 6

Net weight 0.411 kg
Country of origin DE
Shipping weight 0.911 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 01 Nov 2026
