Part number
6ES7550-1AA01-0AB0
Model no
TM Count 2x24V
$703.80 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC S7-1500

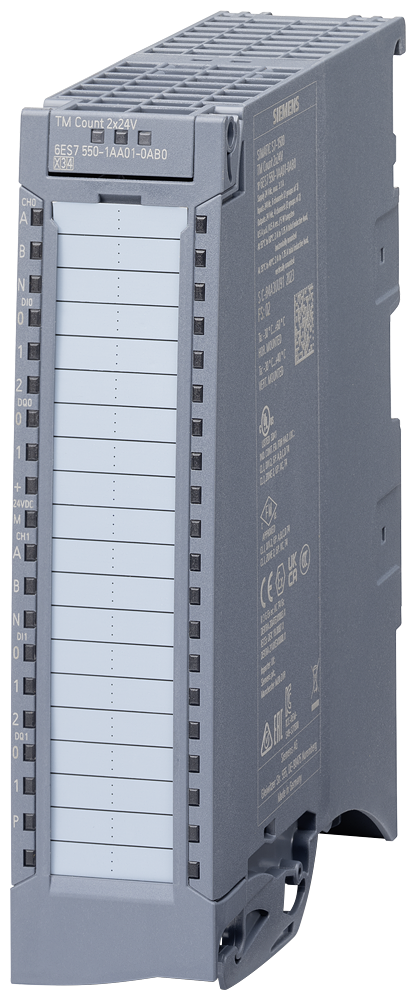

Siemens 6ES7550-1AA01-0AB0 SIMATIC S7-1500 TM Count 2x24V 800kHz PLC I/O Module

SIMATIC S7-1500 TM Count 2x24V, 2 counter channels, 800kHz quadruple evaluation, 6 DI/4 DO

Rated current
0.5 A
Rated operational voltage
24 V AC
Communication
to standard PROFIBUS master, to standard PROFINET controller
EAN
4047623411260
Description

About the TM Count 2x24V

The Siemens SIMATIC S7-1500 TM Count 2x24V technology module (6ES7550-1AA01-0AB0) provides 2 independent counter channels for 24 V incremental or pulse encoders, each reaching 800 kHz counting frequency with quadruple evaluation from a 200 kHz raw input. Each channel also adds 3 digital inputs and 2 digital outputs for gating, capture, and comparator-driven switching.

Selection Notes

Two independent 24 V counter channels each handle 800 kHz with quadruple evaluation, four times the 200 kHz raw input frequency, which covers most incremental encoders used for length and position feedback without an external counter card. Each channel carries its own 3 DI / 2 DO set for gate start/stop, capture, and comparator-triggered switching, so channel-level logic such as stop-on-position runs without added CPU cycle latency. A shared 24 V encoder supply rated at 1 A total powers both channels, so check combined encoder current draw against that budget before wiring two encoders at once.

Applications

Position and length measurement on S7-1500 Motion Control axes, cut-to-length machines, and packaging equipment that use incremental or pulse encoders and need channel-level gating or capture without CPU involvement.

Specification

Full specification

155 values · Last verified 01 Nov 2026

General information 8

Product type designation TM Count 2x24V
Firmware version V2.0
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version V16 with HSP 0332 / V17
Engineering with: PROFIBUS from GSD version/GSD revision GSD Revision 5
Engineering with: PROFINET from GSD version/GSD revision V2.3 / -

Installation type/mounting 1

Rail mounting Yes; S7-1500 mounting rail

Supply voltage 4

Load voltage L+: Rated value (DC) 24 V
Load voltage L+: permissible range, lower limit (DC) 19.2 V
Load voltage L+: permissible range, upper limit (DC) 28.8 V
Load voltage L+: Reverse polarity protection Yes
Show all 155 specifications ↓ Show less ↑142 more values in Identification, Input current, Encoder supply, Power, Power loss, Address area, Digital inputs, Digital outputs, Encoder, Interrupts/diagnostics/status information, Integrated Functions, Potential separation, Isolation, Ambient conditions, Decentralized operation, Dimensions, Weights, ETIM 8 EC001422, Logistics.

Identification 10

Part number 6ES7550-1AA01-0AB0
Type designation TM Count 2x24V
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623411260
ETIM class EC001422
eCl@ss 27242205

Input current 1

Current consumption, max. 75 mA; without load

Encoder supply 4

Number of outputs 1; A common 24V encoder supply for both channels
24 V encoder supply: 24 V Yes; L+ (-0.8 V)
24 V encoder supply: Short-circuit protection Yes
24 V encoder supply: Output current, max. 1 A; total current of all encoders/channels

Power 1

Power consumption from the backplane bus 1.3 W

Power loss 1

Power loss, typ. 4 W

Address area 2

Address space per module: Inputs 32 byte; 16 bytes per channel; 4 bytes for fast mode
Address space per module: Outputs 24 byte; 12 bytes per channel; 4 bytes for Motion Control, 0 bytes for fast mode

Digital inputs 18

Number of digital inputs 6; 3 per channel
Digital inputs, parameterizable Yes
Input characteristic curve in accordance with IEC 61131, type 3 Yes
Digital input functions, parameterizable: Gate start/stop Yes
Digital input functions, parameterizable: Capture Yes
Digital input functions, parameterizable: Synchronization Yes
Digital input functions, parameterizable: Freely usable digital input Yes
Digital input functions, parameterizable: Probe Yes
Input voltage: Type of input voltage DC
Input voltage: Rated value (DC) 24 V
Input voltage: for signal "0" -5 ... +5 V
Input voltage: for signal "1" +11 to +30V
Input voltage: permissible voltage at input, min. -30 V; -5 V continuous, -30 V brief reverse polarity protection
Input voltage: permissible voltage at input, max. 30 V
Input current: for signal "1", typ. 2.5 mA
Input delay (for rated value of input voltage) for standard inputs: parameterizable for technological functions Yes; none / 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms
Cable length: shielded, max. 1 000 m
Cable length: unshielded, max. 600 m

Digital outputs 27

Type of digital output Transistor
Number of digital outputs 4; 2 per channel
Digital outputs, parameterizable Yes
Short-circuit protection Yes; electronic/thermal
Response threshold, typ. 1 A
Limitation of inductive shutdown voltage to L+ (-53 V)
Controlling a digital input Yes
Digital output functions, parameterizable: Switching tripped by comparison values Yes
Digital output functions, parameterizable: Freely usable digital output Yes
Switching capacity of the outputs: with resistive load, max. 0.5 A; Per digital output
Switching capacity of the outputs: on lamp load, max. 5 W
Load resistance range: lower limit 48 Ω
Load resistance range: upper limit 12 kΩ
Output voltage: Type of output voltage DC
Output voltage: for signal "1", min. 23.2 V; L+ (-0.8 V)
Output current: for signal "1" rated value 0.5 A; Per digital output
Output current: for signal "1" permissible range, max. 0.6 A; Per digital output
Output current: for signal "1" minimum load current 2 mA
Output current: for signal "0" residual current, max. 0.5 mA
Output delay with resistive load: "0" to "1", max. 50 µs
Output delay with resistive load: "1" to "0", max. 50 µs
Switching frequency: with resistive load, max. 10 kHz
Switching frequency: with inductive load, max. 0.5 Hz; Acc. to IEC 60947-5-1, DC-13; observe derating curve
Switching frequency: on lamp load, max. 10 Hz
Total current of the outputs: Current per module, max. 2 A
Cable length: shielded, max. 1 000 m
Cable length: unshielded, max. 600 m

Encoder 11

Connectable encoders: 2-wire sensor Yes
Connectable encoders: permissible quiescent current (2-wire sensor), max. 1.5 mA
Encoder signals, incremental encoder (asymmetrical): Input voltage 24 V
Encoder signals, incremental encoder (asymmetrical): Input frequency, max. 200 kHz
Encoder signals, incremental encoder (asymmetrical): Counting frequency, max. 800 kHz; with quadruple evaluation
Encoder signals, incremental encoder (asymmetrical): Cable length, shielded, max. 600 m; depending on input frequency, encoder and cable quality; max. 50 m at 200 kHz
Encoder signals, incremental encoder (asymmetrical): Signal filter, parameterizable Yes
Encoder signals, incremental encoder (asymmetrical): Incremental encoder with A/B tracks, 90° phase offset Yes
Encoder signals, incremental encoder (asymmetrical): pulse encoder Yes
Interface types: Sourcing/sinking input Yes
Interface types: Input characteristic curve in accordance with IEC 61131, type 3 Yes

Interrupts/diagnostics/status information 12

Alarms: Diagnostic alarm Yes
Alarms: Hardware interrupt Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes
Diagnoses: Short-circuit Yes
Diagnoses: A/B transition error at incremental encoder Yes
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: MAINT LED Yes; Yellow LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED

Integrated Functions 28

Counter Yes
Number of counters 2
Counting frequency, max. 800 kHz; with quadruple evaluation
Fast mode Yes
Counting functions: Can be used with TO High_Speed_Counter Yes
Counting functions: Continuous counting Yes
Counting functions: Counter response parameterizable Yes
Counting functions: Hardware gate via digital input Yes
Counting functions: Software gate Yes
Counting functions: Event-controlled stop Yes
Counting functions: Synchronization via digital input Yes
Counting functions: Counting range, parameterizable Comparator Yes
Counting functions: Number of comparators 2; Per channel
Counting functions: Direction dependency Yes
Counting functions: Can be changed from user program Yes
Position detection: Incremental acquisition Yes
Position detection: Suitable for S7-1500 Motion Control Yes
Position detection: suitable for SIMOTION Yes
Measuring functions: Measuring time, parameterizable Yes
Measuring functions: Dynamic measurement period adjustment Yes
Measuring functions: Number of thresholds, parameterizable Measuring range 2
Measuring functions: Frequency measurement, min. 0.04 Hz
Measuring functions: Frequency measurement, max. 800 kHz
Measuring functions: Cycle duration measurement, min. 1.25 µs
Measuring functions: Cycle duration measurement, max. Accuracy 25 s
Measuring functions: Frequency measurement 100 ppm; depending on measuring interval and signal evaluation
Measuring functions: Cycle duration measurement 100 ppm; depending on measuring interval and signal evaluation
Measuring functions: Velocity measurement 100 ppm; depending on measuring interval and signal evaluation

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: Between the channels and load voltage L+ No

Isolation 1

Isolation tested with 707 V DC (type test)

Ambient conditions 4

Ambient temperature during operation: horizontal installation, min. -30 °C
Ambient temperature during operation: vertical installation, min. -30 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200MP system manual
Absolute humidity: dew point, min. -60 °C; suitable for dry room applications

Decentralized operation 6

to SIMATIC S7-300 Yes
to SIMATIC S7-400 Yes
to SIMATIC S7-1200 Yes
to SIMATIC S7-1500 Yes
to standard PROFIBUS master Yes
to standard PROFINET controller Yes

Dimensions 3

Width 35 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 250 g

ETIM 8 EC001422 3

ETIM 7 EC001422
IDEA 4 3567
UNSPSC 15 32-15-17-05

Logistics 6

Net weight 0.357 kg
Country of origin DE
Shipping weight 0.857 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7550-1AA01-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the TM Count 2x24V

What is the rated current of TM Count 2x24V?

The rated current of TM Count 2x24V is 0.5 A.

Which supply voltage is TM Count 2x24V rated for?

The rated operational voltage of TM Count 2x24V is 24 V AC.

What is the HS code of TM Count 2x24V for customs?

The tariff (HS) code on file for TM Count 2x24V is 85389091.

What is the EAN of TM Count 2x24V?

The EAN (GTIN) of TM Count 2x24V is 4047623411260.

Where does TM Count 2x24V ship from, and how fast?

TM Count 2x24V ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
