SIMATIC S7-1500

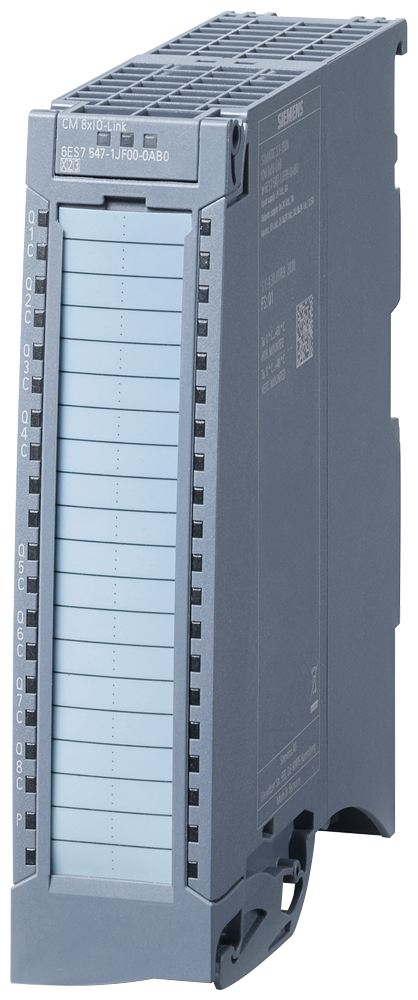

Siemens 6ES7547-1JF00-0AB0 SIMATIC S7-1500 CM 8xIO-Link 8-Port IO-Link Master Communication Module

SIMATIC S7-1500 CM 8xIO-Link module, 8-port IO-Link V1.1 master, 24V DC, 1A per port.

Rated current
1 A
Rated operational voltage
24 V AC
Communication
IO-Link V1.0/V1.1, 8 ports
EAN
4047623409946
Description

About the CM 8xIO-Link

The Siemens 6ES7547-1JF00-0AB0 is a SIMATIC S7-1500 CM 8xIO-Link communication module, an 8-port IO-Link V1.1 master supporting IO-Link protocols 1.0 and 1.1 with up to 8 ports simultaneously controllable. It runs on 24 V DC, 20.4 to 28.8 V, delivers 1 A per port with 4 A total current per module, and mounts directly on the S7-1500 rail.

Selection Notes

All 8 IO-Link ports are simultaneously controllable at a 2 ms minimum cycle time, so a fully populated module updates every port without a scan-time penalty for using more channels. Each port carries 1 A, 4 A total per module, enough for most IO-Link sensors and small pneumatic valve terminals but a figure worth checking against actuator inrush current on multi-actuator ports. Master backup stores IO-Link device configurations on the module itself, so a failed sensor can be swapped without re-downloading parameters from the CPU. Ports left unused for IO-Link communication can be parameterized as plain 24 V digital inputs instead.

Applications

Connecting IO-Link V1.1 sensors and actuators, photoelectric sensors, pressure switches, and small valve terminals directly to the S7-1500 backplane without a separate fieldbus gateway, with per-port diagnostics for wire break, short-circuit, and supply voltage monitoring.

Specification

Full specification

77 values · Last verified 01 Nov 2026

General information 13

Product type designation CM 8xIO-Link
HW functional status FS04
Firmware version V1.0.2
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Engineering with: STEP 7 TIA Portal configurable/integrated from version V15.1 with HSP 274
Engineering with: STEP 7 configurable/integrated from version Configurable via GSD file
Engineering with: PROFIBUS from GSD version/GSD revision GSD as of Revision 5
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.34
Operating mode: IO-Link Yes
Operating mode: DI Yes
Operating mode: DQ No

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes

Input current 1

Current consumption, max. 50 mA; without load
Show all 77 specifications ↓ Show less ↑59 more values in Identification, Encoder supply, Power, IO-Link, Interrupts/diagnostics/status information, Potential separation, Isolation, Ambient conditions, Dimensions, ETIM 9 EC001423, Logistics.

Identification 10

Part number 6ES7547-1JF00-0AB0
Type designation CM 8xIO-Link
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623409946
ETIM class EC001423
eCl@ss 27242208

Encoder supply 3

Number of outputs 8
Output current: Rated value 1 A; 4 A total current per module
24 V encoder supply: Short-circuit protection Yes; per channel, electronic

Power 1

Power consumption from the backplane bus 1.1 W

Interrupts/diagnostics/status information 9

Alarms: Diagnostic alarm Yes; The port diagnosis is available in the IO-Link mode only.
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes
Diagnoses: Short-circuit Yes
Diagnoses: Group error Yes
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; red LED

Potential separation 2

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes

Isolation 1

Isolation tested with 707 V DC (type test)

Ambient conditions 3

Ambient temperature during operation: horizontal installation, min. -30 °C
Ambient temperature during operation: vertical installation, min. -30 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Dimensions 3

Width 35 mm
Height 147 mm
Depth 129 mm

ETIM 9 EC001423 3

ETIM 8 EC001423
IDEA 4 3564
UNSPSC 15 32-15-17-05

Logistics 6

Net weight 0.302 kg
Country of origin DE
Shipping weight 0.802 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026
