Part number
6ES7532-5ND00-0AB0
Model no
AQ 4xU/I HF
$986.36 In stock · 21 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC S7-1500

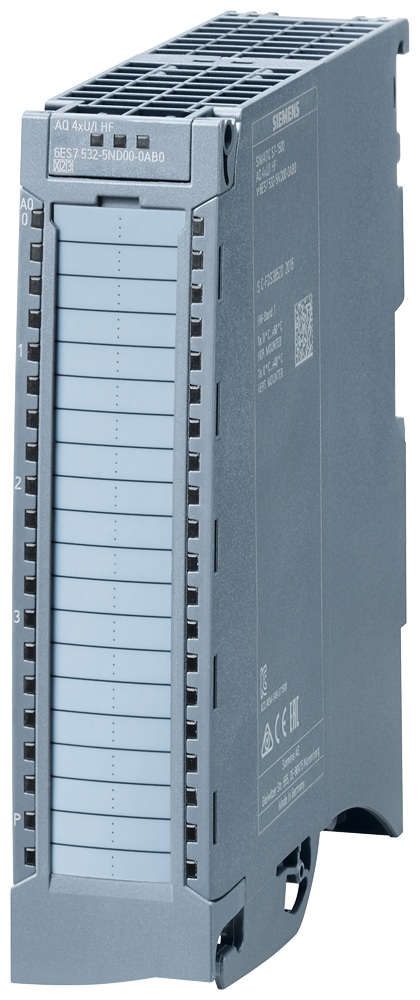

Siemens 6ES7532-5ND00-0AB0 SIMATIC S7-1500 AQ 4xU/I HF 16-Bit Analog Output PLC I/O Module

Siemens 6ES7532-5ND00-0AB0 SIMATIC S7-1500 AQ 4xU/I HF, 4-channel 16-bit analog output, SIL2/PL d capable.

Rated operational voltage
24 V AC
Communication
PROFINET/PROFIBUS via CPU backplane, isochronous mode
Display
RUN/ERROR/PWR/Channel status LEDs
EAN
4047623406556
Description

About the AQ 4xU/I HF

The Siemens 6ES7532-5ND00-0AB0 is a SIMATIC S7-1500 analog output module, type AQ 4xU/I HF, providing 4 configurable voltage or current channels at 16-bit resolution with a minimum 125 microsecond conversion time per channel. It supports safety-oriented shutdown up to SIL2 per IEC 62061 and Category 3/PL d per ISO 13849-1, with channel-to-channel and channel-to-bus isolation.

Selection Notes

The 4xU/I designation means each of the 4 channels is individually configurable for voltage, 0-10V/1-5V/-10 to +10V, or current, 0-20mA/-20 to +20mA/4-20mA, output rather than fixed to one type - decide per channel at commissioning rather than at order time. The Cat. 3/PL d and SIL2 safety-oriented shutdown rating, from FS03, means this module can be used for safety-related load groups without a separate fail-safe I/O module, which is the deciding factor over a standard AQ module when the application needs functional safety on the output side. Configuration-in-RUN support for both reparameterization and calibration allows range changes without stopping the CPU.

Applications

Analog actuator control in S7-1500 systems needing mixed voltage or current outputs per channel, including safety-related load groups such as valves or drives that require SIL2/PL d shutdown without a dedicated fail-safe module.

Specification

Full specification

118 values · Last verified 01 Nov 2026

General information 14

Product type designation AQ 4xU/I HF
HW functional status from FS01
Firmware version V1.1.0
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode Yes
Product function: Prioritized startup Yes
Product function: Output range scalable No
Engineering with: STEP 7 TIA Portal configurable/integrated from version V14 / -
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PROFIBUS from GSD version/GSD revision V1.0 / V5.1
Engineering with: PROFINET from GSD version/GSD revision V2.3 / -
Operating mode: Oversampling No
Operating mode: MSO Yes

CiR - Configuration in RUN 2

Reparameterization possible in RUN Yes
Calibration possible in RUN Yes

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Show all 118 specifications ↓ Show less ↑98 more values in Identification, Input current, Power, Power loss, Analog outputs, Analog value generation for the outputs, Errors/accuracies, (+/-), Isochronous mode, Interrupts/diagnostics/status information, Potential separation, Permissible potential difference, Isolation, Standards, approvals, certificates, Security, Ambient conditions, Dimensions, Weights, Version Classification, For use in hazard-Maritime application ous locations, Logistics.

Identification 10

Part number 6ES7532-5ND00-0AB0
Type designation AQ 4xU/I HF
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623406556
ETIM class EC001420
eCl@ss 27242201

Input current 1

Current consumption, max. 160 mA

Power 1

Power consumption from the backplane bus 0.95 W

Power loss 1

Power loss, typ. 5 W

Analog outputs 19

Number of analog outputs 4
Voltage output, short-circuit protection Yes
Voltage output, short-circuit current, max. 24 mA
Current output, no-load voltage, max. 22 V
Cycle time (all channels), min. 125 µs; independent of number of activated channels
Analog output with oversampling No
Output ranges, voltage: 0 to 10 V Yes
Output ranges, voltage: 1 V to 5 V Yes
Output ranges, voltage: -5 V to +5 V No
Output ranges, voltage: -10 V to +10 V Yes
Output ranges, current: 0 to 20 mA Yes
Output ranges, current: -20 mA to +20 mA Yes
Output ranges, current: 4 mA to 20 mA Yes
Connection of actuators: for voltage output two-wire connection Yes
Connection of actuators: for voltage output four-wire connection Yes
Connection of actuators: for current output two-wire connection Yes
Load impedance (in rated range of output): with voltage outputs, min. 1 kΩ; 0.5 kOhm at 1 to 5 V
Load impedance (in rated range of output): with current outputs, max. 750 Ω
Cable length: shielded, max. 800 m; for current, 200 m for voltage

Analog value generation for the outputs 5

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Conversion time (per channel) 125 µs; independent of number of activated channels
Settling time: for resistive load 0.2 ms; see additional description in the manual
Settling time: for capacitive load 1.8 ms; see additional description in the manual
Settling time: for inductive load 2 ms; see additional description in the manual

Errors/accuracies 1

Output ripple (relative to output range, bandwidth 0 to 50 kHz), 0.02 %

(+/-) 9

Linearity error (relative to output range), (+/-) 0.015 %
Temperature error (relative to output range), (+/-) 0.002 %/K
Crosstalk between the outputs, max. -100 dB
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) 0.005 %
note regarding accuracy at temperatures below 0 °C, the figures for operating error and temperature error are doubled
Operational error limit in overall temperature range: Voltage, relative to output range, (+/-) ±10 V; 0 V to 10 V: ±0.12%; 1 V to 5 V: ±0.1%
Operational error limit in overall temperature range: Current, relative to output range, (+/-) ±20 mA; 0 mA to 20 mA: ±0.2%; 4 mA to 20 mA: ±0.12%
Basic error limit (operational limit at 25 °C): Voltage, relative to output range, (+/-) 0.06 %
Basic error limit (operational limit at 25 °C): Current, relative to output range, (+/-) 0.1 %

Isochronous mode 2

Execution and activation time (TCO), min. 100 µs
Bus cycle time (TDP), min. 250 µs

Interrupts/diagnostics/status information 13

Diagnostics function Yes
Substitute values connectable Yes
Alarms: Diagnostic alarm Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; Only for output type "current"
Diagnoses: Short-circuit Yes; Only for output type "voltage"
Diagnoses: Overflow/Underflow Yes
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; red LED

Potential separation 4

Potential separation channels: between the channels Yes
Potential separation channels: between the channels, in groups of 1
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: Between the channels and load voltage L+ Yes

Permissible potential difference 1

between different circuits 60 V DC/30 V AC; insulation rated for 120 V AC basic insulation: between the channels and the supply voltage L+; between the channels and the backplane bus; between the channels

Isolation 1

Isolation tested with 2 000 V DC between the channels and the supply voltage L+; 2 000 V DC between the channels and the backplane bus; 2 000 V DC between the channels; 707 V DC (type test) between the supply voltage L+ and the backplane bus

Standards, approvals, certificates 8

Siemens Eco Profile (SEP) Siemens EcoTech
Suitable for safety-related tripping of standard modules Yes; From FS03
Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 37.6 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 11.1 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 26.8 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -0.364 kg
Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 PL d

Security 3

signed firmware update No
securely removing data No
data integrity No

Ambient conditions 4

Ambient temperature during operation: horizontal installation, min. -25 °C; From FS02
Ambient temperature during operation: vertical installation, min. -25 °C; From FS02
Altitude during operation relating to sea level: Installation altitude above sea level, max. 2 000 m
Absolute humidity: dew point, min. -60 °C; suitable for dry room applications

Dimensions 3

Width 35 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 300 g

Version Classification 4

eClass 16 27-24-22-01
ETIM 10 EC001420
IDEA 4 3562
UNSPSC 15 32-15-17-05

For use in hazard-Maritime application ous locations 1

CCC-Ex NK / Nippon Kaiji Ky- okai

Logistics 6

Net weight 0.412 kg
Country of origin DE
Shipping weight 0.912 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7532-5ND00-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the AQ 4xU/I HF

Which supply voltage is AQ 4xU/I HF rated for?

The rated operational voltage of AQ 4xU/I HF is 24 V AC.

What is the HS code of AQ 4xU/I HF for customs?

The tariff (HS) code on file for AQ 4xU/I HF is 85389091.

What is the EAN of AQ 4xU/I HF?

The EAN (GTIN) of AQ 4xU/I HF is 4047623406556.

Where does AQ 4xU/I HF ship from, and how fast?

AQ 4xU/I HF ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
