Part number
6ES7532-5HD00-0AB0
Model no
AQ 4xU/I ST
$718.29 In stock · 34 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC S7-1500

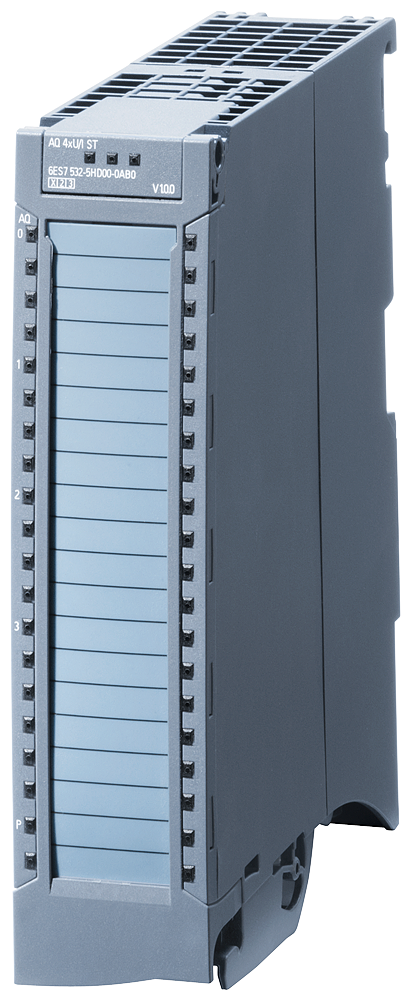

Siemens 6ES7532-5HD00-0AB0 SIMATIC S7-1500 AQ 4xU/I ST Analog Output Module 16-bit PLC I/O Module

SIMATIC S7-1500 AQ 4xU/I ST: 4 analog outputs, 16-bit, voltage or current per channel.

Rated operational voltage
24 V DC
EAN
4025515080022
Description

About the AQ 4xU/I ST

The Siemens 6ES7532-5HD00-0AB0 is a SIMATIC S7-1500 analog output module, AQ 4xU/I ST, with 4 channels individually configurable for voltage (0-10V, 1-5V, +/-10V) or current (0-20mA, 4-20mA, +/-20mA) output at 16-bit resolution and 0.3% basic error limit. It supports safety-related load-group shutdown up to SIL2 / PL d Cat.3, and front connectors must be ordered separately.

Selection Notes

The dual voltage/current output capability per channel means one module covers both 0-10V setpoint inputs and 4-20mA transmitter-style outputs without stocking separate module variants - the range is set per channel in TIA Portal, not by hardware jumper. CiR support (reparameterization and calibration in RUN) matters on lines that can't tolerate a controller stop to retune an output range. As with the digital I/O in the same S7-1500 family, the SIL 2 / PL d Cat. 3 safety-related shutdown is only relevant when the output feeds a safety function.

Applications

Driving proportional valves, VFD speed references, and analog transmitters or indicators from a SIMATIC S7-1500 station where both voltage and current output ranges are needed across a process.

Specification

Full specification

101 values · Last verified 01 Nov 2026

General information 14

Product type designation AQ 4xU/I ST
HW functional status from FS04
Firmware version V2.2.0
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: Prioritized startup No
Product function: Output range scalable No
Engineering with: STEP 7 TIA Portal configurable/integrated from version V12 / V12
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PROFIBUS from GSD version/GSD revision V1.0 / V5.1
Engineering with: PROFINET from GSD version/GSD revision V2.3 / -
Operating mode: Oversampling No
Operating mode: MSO Yes

CiR - Configuration in RUN 2

Reparameterization possible in RUN Yes
Calibration possible in RUN Yes

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Show all 101 specifications ↓ Show less ↑81 more values in Identification, Input current, Power, Power loss, Analog outputs, Analog value generation for the outputs, Errors/accuracies, (+/-), Interrupts/diagnostics/status information, Potential separation, Permissible potential difference, Isolation, Security, Ambient conditions, Dimensions, Weights, General Product Approval, Logistics.

Identification 10

Part number 6ES7532-5HD00-0AB0
Type designation AQ 4xU/I ST
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4025515080022
ETIM class EC001420
eCl@ss 27242201

Input current 1

Current consumption, max. 190 mA; with 24 V DC supply

Power 1

Power consumption from the backplane bus 0.6 W

Power loss 1

Power loss, typ. 4 W

Analog outputs 18

Number of analog outputs 4
Voltage output, short-circuit protection Yes
Voltage output, short-circuit current, max. 24 mA
Current output, no-load voltage, max. 22 V
Cycle time (all channels), min. 3.2 ms; independent of number of activated channels
Output ranges, voltage: 0 to 10 V Yes
Output ranges, voltage: 1 V to 5 V Yes
Output ranges, voltage: -5 V to +5 V No
Output ranges, voltage: -10 V to +10 V Yes
Output ranges, current: 0 to 20 mA Yes
Output ranges, current: -20 mA to +20 mA Yes
Output ranges, current: 4 mA to 20 mA Yes
Connection of actuators: for voltage output two-wire connection Yes
Connection of actuators: for voltage output four-wire connection Yes
Connection of actuators: for current output two-wire connection Yes
Load impedance (in rated range of output): with voltage outputs, min. 1 kΩ; 0.5 kOhm at 1 to 5 V
Load impedance (in rated range of output): with current outputs, max. 750 Ω
Cable length: shielded, max. 800 m; for current, 200 m for voltage

Analog value generation for the outputs 5

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Conversion time (per channel) 0.5 ms
Settling time: for resistive load 1.5 ms
Settling time: for capacitive load 2.5 ms
Settling time: for inductive load 2.5 ms

Errors/accuracies 1

Output ripple (relative to output range, bandwidth 0 to 50 kHz), 0.02 %

(+/-) 8

Linearity error (relative to output range), (+/-) 0.15 %
Temperature error (relative to output range), (+/-) 0.002 %/K
Crosstalk between the outputs, max. -100 dB
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) 0.05 %
Operational error limit in overall temperature range: Voltage, relative to output range, (+/-) 0.3 %
Operational error limit in overall temperature range: Current, relative to output range, (+/-) 0.3 %
Basic error limit (operational limit at 25 °C): Voltage, relative to output range, (+/-) 0.2 %
Basic error limit (operational limit at 25 °C): Current, relative to output range, (+/-) 0.2 %

Interrupts/diagnostics/status information 13

Diagnostics function Yes
Substitute values connectable Yes
Alarms: Diagnostic alarm Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; Only for output type "current"
Diagnoses: Short-circuit Yes; Only for output type "voltage"
Diagnoses: Overflow/Underflow Yes
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; red LED

Potential separation 4

Potential separation channels: between the channels No
Potential separation channels: between the channels, in groups of 4
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: Between the channels and load voltage L+ Yes

Permissible potential difference 1

between S- and MANA (UCM) 8 V DC

Isolation 1

Isolation tested with 707 V DC (type test)

Security 2

signed firmware update No
data integrity No

Ambient conditions 3

Ambient temperature during operation: horizontal installation, min. -30 °C; From FS06
Ambient temperature during operation: vertical installation, min. -30 °C; From FS06
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Dimensions 3

Width 35 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 310 g

General Product Approval 2

Miscellaneous Metrological Approval For use in hazard-
General Product Approval ous locations

Logistics 6

Net weight 0.404 kg
Country of origin DE
Shipping weight 0.904 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026
