SIMATIC S7-1500

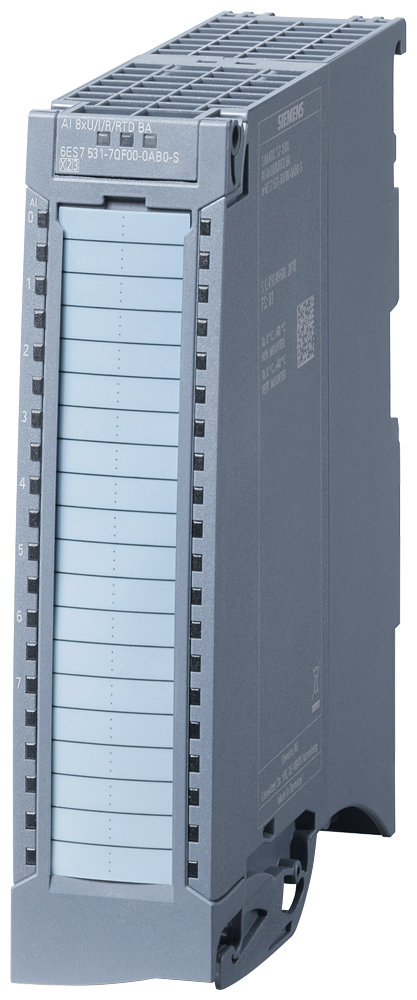

Siemens 6ES7531-7QF00-0AB0 SIMATIC S7-1500 AI 8xU/I/R/RTD BA 16-Bit Analog Input Module

S7-1500 analog input module, 8x U/I/R/RTD channels, 16-bit resolution, 0.5% accuracy.

Product type designation
AI 8xU/I/R/RTD BA
HW functional status
FS01
Firmware version
V1.0.0
FW update possible
Yes
Product function: I&M data
Yes; I&M0 to I&M3
Product function: Prioritized startup
No
EAN
4047623410423
Description

About the AI 8xU/I/R/RTD BA

The Siemens SIMATIC S7-1500 AI 8xU/I/R/RTD BA (6ES7531-7QF00-0AB0) is an 8-channel universal analog input module with 16-bit resolution and 0.5% operational error limit. Each channel is individually configurable for voltage, current, resistance, or RTD-style resistance-thermometer measurement, grouped in a single block of 8, with support for Pt100, Pt1000, Ni100, and Ni1000 resistance thermometers plus an address space of 16 bytes per module.

Selection Notes

The BA (basic accuracy) designation puts this module's operational error limit at +/-0.5% across the full temperature range, wider than the S7-1500 HA (high accuracy) analog input modules - choose it for standard process monitoring where 16-bit resolution is enough and the tighter HA tolerance is not required. Because all 8 channels can be individually parameterized, one module can mix, for example, several 4-20 mA transmitters with Pt100 RTDs on the same rack slot instead of splitting them across separate modules.

Applications

Used for process analog monitoring on S7-1500 stations - transmitter loops, RTD temperature sensing, and general voltage or current signal acquisition in a single 8-channel module.

Specification

Full specification

180 values · Last verified 01 Nov 2026

General information 12

Product type designation AI 8xU/I/R/RTD BA
HW functional status FS01
Firmware version V1.0.0
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Prioritized startup No
Engineering with: STEP 7 TIA Portal configurable/integrated from version V15.1 / V16
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PROFIBUS from GSD version/GSD revision V1.0 / V5.1
Engineering with: PROFINET from GSD version/GSD revision V2.3 / -
Operating mode: Oversampling No
Operating mode: MSI Yes

CiR - Configuration in RUN 2

Reparameterization possible in RUN Yes
Calibration possible in RUN No

Power 1

Power consumption from the backplane bus 0.85 W
Show all 180 specifications ↓ Show less ↑165 more values in Identification, Power loss, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Permissible potential difference, Isolation, Security, Ambient conditions, Dimensions, Version Classification, General Product Approval, For use in hazard-Maritime application ous locations, Logistics.

Identification 10

Part number 6ES7531-7QF00-0AB0
Type designation AI 8xU/I/R/RTD BA
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623410423
ETIM class EC001420
eCl@ss 27242201

Power loss 1

Power loss, typ. 0.9 W

Analog inputs 85

Number of analog inputs 8
For current measurement 8
For voltage measurement 8
For resistance/resistance thermometer measurement 8
permissible input voltage for voltage input (destruction limit), max. 12 V; 12 V continuous, 30 V for max. 1 s
permissible input current for current input (destruction limit), max. 40 mA
Constant measurement current for resistance-type transmitter, typ. 230 ... 370 µA
Technical unit for temperature measurement adjustable Yes; °C/°F/K
Input ranges (rated values), voltages: 0 to +5 V No
Input ranges (rated values), voltages: 0 to +10 V No
Input ranges (rated values), voltages: 1 V to 5 V Yes
Input ranges (rated values), voltages: Input resistance (1 V to 5 V) 10 MΩ
Input ranges (rated values), voltages: -1 V to +1 V Yes
Input ranges (rated values), voltages: Input resistance (-1 V to +1 V) 10 MΩ
Input ranges (rated values), voltages: -10 V to +10 V Yes
Input ranges (rated values), voltages: Input resistance (-10 V to +10 V) 10 MΩ
Input ranges (rated values), voltages: -2.5 V to +2.5 V No
Input ranges (rated values), voltages: -25 mV to +25 mV No
Input ranges (rated values), voltages: -250 mV to +250 mV No
Input ranges (rated values), voltages: -5 V to +5 V Yes
Input ranges (rated values), voltages: Input resistance (-5 V to +5 V) 10 MΩ
Input ranges (rated values), voltages: -50 mV to +50 mV Yes
Input ranges (rated values), voltages: Input resistance (-50 mV to +50 mV) 10 MΩ
Input ranges (rated values), voltages: -500 mV to +500 mV Yes
Input ranges (rated values), voltages: Input resistance (-500 mV to +500 mV) 10 MΩ
Input ranges (rated values), voltages: -80 mV to +80 mV No
Input ranges (rated values), currents: 0 to 20 mA Yes
Input ranges (rated values), currents: Input resistance (0 to 20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC
Input ranges (rated values), currents: -20 mA to +20 mA Yes
Input ranges (rated values), currents: Input resistance (-20 mA to +20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC
Input ranges (rated values), currents: 4 mA to 20 mA Yes
Input ranges (rated values), currents: Input resistance (4 mA to 20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC
Input ranges (rated values), thermocouples: type B No
Input ranges (rated values), thermocouples: type C No
Input ranges (rated values), thermocouples: Type E No
Input ranges (rated values), thermocouples: Type J No
Input ranges (rated values), thermocouples: Type K No
Input ranges (rated values), thermocouples: Type L No
Input ranges (rated values), thermocouples: Type N No
Input ranges (rated values), thermocouples: Type R No
Input ranges (rated values), thermocouples: Type S No
Input ranges (rated values), thermocouples: Type T No
Input ranges (rated values), thermocouples: Type U No
Input ranges (rated values), thermocouples: Type TXK/TXK(L) to GOST No
Input ranges (rated values), resistance thermometer: Cu 10 No
Input ranges (rated values), resistance thermometer: Cu 10 according to GOST No
Input ranges (rated values), resistance thermometer: Cu 50 No
Input ranges (rated values), resistance thermometer: Cu 50 according to GOST No
Input ranges (rated values), resistance thermometer: Cu 100 No
Input ranges (rated values), resistance thermometer: Cu 100 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 10 No
Input ranges (rated values), resistance thermometer: Ni 10 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 100 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Input resistance (Ni 100) 10 MΩ
Input ranges (rated values), resistance thermometer: Ni 100 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 1000 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 1000 according to GOST No
Input ranges (rated values), resistance thermometer: LG-Ni 1000 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 120 No
Input ranges (rated values), resistance thermometer: Ni 120 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 200 No
Input ranges (rated values), resistance thermometer: Ni 200 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 500 No
Input ranges (rated values), resistance thermometer: Ni 500 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 10 No
Input ranges (rated values), resistance thermometer: Pt 10 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 50 No
Input ranges (rated values), resistance thermometer: Pt 50 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 100 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 100 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 1000 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 1000 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 200 No
Input ranges (rated values), resistance thermometer: Pt 200 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 500 No
Input ranges (rated values), resistance thermometer: Pt 500 according to GOST No
Input ranges (rated values), resistors: 0 to 150 ohms No
Input ranges (rated values), resistors: 0 to 300 ohms No
Input ranges (rated values), resistors: 0 to 600 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 600 ohms) 10 MΩ
Input ranges (rated values), resistors: 0 to 3000 ohms No
Input ranges (rated values), resistors: 0 to 6000 ohms Yes
Input ranges (rated values), resistors: PTC Yes
Input ranges (rated values), resistors: Input resistance (PTC) 10 MΩ
Cable length: shielded, max. 200 m; 50 m at 50 mV

Analog value generation for the inputs 11

Measurement principle integrating
Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes
Integration and conversion time/resolution per channel: Basic conversion time, including integration time (ms) 10 / 24 / 27 / 107 ms
Integration and conversion time/resolution per channel: additional conversion time for wire-break monitoring 4 ms (to be considered in R/RTD/U 1 to 5 V measurement)
Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz 400 / 60 / 50 / 10 Hz
Smoothing of measured values: parameterizable Yes
Smoothing of measured values: Step: None Yes
Smoothing of measured values: Step: low Yes
Smoothing of measured values: Step: Medium Yes
Smoothing of measured values: Step: High Yes

Encoder 4

Connection of signal encoders: for voltage measurement Yes
Connection of signal encoders: for current measurement as 2-wire transducer Yes; with external supply
Connection of signal encoders: for current measurement as 4-wire transducer Yes
Connection of signal encoders: for resistance measurement with two-wire connection Yes; Only for PTC

Errors/accuracies 12

Linearity error (relative to input range), (+/-) 0.1 %
Temperature error (relative to input range), (+/-) 0.006 %/K
Crosstalk between the inputs, max. -50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.1 %
Operational error limit in overall temperature range: Voltage, relative to input range, (+/-) 0.5 %
Operational error limit in overall temperature range: Current, relative to input range, (+/-) 0.5 %
Operational error limit in overall temperature range: Resistance, relative to input range, (+/-) 0.5 %
Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-) 0.3 %
Basic error limit (operational limit at 25 °C): Current, relative to input range, (+/-) 0.3 %
Basic error limit (operational limit at 25 °C): Resistance, relative to input range, (+/-) 0.3 %
Basic error limit (operational limit at 25 °C): Resistance thermometer, relative to input range, (+/-) Ptxxx Standard: ±1.0 K, Ptxxx Climate: ±0.5 K, Nixxx Standard: ±0.5 K, Nixxx Climate: ±0.5 K
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min. 40 dB

Interrupts/diagnostics/status information 15

Diagnostics function Yes
Alarms: Diagnostic alarm Yes
Alarms: Limit value alarm Yes; two upper and two lower limit values in each case
Diagnoses: Monitoring the supply voltage No
Diagnoses: Wire break Yes; Only for 1 ... 5 V, 4 ... 20 mA, R, and RTD
Diagnoses: Short-circuit No
Diagnoses: Group error No
Diagnoses: Overflow/Underflow Yes
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: MAINT LED No
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) No
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; red LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels, in groups of 8
Potential separation channels: between the channels and backplane bus Yes

Permissible potential difference 2

between the inputs (UCM) 8 V DC
Between the inputs and MANA (UCM) 4 V DC

Isolation 1

Isolation tested with 707 V DC (type test)

Security 2

signed firmware update No
data integrity No

Ambient conditions 3

Ambient temperature during operation: horizontal installation, min. 0 °C
Ambient temperature during operation: vertical installation, min. 0 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Dimensions 2

Width 35 mm
Height 147 mm

Version Classification 4

eClass 16 27-24-22-01
ETIM 10 EC001420
IDEA 4 3562
UNSPSC 15 32-15-17-05

General Product Approval 3

Miscellaneous Manufacturer Declara-tion For use in hazard-
General Product Approval ous locations
China RoHS Manufacturer Declara- tion

For use in hazard-Maritime application ous locations 1

CCC-Ex NK / Nippon Kaiji Ky- okai

Logistics 6

Net weight 0.37 kg
Country of origin DE
Shipping weight 0.87 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7531-7QF00-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the AI 8xU/I/R/RTD BA

What is the HS code of AI 8xU/I/R/RTD BA for customs?

The tariff (HS) code on file for AI 8xU/I/R/RTD BA is 85389091.

What is the EAN of AI 8xU/I/R/RTD BA?

The EAN (GTIN) of AI 8xU/I/R/RTD BA is 4047623410423.

Where does AI 8xU/I/R/RTD BA ship from, and how fast?

AI 8xU/I/R/RTD BA ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.

Guides

Guides for PLC & controllers

All guides for PLC & controllers
Reviews

Customer reviews

Series

Siemens SIMATIC S7-1500

Brand
Siemens
Series
SIMATIC S7-1500
$599.27 In stock · 18 Nov
Quote

Get a Quote

AI 8xU/I/R/RTD BA

Genuine parts

Genuine, factory-sealed parts

Siemens · 6ES7531-7QF00-0AB0

Every part on Stoklink is new, unused and made by the manufacturer named on the page.

Condition
New and unused, in the manufacturer's factory-sealed packaging.
Sourced from
Siemens and its authorised distributors.
Warranty
The manufacturer's warranty applies.
If a part is not genuine
We refund the full amount.

Added to cart Could not add to cart

View cart
