Part number
6ES7531-7QD00-0AB0
Model no
AI 4xU/I/RTD/TC ST
$439.88 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC S7-1500

Siemens 6ES7531-7QD00-0AB0 SIMATIC S7-1500 Analog Input AI 4xU/I/RTD/TC ST 16-bit PLC I/O Module

SIMATIC S7-1500 analog input AI 4xU/I/RTD/TC ST, 4 universal channels, 16-bit, RTD/TC ready.

Rated operational voltage
24 V AC
EAN
4047623403425
Description

About the AI 4xU/I/RTD/TC ST

The Siemens 6ES7531-7QD00-0AB0 is a SIMATIC S7-1500 universal analog input module with 4 channels that each accept voltage, current, RTD, or thermocouple signals at 16-bit resolution, with 2 of the 4 channels usable for resistance thermometers. It ships with a push-in front connector, infeed element, and shield bracket/terminal included, and supports thermocouple types B, E, J, K, N, R, S, and T.

Selection Notes

The ST (standard) module trades the HS module's fixed 62.5 microsecond cycle for multi-signal-type flexibility - voltage, current, RTD, and thermocouple on the same 4 channels - with parameterizable integration times from 2.5 to 100 ms that slow the measurement in exchange for the accuracy needed on RTD and thermocouple readings; pick the AI 8xU/I HS module instead when only voltage/current inputs are needed and fast oversampled sampling matters more than signal-type flexibility.

Applications

Temperature and process-value acquisition where a single module must mix RTD, thermocouple, and standard voltage/current signals - for example furnace or oven zone monitoring, or general process instrumentation on S7-1500.

Specification

Full specification

211 values · Last verified 01 Nov 2026

General information 16

Product type designation AI 4xU/I/RTD/TC ST
HW functional status FS01
Firmware version V1.0.0
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: Prioritized startup No
Product function: Measuring range scalable No
Product function: Scalable measured values No
Product function: Adjustment of measuring range No
Engineering with: STEP 7 TIA Portal configurable/integrated from version V13 / V13.0.2
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PROFIBUS from GSD version/GSD revision V1.0 / V5.1
Engineering with: PROFINET from GSD version/GSD revision V2.3 / -
Operating mode: Oversampling No
Operating mode: MSI Yes

CiR - Configuration in RUN 2

Reparameterization possible in RUN Yes
Calibration possible in RUN Yes

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Show all 211 specifications ↓ Show less ↑189 more values in Identification, Input current, Encoder supply, Power, Power loss, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Permissible potential difference, Isolation, Security, Ambient conditions, Dimensions, Weights, Other, EClass 14 27-24-22-01, General Product Approval, For use in hazard-Maritime application ous locations, Logistics.

Identification 10

Part number 6ES7531-7QD00-0AB0
Type designation AI 4xU/I/RTD/TC ST
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623403425
ETIM class EC001420
eCl@ss 27242201

Input current 1

Current consumption, max. 165 mA

Encoder supply 2

24 V encoder supply: Short-circuit protection Yes
24 V encoder supply: Output current, max. 20 mA; Max. 47 mA per channel for a duration < 10 s

Power 1

Power consumption from the backplane bus 0.7 W

Power loss 1

Power loss, typ. 2.3 W

Analog inputs 100

Number of analog inputs 4
For current measurement 4
For voltage measurement 4
For resistance/resistance thermometer measurement 2
For thermocouple measurement 4
permissible input voltage for voltage input (destruction limit), max. 28.8 V
permissible input current for current input (destruction limit), max. 40 mA
Constant measurement current for resistance-type transmitter, 150 Ohm, 300 Ohm, 600 Ohm, Pt100, Pt200, Ni100: 1.25 mA; 6 000 Ohm,
typ. Pt500, Pt1000, Ni1000, LG-Ni1000: 0.625 mA; PTC: 0.472 mA
Technical unit for temperature measurement adjustable Yes; °C/°F/K
Analog input with oversampling No
Standardization of measured values No
Input ranges (rated values), voltages: 0 to +5 V No
Input ranges (rated values), voltages: 0 to +10 V No
Input ranges (rated values), voltages: 1 V to 5 V Yes
Input ranges (rated values), voltages: Input resistance (1 V to 5 V) 100 kΩ
Input ranges (rated values), voltages: -1 V to +1 V Yes
Input ranges (rated values), voltages: Input resistance (-1 V to +1 V) 10 MΩ
Input ranges (rated values), voltages: -10 V to +10 V Yes
Input ranges (rated values), voltages: Input resistance (-10 V to +10 V) 100 kΩ
Input ranges (rated values), voltages: -2.5 V to +2.5 V Yes
Input ranges (rated values), voltages: Input resistance (-2.5 V to +2.5 V) 10 MΩ
Input ranges (rated values), voltages: -25 mV to +25 mV No
Input ranges (rated values), voltages: -250 mV to +250 mV Yes
Input ranges (rated values), voltages: Input resistance (-250 mV to +250 mV) 10 MΩ
Input ranges (rated values), voltages: -5 V to +5 V Yes
Input ranges (rated values), voltages: Input resistance (-5 V to +5 V) 100 kΩ
Input ranges (rated values), voltages: -50 mV to +50 mV Yes
Input ranges (rated values), voltages: Input resistance (-50 mV to +50 mV) 10 MΩ
Input ranges (rated values), voltages: -500 mV to +500 mV Yes
Input ranges (rated values), voltages: Input resistance (-500 mV to +500 mV) 10 MΩ
Input ranges (rated values), voltages: -80 mV to +80 mV Yes
Input ranges (rated values), voltages: Input resistance (-80 mV to +80 mV) 10 MΩ
Input ranges (rated values), currents: 0 to 20 mA Yes
Input ranges (rated values), currents: Input resistance (0 to 20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC
Input ranges (rated values), currents: -20 mA to +20 mA Yes
Input ranges (rated values), currents: Input resistance (-20 mA to +20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC
Input ranges (rated values), currents: 4 mA to 20 mA Yes
Input ranges (rated values), currents: Input resistance (4 mA to 20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC
Input ranges (rated values), thermocouples: Type B Yes
Input ranges (rated values), thermocouples: Input resistance (Type B) 10 MΩ
Input ranges (rated values), thermocouples: Type C No
Input ranges (rated values), thermocouples: Type E Yes
Input ranges (rated values), thermocouples: Type J Yes
Input ranges (rated values), thermocouples: Type K Yes
Input ranges (rated values), thermocouples: Type L No
Input ranges (rated values), thermocouples: Type N Yes
Input ranges (rated values), thermocouples: Type R Yes
Input ranges (rated values), thermocouples: Type S Yes
Input ranges (rated values), thermocouples: Type T Yes
Input ranges (rated values), thermocouples: Type U No
Input ranges (rated values), thermocouples: Type TXK/TXK(L) to GOST No
Input ranges (rated values), resistance thermometer: Cu 10 No
Input ranges (rated values), resistance thermometer: Cu 10 according to GOST No
Input ranges (rated values), resistance thermometer: Cu 50 No
Input ranges (rated values), resistance thermometer: Cu 50 according to GOST No
Input ranges (rated values), resistance thermometer: Cu 100 No
Input ranges (rated values), resistance thermometer: Cu 100 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 10 No
Input ranges (rated values), resistance thermometer: Ni 10 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 100 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Input resistance (Ni 100) 10 MΩ
Input ranges (rated values), resistance thermometer: Ni 100 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 1000 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 1000 according to GOST No
Input ranges (rated values), resistance thermometer: LG-Ni 1000 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 120 No
Input ranges (rated values), resistance thermometer: Ni 120 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 200 No
Input ranges (rated values), resistance thermometer: Ni 200 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 500 No
Input ranges (rated values), resistance thermometer: Ni 500 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 10 No
Input ranges (rated values), resistance thermometer: Pt 10 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 50 No
Input ranges (rated values), resistance thermometer: Pt 50 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 100 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 100 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 1000 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 1000 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 200 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 200 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 500 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 500 according to GOST No
Input ranges (rated values), resistors: 0 to 150 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 150 ohms) 10 MΩ
Input ranges (rated values), resistors: 0 to 300 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 300 ohms) 10 MΩ
Input ranges (rated values), resistors: 0 to 600 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 600 ohms) 10 MΩ
Input ranges (rated values), resistors: 0 to 3000 ohms No
Input ranges (rated values), resistors: 0 to 6000 ohms Yes
Input ranges (rated values), resistors: PTC Yes
Input ranges (rated values), resistors: Input resistance (PTC) 10 MΩ
Thermocouple (TC) Temperature compensation: Parameterizable Yes
Thermocouple (TC) Temperature compensation: internal temperature compensation Yes
Thermocouple (TC) Temperature compensation: external temperature compensation via RTD Yes
Thermocouple (TC) Temperature compensation: Compensation for 0 °C reference point temperature Yes; fixed value can be set
Thermocouple (TC) Temperature compensation: Reference channel of the module No
Cable length: shielded, max. 800 m; for U/I, 200 m for R/RTD, 50 m for TC

Analog value generation for the inputs 12

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes
Integration and conversion time/resolution per channel: Basic conversion time, including integration time (ms) 9 / 23 / 27 / 107 ms
Integration and conversion time/resolution per channel: additional conversion time for wire-break monitoring 9 ms (to be considered in R/RTD/TC measurement)
measurement Pt1000, Ni1000, LG-Ni1000, PTC: 4 ms
Interference voltage suppression for interference frequency f1 in Hz 400 / 60 / 50 / 10
Time for offset calibration (per module) Basic conversion time of the slowest channel
Smoothing of measured values: parameterizable Yes
Smoothing of measured values: Step: None Yes
Smoothing of measured values: Step: low Yes
Smoothing of measured values: Step: Medium Yes
Smoothing of measured values: Step: High Yes

Encoder 5

Connection of signal encoders: for voltage measurement Yes
Connection of signal encoders: for current measurement as 2-wire transducer Yes
Connection of signal encoders: Burden of 2-wire transmitter, max. 820 Ω
Connection of signal encoders: for current measurement as 4-wire transducer Yes
Connection of signal encoders: for resistance measurement with two-wire connection Yes; Only for PTC

Errors/accuracies 15

Linearity error (relative to input range), (+/-) 0.02 %
Temperature error (relative to input range), (+/-) 0.005 %/K; With TC type T 0.02 ± % / K
Crosstalk between the inputs, max. -80 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.02 %
Temperature error of internal compensation ±6 °C
Operational error limit in overall temperature range: Voltage, relative to input range, (+/-) 0.3 %
Operational error limit in overall temperature range: Current, relative to input range, (+/-) 0.3 %
Operational error limit in overall temperature range: Resistance, relative to input range, (+/-) 0.3 %
Operational error limit in overall temperature range: Thermocouple, relative to input range, (+/-) 0.3 %; Type B: > 600 °C ±4.6 K, type E: > -200 °C ±1.5 K, type J: > -210 °C ±1.9 K, type K: > -200 °C ±2.4 K, type N: > -200 °C ±2.9 K, type R: > 0 °C ±4.7 K, type S: > 0 °C ±4.6 K, type T: > -200 °C ±2.4 K
Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-) 0.1 %
Basic error limit (operational limit at 25 °C): Current, relative to input range, (+/-) 0.1 %
Basic error limit (operational limit at 25 °C): Resistance, relative to input range, (+/-) 0.1 %
Basic error limit (operational limit at 25 °C): Resistance thermometer, relative to input range, (+/-) 0.1 %; Ptxxx standard: ±0.7 K, Ptxxx climate: ±0.2 K, Nixxx standard: ±0.3 K, Nixxx climate: ±0.15 K
Basic error limit (operational limit at 25 °C): Thermocouple, relative to input range, (+/-) 0.1 %; Type B: > 600 °C ±1.7 K, type E: > -200 °C ±0.7 K, type J: > -210 °C ±0.8 K, type K: > -200 °C ±1.2 K, type N: > -200 °C ±1.2 K, type R: > 0 °C ±1.9 K, type S: > 0 °C ±1.9 K, type T: > -200 °C ±0.8 K
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min. 40 dB

Interrupts/diagnostics/status information 12

Diagnostics function Yes
Alarms: Diagnostic alarm Yes
Alarms: Limit value alarm Yes; two upper and two lower limit values in each case
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; Only for 1 to 5 V, 4 to 20 mA, TC, R, and RTD
Diagnoses: Overflow/Underflow Yes
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; red LED

Potential separation 4

Potential separation channels: between the channels No
Potential separation channels: between the channels, in groups of 4
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics Yes

Permissible potential difference 2

between the inputs (UCM) 20 V DC
Between the inputs and MANA (UCM) 10 V DC

Isolation 1

Isolation tested with 707 V DC (type test)

Security 2

signed firmware update No
data integrity No

Ambient conditions 3

Ambient temperature during operation: horizontal installation, min. 0 °C
Ambient temperature during operation: vertical installation, min. 0 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Dimensions 3

Width 25 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 210 g

Other 1

Note: Supplied incl. 40-pole push-in front connectors. Additional basic error and noise for integration time = 2.5 ms: Voltage: ±250 mV (±0.02%), ±80 mV (±0.05%), ±50 mV (±0.05%); resistance: 150 Ohms (±0.02%); resistance thermometer: Pt100 climate: ±0.08 K, Ni100 climate: ±0.08 K; thermoelement: Type B, R, S: ±3 K, type E, J, K, N, T: ±1 K

EClass 14 27-24-22-01 4

eClass 12 27-24-22-01
ETIM 10 EC001420
IDEA 4 3562
UNSPSC 15 32-15-17-05

General Product Approval 2

Miscellaneous Metrological Approval For use in hazard-
General Product Approval ous locations

For use in hazard-Maritime application ous locations 1

CCC-Ex NK / Nippon Kaiji Ky- okai

Logistics 6

Net weight 0.386 kg
Country of origin DE
Shipping weight 0.886 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7531-7QD00-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the AI 4xU/I/RTD/TC ST

Which supply voltage is AI 4xU/I/RTD/TC ST rated for?

The rated operational voltage of AI 4xU/I/RTD/TC ST is 24 V AC.

What is the HS code of AI 4xU/I/RTD/TC ST for customs?

The tariff (HS) code on file for AI 4xU/I/RTD/TC ST is 85389091.

What is the EAN of AI 4xU/I/RTD/TC ST?

The EAN (GTIN) of AI 4xU/I/RTD/TC ST is 4047623403425.

Where does AI 4xU/I/RTD/TC ST ship from, and how fast?

AI 4xU/I/RTD/TC ST ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.

Guides

Guides for PLC & controllers

All guides for PLC & controllers
Reviews

Customer reviews

Series

Siemens SIMATIC S7-1500

Brand
Siemens
Series
SIMATIC S7-1500
$439.88 Low stock · 18 Nov
Quote

Get a Quote

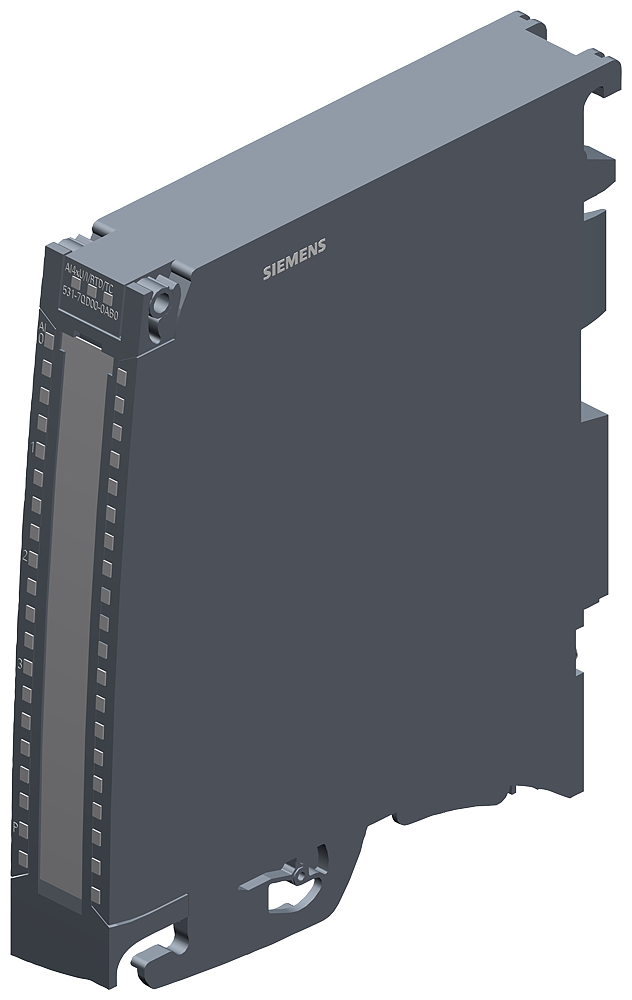

AI 4xU/I/RTD/TC ST

Genuine parts

Genuine, factory-sealed parts

Siemens · 6ES7531-7QD00-0AB0

Every part on Stoklink is new, unused and made by the manufacturer named on the page.

Condition
New and unused, in the manufacturer's factory-sealed packaging.
Sourced from
Siemens and its authorised distributors.
Warranty
The manufacturer's warranty applies.
If a part is not genuine
We refund the full amount.

Added to cart Could not add to cart

View cart
