Part number
6ES7531-7PF00-0AB0
Model no
AI 8xU/R/RTD/TC HF
$1,289.61 In stock · 42 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC S7-1500

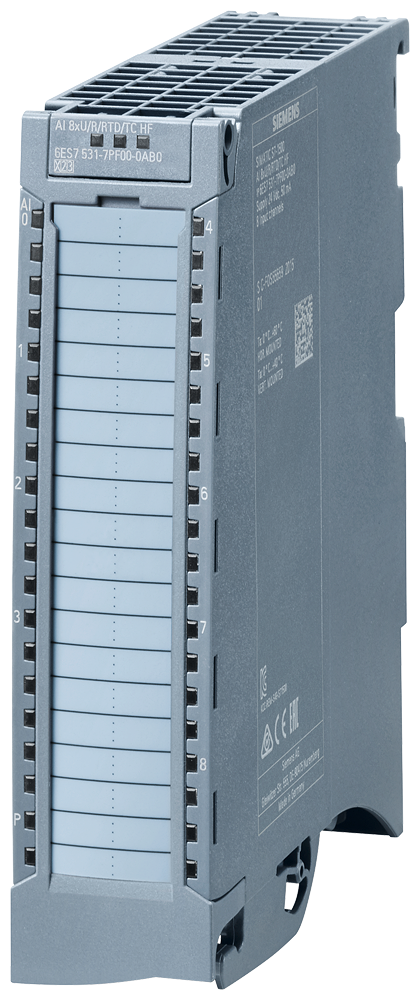

Siemens 6ES7531-7PF00-0AB0 SIMATIC S7-1500 AI 8xU/R/RTD/TC HF 8-Channel 16-Bit PLC I/O Module

SIMATIC S7-1500 8-channel U/R/RTD/TC analog input module, 16-bit, calibrate in RUN

Rated operational voltage
24 V AC
Communication
PROFINET, PROFIBUS
EAN
4047623406488
Description

About the AI 8xU/R/RTD/TC HF

The Siemens 6ES7531-7PF00-0AB0 is a SIMATIC S7-1500 analog input module with 8 channels configurable for voltage, resistance, RTD, or thermocouple measurement, 16-bit resolution scaling to 21 bit on RTD/TC ranges, and a 0.1% accuracy class. It supports calibration and reparameterization in RUN, and covers thermocouple types B, C, E, J, K, N, R, S, and T from a 24 V DC supply.

Selection Notes

The HF (high feature) variant supports calibration and reparameterization while the CPU is in RUN, which avoids a process shutdown when a continuous line needs recalibration. Scalable measuring ranges let one module cover both RTD and thermocouple sensor types on the same station, cutting spares inventory compared with fixed single-type analog input modules. The 8-channel-plus-1-RTD-reference design supports cold-junction compensation for thermocouple accuracy.

Applications

Process temperature monitoring with RTD or thermocouple sensors on S7-1500 control systems, high-accuracy voltage and resistance measurement for calibration-sensitive processes, and continuous production lines where in-RUN calibration avoids downtime.

Specification

Full specification

186 values · Last verified 01 Nov 2026

General information 16

Product type designation AI 8xU/R/RTD/TC HF
HW functional status FS01
Firmware version V1.1.0
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: Prioritized startup Yes
Product function: Measuring range scalable Yes
Product function: Scalable measured values No
Product function: Adjustment of measuring range No
Engineering with: STEP 7 TIA Portal configurable/integrated from version V14 / -
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PROFIBUS from GSD version/GSD revision V1.0 / V5.1
Engineering with: PROFINET from GSD version/GSD revision V2.3 / -
Operating mode: Oversampling No
Operating mode: MSI Yes

CiR - Configuration in RUN 2

Reparameterization possible in RUN Yes
Calibration possible in RUN Yes

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Show all 186 specifications ↓ Show less ↑164 more values in Identification, Input current, Power, Power loss, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Permissible potential difference, Isolation, Standards, approvals, certificates, Security, Ambient conditions, Version Classification, Tion formity, Logistics.

Identification 10

Part number 6ES7531-7PF00-0AB0
Type designation AI 8xU/R/RTD/TC HF
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623406488
ETIM class EC001420
eCl@ss 27242201

Input current 1

Current consumption, max. 55 mA; with 24 V DC supply

Power 1

Power consumption from the backplane bus 0.85 W

Power loss 1

Power loss, typ. 1.9 W

Analog inputs 89

Number of analog inputs 8; Plus one additional RTD (reference) channel
For voltage measurement 8; Plus one additional RTD (reference) channel
For resistance/resistance thermometer measurement 8; Plus one additional RTD (reference) channel
For thermocouple measurement 8; Plus one additional RTD (reference) channel
permissible input voltage for voltage input (destruction limit), max. 20 V
Constant measurement current for resistance-type transmitter, 150 Ohm, 300 Ohm, 600 Ohm, Cu10, Cu50, Cu100, Ni10, Ni100, Ni120, Ni200,
typ. Pt10, Pt50, Pt100, Pt200 climate: 1 mA; 6 kOhm, Ni500, Ni1000, LG-Ni1000, Pt200 standard, Pt500, Pt1000, PTC: 0.25 mA
Technical unit for temperature measurement adjustable Yes; °C/°F/K
Input ranges (rated values), voltages: 0 to +5 V No
Input ranges (rated values), voltages: 0 to +10 V No
Input ranges (rated values), voltages: 1 V to 5 V No
Input ranges (rated values), voltages: -1 V to +1 V Yes
Input ranges (rated values), voltages: Input resistance (-1 V to +1 V) 10 MΩ
Input ranges (rated values), voltages: -10 V to +10 V No
Input ranges (rated values), voltages: -2.5 V to +2.5 V No
Input ranges (rated values), voltages: -25 mV to +25 mV Yes
Input ranges (rated values), voltages: Input resistance (-25 mV to +25 mV) 10 MΩ
Input ranges (rated values), voltages: -250 mV to +250 mV Yes
Input ranges (rated values), voltages: Input resistance (-250 mV to +250 mV) 10 MΩ
Input ranges (rated values), voltages: -5 V to +5 V No
Input ranges (rated values), voltages: -50 mV to +50 mV Yes
Input ranges (rated values), voltages: Input resistance (-50 mV to +50 mV) 10 MΩ
Input ranges (rated values), voltages: -500 mV to +500 mV Yes
Input ranges (rated values), voltages: Input resistance (-500 mV to +500 mV) 10 MΩ
Input ranges (rated values), voltages: -80 mV to +80 mV Yes
Input ranges (rated values), voltages: Input resistance (-80 mV to +80 mV) 10 MΩ
Input ranges (rated values), currents: 0 to 20 mA No
Input ranges (rated values), currents: -20 mA to +20 mA No
Input ranges (rated values), currents: 4 mA to 20 mA No
Input ranges (rated values), thermocouples: Type B Yes
Input ranges (rated values), thermocouples: Input resistance (Type B) 10 MΩ
Input ranges (rated values), thermocouples: Type C Yes
Input ranges (rated values), thermocouples: Type E Yes
Input ranges (rated values), thermocouples: Type J Yes
Input ranges (rated values), thermocouples: Type K Yes
Input ranges (rated values), thermocouples: Type L No
Input ranges (rated values), thermocouples: Type N Yes
Input ranges (rated values), thermocouples: Type R Yes
Input ranges (rated values), thermocouples: Type S Yes
Input ranges (rated values), thermocouples: Type T Yes
Input ranges (rated values), thermocouples: Type TXK/TXK(L) to GOST Yes
Input ranges (rated values), resistance thermometer: Cu 10 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Input resistance (Cu 10) 10 MΩ
Input ranges (rated values), resistance thermometer: Cu 10 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Cu 50 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Cu 50 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Cu 100 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Cu 100 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 10 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 10 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 100 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 100 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 1000 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 1000 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: LG-Ni 1000 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 120 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 120 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 200 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 200 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 500 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 500 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 10 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 10 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 50 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 50 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 100 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 100 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 1000 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 1000 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 200 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 200 according to GOST Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 500 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 500 according to GOST Yes; Standard/climate
Input ranges (rated values), resistors: 0 to 150 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 150 ohms) 10 MΩ
Input ranges (rated values), resistors: 0 to 300 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 300 ohms) 10 MΩ
Input ranges (rated values), resistors: 0 to 600 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 600 ohms) 10 MΩ
Input ranges (rated values), resistors: 0 to 3000 ohms No
Input ranges (rated values), resistors: 0 to 6000 ohms Yes
Input ranges (rated values), resistors: PTC Yes
Input ranges (rated values), resistors: Input resistance (PTC) 10 MΩ
Thermocouple (TC) Temperature compensation: Parameterizable Yes
Thermocouple (TC) Temperature compensation: internal temperature compensation Yes
Thermocouple (TC) Temperature compensation: external temperature compensation via RTD Yes
Thermocouple (TC) Temperature compensation: Compensation for 0 °C reference point temperature Yes; fixed value can be set
Thermocouple (TC) Temperature compensation: Reference channel of the module Yes; 9th channel that can be used as a genuine 9th RTD channel regardless of the parameterization of the other channels, or that can be used for compensation in the case of TC measurement
Cable length: shielded, max. 800 m; at U; 200 m at R/RTD/TC

Analog value generation for the inputs 10

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 21 bit; For measuring mode RTC and TC when using the function "Scalable temperature measuring range" (32 bit REAL format); 16 bit for measuring mode R and U; 16 bit for all measuring modes when using the S7 format (16 bit INTEGER)
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes
Integration and conversion time/resolution per channel: Basic conversion time, including integration time (ms) Fast mode: 4 / 18 / 22 / 102 ms; Standard mode: 9 / 52 / 62 / 302 ms
Integration and conversion time/resolution per channel: additional conversion time for wire-break monitoring Thermocouples, 150 Ohm, 300 Ohm, 600 Ohm, Cu10, Cu50, Cu100, Ni10, Ni100, Ni120, Ni200, Pt10, Pt50, Pt100: 4 ms; 6 kOhm, Ni500, Ni1000, LG- Ni1000, Pt200, Pt500, Pt1000: 13 ms
Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz 400 / 60 / 50 / 10 Hz
Smoothing of measured values: parameterizable Yes
Smoothing of measured values: Step: None Yes
Smoothing of measured values: Step: low Yes
Smoothing of measured values: Step: Medium Yes
Smoothing of measured values: Step: High Yes

Encoder 4

Connection of signal encoders: for voltage measurement Yes
Connection of signal encoders: for current measurement as 2-wire transducer No
Connection of signal encoders: for current measurement as 4-wire transducer No
Connection of signal encoders: for resistance measurement with two-wire connection Yes

Errors/accuracies 13

Linearity error (relative to input range), (+/-) 0.02 %
Temperature error (relative to input range), (+/-) 0.005 %/K
Crosstalk between the inputs, max. -80 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.02 %
Temperature error of internal compensation ±1,5 °C
Operational error limit in overall temperature range: Voltage, relative to input range, (+/-) 0.1 %
Operational error limit in overall temperature range: Resistance, relative to input range, (+/-) 0.1 %
Operational error limit in overall temperature range: Thermocouple, relative to input range, (+/-) Type B: > 600 °C ±2 K, Type E: > -200 °C ±1 K, Type J: > -210 °C ±1 K, Type K: > -200 °C ±2 K, Type N: > -200 °C ±2 K, Type R: > 0 °C ±2 K, Type S: > 0 °C ±2 K, Type T: > -200 °C ±1 K, Type C: ±4 K, Type TXK/TXK(L): ±1 K
Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-) 0.05 %
Basic error limit (operational limit at 25 °C): Resistance, relative to input range, (+/-) 0.05 %
Basic error limit (operational limit at 25 °C): Resistance thermometer, relative to input range, (+/-) Cuxxx Standard: ±0.3 K, Cuxxx Klima: ±0.2 K, Ptxxx Standard: ±0.5 K, Ptxxx Klima: ±0.2 K, Nixxx Standard: ±0.3 K, Nixxx Klima: ±0.15 K
Basic error limit (operational limit at 25 °C): Thermocouple, relative to input range, (+/-) Type B: > 600 °C ±1 K, Type E: > -200 °C ±0.5 K, Type J: > -210 °C ±0.5 K, Type K: > -200 °C ±1 K, Type N: > -200 °C ±1 K, Type R: > 0 °C ±1 K, Type S: > 0 °C ±1 K, Type T: > -200 °C ±0.5 K, Type C: ±2 K, Type TXK/TXK(L): ±0.5 K
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min. 80 dB; in the Standard operating mode, 40 dB in the Fast operating mode

Interrupts/diagnostics/status information 12

Diagnostics function Yes
Alarms: Diagnostic alarm Yes
Alarms: Limit value alarm Yes; two upper and two lower limit values in each case
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; Only with TC, R, RTD
Diagnoses: Overflow/Underflow Yes
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; red LED

Potential separation 4

Potential separation channels: between the channels Yes
Potential separation channels: between the channels, in groups of 1
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics Yes

Permissible potential difference 1

between different circuits 60 V DC/30 V AC; insulation rated for 120 V AC basic insulation: between the channels and the supply voltage L+; between the channels and the backplane bus; between the channels

Isolation 1

Isolation tested with 2 000 V DC between the channels and the supply voltage L+; 2 000 V DC between the channels and the backplane bus; 2 000 V DC between the channels; 707 V DC (type test) between the supply voltage L+ and the backplane bus

Standards, approvals, certificates 2

Suitable for applications according to AMS 2750 Yes; Declaration of Conformity, see online support entry 109757262
Suitable for applications according to CQI-9 Yes; Based on AMS 2750 E

Security 2

signed firmware update No
data integrity No

Ambient conditions 2

Ambient temperature during operation: horizontal installation, min. 0 °C
Ambient temperature during operation: vertical installation, min. 0 °C

Version Classification 4

eClass 16 27-24-22-01
ETIM 10 EC001420
IDEA 4 3562
UNSPSC 15 32-15-17-05

Tion formity 1

General Product Approval Manufacturer Declara- tion

Logistics 6

Net weight 0.41 kg
Country of origin DE
Shipping weight 0.91 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7531-7PF00-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the AI 8xU/R/RTD/TC HF

Which supply voltage is AI 8xU/R/RTD/TC HF rated for?

The rated operational voltage of AI 8xU/R/RTD/TC HF is 24 V AC.

What is the HS code of AI 8xU/R/RTD/TC HF for customs?

The tariff (HS) code on file for AI 8xU/R/RTD/TC HF is 85389091.

What is the EAN of AI 8xU/R/RTD/TC HF?

The EAN (GTIN) of AI 8xU/R/RTD/TC HF is 4047623406488.

Where does AI 8xU/R/RTD/TC HF ship from, and how fast?

AI 8xU/R/RTD/TC HF ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.

Guides

Guides for PLC & controllers

All guides for PLC & controllers
Reviews

Customer reviews

Series

Siemens SIMATIC S7-1500

Brand
Siemens
Series
SIMATIC S7-1500
$1,289.61 In stock · 18 Nov
Quote

Get a Quote

AI 8xU/R/RTD/TC HF

Genuine parts

Genuine, factory-sealed parts

Siemens · 6ES7531-7PF00-0AB0

Every part on Stoklink is new, unused and made by the manufacturer named on the page.

Condition
New and unused, in the manufacturer's factory-sealed packaging.
Sourced from
Siemens and its authorised distributors.
Warranty
The manufacturer's warranty applies.
If a part is not genuine
We refund the full amount.

Added to cart Could not add to cart

View cart
