Part number
6ES7531-7NF10-0AB0
Model no
AI 8xU/I HS
$1,028.79 In stock · 11 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC S7-1500

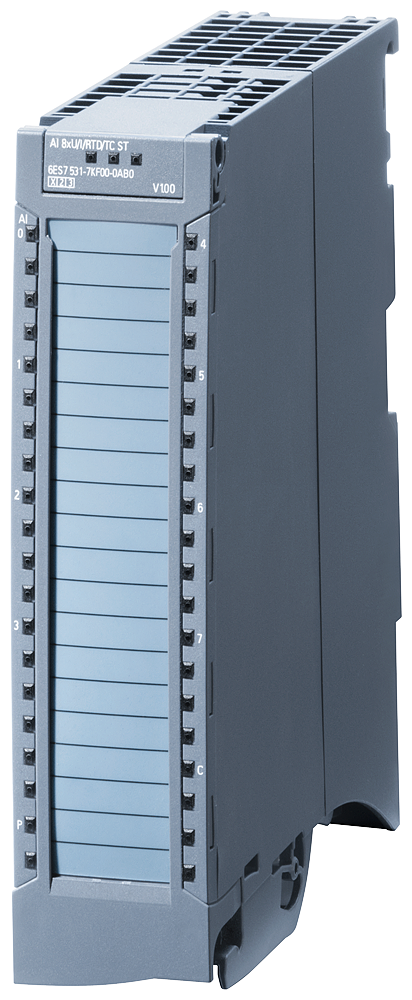

Siemens 6ES7531-7NF10-0AB0 SIMATIC S7-1500 Analog Input AI 8xU/I HS 16-bit PLC I/O Module

SIMATIC S7-1500 analog input AI 8xU/I HS, 8 channels, 16-bit, 62.5us cycle, oversampling.

Rated operational voltage
24 V AC
EAN
4025515080145
Description

About the AI 8xU/I HS

The Siemens 6ES7531-7NF10-0AB0 is a SIMATIC S7-1500 high-speed analog input module with 8 voltage/current channels at 16-bit resolution and 0.3% operational error over the full temperature range. Its basic conversion time is 62.5 microseconds per cycle regardless of how many of the 8 channels are active, with oversampling down to the same 62.5 microsecond step for fast process signals.

Selection Notes

A front connector (screw-in or push-in) has to be ordered separately - it is not included. The HS variant's fixed 62.5 microsecond basic conversion time, independent of active channel count, is what makes it the pick for oversampling and isochronous-mode applications; choose a standard-speed AI module instead when scan time is not critical and simple 4-20 mA / 0-10 V measurement is enough, since the tighter basic error limit here (0.2% at 25 degC) costs more than standard modules.

Applications

Fast process-value acquisition - isochronous mode or oversampling for vibration, pressure, or fast-loop signals on S7-1500 - covering both current-loop (0/4-20 mA) and voltage (up to +/-10 V) transducer inputs.

Specification

Full specification

173 values · Last verified 01 Nov 2026

General information 16

Product type designation AI 8xU/I HS
HW functional status FS01
Firmware version V2.1.0
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode Yes
Product function: Prioritized startup Yes
Product function: Measuring range scalable No
Product function: Scalable measured values No
Product function: Adjustment of measuring range No
Engineering with: STEP 7 TIA Portal configurable/integrated from version V14 / -
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PROFIBUS from GSD version/GSD revision V1.0 / V5.1
Engineering with: PROFINET from GSD version/GSD revision V2.3 / -
Operating mode: Oversampling Yes
Operating mode: MSI Yes

CiR - Configuration in RUN 2

Reparameterization possible in RUN Yes
Calibration possible in RUN Yes

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Show all 173 specifications ↓ Show less ↑151 more values in Identification, Input current, Encoder supply, Power, Power loss, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Isochronous mode, Interrupts/diagnostics/status information, Potential separation, Permissible potential difference, Isolation, Security, Ambient conditions, Dimensions, Weights, EClass 6 27-24-22-01, General Product Approval, Logistics.

Identification 10

Part number 6ES7531-7NF10-0AB0
Type designation AI 8xU/I HS
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4025515080145
ETIM class EC001420
eCl@ss 27242201

Input current 1

Current consumption, max. 240 mA; with 24 V DC supply

Encoder supply 2

24 V encoder supply: Short-circuit protection Yes
24 V encoder supply: Output current, max. 20 mA; Max. 47 mA per channel for a duration < 10 s

Power 1

Power consumption from the backplane bus 1.15 W

Power loss 1

Power loss, typ. 3.4 W

Analog inputs 74

Number of analog inputs 8
For current measurement 8
For voltage measurement 8
permissible input voltage for voltage input (destruction limit), max. 28.8 V
permissible input current for current input (destruction limit), max. 40 mA
Input ranges (rated values), voltages: 0 to +5 V No
Input ranges (rated values), voltages: 0 to +10 V No
Input ranges (rated values), voltages: 1 V to 5 V Yes
Input ranges (rated values), voltages: Input resistance (1 V to 5 V) 50 kΩ
Input ranges (rated values), voltages: -10 V to +10 V Yes
Input ranges (rated values), voltages: Input resistance (-10 V to +10 V) 100 kΩ
Input ranges (rated values), voltages: -2.5 V to +2.5 V No
Input ranges (rated values), voltages: -25 mV to +25 mV No
Input ranges (rated values), voltages: -250 mV to +250 mV No
Input ranges (rated values), voltages: -5 V to +5 V Yes
Input ranges (rated values), voltages: Input resistance (-5 V to +5 V) 50 kΩ
Input ranges (rated values), voltages: -50 mV to +50 mV No
Input ranges (rated values), voltages: -500 mV to +500 mV No
Input ranges (rated values), voltages: -80 mV to +80 mV No
Input ranges (rated values), currents: 0 to 20 mA Yes
Input ranges (rated values), currents: Input resistance (0 to 20 mA) 41 Ω; Plus approx. 42 ohms for overvoltage protection by PTC
Input ranges (rated values), currents: -20 mA to +20 mA Yes
Input ranges (rated values), currents: Input resistance (-20 mA to +20 mA) 41 Ω; Plus approx. 42 ohms for overvoltage protection by PTC
Input ranges (rated values), currents: 4 mA to 20 mA Yes
Input ranges (rated values), currents: Input resistance (4 mA to 20 mA) 41 Ω; Plus approx. 42 ohms for overvoltage protection by PTC
Input ranges (rated values), thermocouples: Type B No
Input ranges (rated values), thermocouples: Type C No
Input ranges (rated values), thermocouples: Type E No
Input ranges (rated values), thermocouples: Type J No
Input ranges (rated values), thermocouples: Type K No
Input ranges (rated values), thermocouples: Type L No
Input ranges (rated values), thermocouples: Type N No
Input ranges (rated values), thermocouples: Type R No
Input ranges (rated values), thermocouples: Type S No
Input ranges (rated values), thermocouples: Type T No
Input ranges (rated values), thermocouples: Type TXK/TXK(L) to GOST No
Input ranges (rated values), resistance thermometer: Cu 10 No
Input ranges (rated values), resistance thermometer: Cu 10 according to GOST No
Input ranges (rated values), resistance thermometer: Cu 50 No
Input ranges (rated values), resistance thermometer: Cu 50 according to GOST No
Input ranges (rated values), resistance thermometer: Cu 100 No
Input ranges (rated values), resistance thermometer: Cu 100 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 10 No
Input ranges (rated values), resistance thermometer: Ni 10 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 100 No
Input ranges (rated values), resistance thermometer: Ni 100 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 1000 No
Input ranges (rated values), resistance thermometer: Ni 1000 according to GOST No
Input ranges (rated values), resistance thermometer: LG-Ni 1000 No
Input ranges (rated values), resistance thermometer: Ni 120 No
Input ranges (rated values), resistance thermometer: Ni 120 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 200 No
Input ranges (rated values), resistance thermometer: Ni 200 according to GOST No
Input ranges (rated values), resistance thermometer: Ni 500 No
Input ranges (rated values), resistance thermometer: Ni 500 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 10 No
Input ranges (rated values), resistance thermometer: Pt 10 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 50 No
Input ranges (rated values), resistance thermometer: Pt 50 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 100 No
Input ranges (rated values), resistance thermometer: Pt 100 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 1000 No
Input ranges (rated values), resistance thermometer: Pt 1000 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 200 No
Input ranges (rated values), resistance thermometer: Pt 200 according to GOST No
Input ranges (rated values), resistance thermometer: Pt 500 No
Input ranges (rated values), resistance thermometer: Pt 500 according to GOST No
Input ranges (rated values), resistors: 0 to 150 ohms No
Input ranges (rated values), resistors: 0 to 300 ohms No
Input ranges (rated values), resistors: 0 to 600 ohms No
Input ranges (rated values), resistors: 0 to 3000 ohms No
Input ranges (rated values), resistors: 0 to 6000 ohms No
Input ranges (rated values), resistors: PTC No
Cable length: shielded, max. 800 m

Analog value generation for the inputs 7

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Basic execution time of the module (all channels released) 62.5 µs; independent of number of activated channels
Smoothing of measured values: parameterizable Yes
Smoothing of measured values: Step: None Yes
Smoothing of measured values: Step: low Yes
Smoothing of measured values: Step: Medium Yes
Smoothing of measured values: Step: High Yes

Encoder 5

Connection of signal encoders: for voltage measurement Yes
Connection of signal encoders: for current measurement as 2-wire transducer Yes
Connection of signal encoders: Burden of 2-wire transmitter, max. 820 Ω
Connection of signal encoders: for current measurement as 4-wire transducer Yes
Connection of signal encoders: for resistance measurement with two-wire connection No

Errors/accuracies 9

Linearity error (relative to input range), (+/-) 0.02 %
Temperature error (relative to input range), (+/-) 0.005 %/K
Crosstalk between the inputs, max. -60 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.02 %
Operational error limit in overall temperature range: Voltage, relative to input range, (+/-) 0.3 %
Operational error limit in overall temperature range: Current, relative to input range, (+/-) 0.3 %
Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-) 0.2 %
Basic error limit (operational limit at 25 °C): Current, relative to input range, (+/-) 0.2 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency: Common mode voltage, max. 10 V

Isochronous mode 2

Filtering and processing time (TCI), min. 80 µs
Bus cycle time (TDP), min. 250 µs

Interrupts/diagnostics/status information 12

Diagnostics function Yes
Alarms: Diagnostic alarm Yes
Alarms: Limit value alarm Yes; two upper and two lower limit values in each case
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; only for 1 ... 5 V and 4 ... 20 mA
Diagnoses: Overflow/Underflow Yes
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; red LED

Potential separation 4

Potential separation channels: between the channels No
Potential separation channels: between the channels, in groups of 8
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics Yes

Permissible potential difference 2

between the inputs (UCM) 20 V DC
Between the inputs and MANA (UCM) 10 V DC

Isolation 1

Isolation tested with 707 V DC (type test)

Security 2

signed firmware update No
data integrity No

Ambient conditions 3

Ambient temperature during operation: horizontal installation, min. 0 °C
Ambient temperature during operation: vertical installation, min. 0 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Dimensions 3

Width 35 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 300 g

EClass 6 27-24-22-01 3

ETIM 10 EC001420
IDEA 4 3562
UNSPSC 15 32-15-17-05

General Product Approval 2

Miscellaneous Metrological Approval For use in hazard-
General Product Approval ous locations

Logistics 6

Net weight 0.42 kg
Country of origin DE
Shipping weight 0.92 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7531-7NF10-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the AI 8xU/I HS

Which supply voltage is AI 8xU/I HS rated for?

The rated operational voltage of AI 8xU/I HS is 24 V AC.

What is the HS code of AI 8xU/I HS for customs?

The tariff (HS) code on file for AI 8xU/I HS is 85389091.

What is the EAN of AI 8xU/I HS?

The EAN (GTIN) of AI 8xU/I HS is 4025515080145.

Where does AI 8xU/I HS ship from, and how fast?

AI 8xU/I HS ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.

Guides

Guides for PLC & controllers

All guides for PLC & controllers
Reviews

Customer reviews

Series

Siemens SIMATIC S7-1500

Brand
Siemens
Series
SIMATIC S7-1500
$1,028.79 In stock · 18 Nov
Quote

Get a Quote

AI 8xU/I HS

Genuine parts

Genuine, factory-sealed parts

Siemens · 6ES7531-7NF10-0AB0

Every part on Stoklink is new, unused and made by the manufacturer named on the page.

Condition
New and unused, in the manufacturer's factory-sealed packaging.
Sourced from
Siemens and its authorised distributors.
Warranty
The manufacturer's warranty applies.
If a part is not genuine
We refund the full amount.

Added to cart Could not add to cart

View cart
