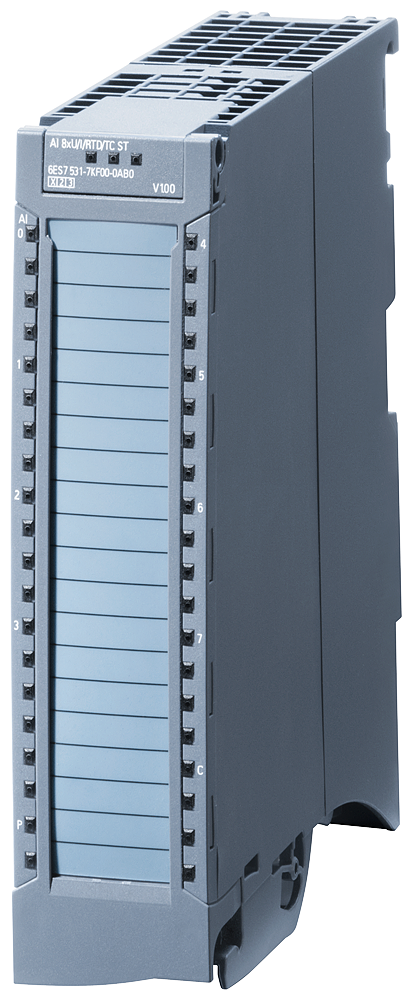

The Siemens 6ES7531-7KF00-0AB0 is a SIMATIC S7-1500 AI 8xU/I/RTD/TC ST analog input module providing 8 universal channels at 16-bit resolution, accepting voltage, current, RTD and thermocouple signals on the same module. Supply is 24V DC (19.2-28.8V) and the module draws 255mA max at 19.2V. Reparameterization and calibration are both possible while the CPU is in RUN.
Because the AI 8xU/I/RTD/TC ST reads current, voltage, RTD and thermocouple signals on one module, it avoids a separate RTD/TC purchase when a station mixes standard 4-20mA transmitters with temperature channels on the same rack. The 4 dedicated RTD channels and 8 thermocouple channels cover most furnace, bearing or ambient temperature monitoring needs without a second card. CiR support for reparameterization and calibration in RUN lets a range be changed on a live line, which matters when a channel needs to switch from current to RTD input without stopping the CPU.
Suited to mixed analog and temperature measurement on continuous process or machine lines built on S7-1500, where RTD or thermocouple channels for thermal monitoring sit on the same module as standard current/voltage transmitter inputs.
| Product type designation | AI 8xU/I/RTD/TC ST |
|---|---|
| HW functional status | FS04 |
| Firmware version | V2.0.0 |
| FW update possible | Yes |
| Product function: I&M data | Yes; I&M0 to I&M3 |
| Product function: Isochronous mode | No |
| Product function: Prioritized startup | No |
| Product function: Measuring range scalable | No |
| Product function: Scalable measured values | No |
| Product function: Adjustment of measuring range | No |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | V12 / V12 |
| Engineering with: STEP 7 configurable/integrated from version | V5.5 SP3 / - |
| Engineering with: PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 |
| Engineering with: PROFINET from GSD version/GSD revision | V2.3 / - |
| Operating mode: Oversampling | No |
| Operating mode: MSI | Yes |
| Reparameterization possible in RUN | Yes |
|---|---|
| Calibration possible in RUN | Yes |
| Rated value (DC) | 24 V |
|---|---|
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Part number | 6ES7531-7KF00-0AB0 |
|---|---|
| Type designation | AI 8xU/I/RTD/TC ST |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515079514 |
| ETIM class | EC001420 |
| eCl@ss | 27242201 |
| Current consumption, max. | 240 mA; with 24 V DC supply |
|---|
| 24 V encoder supply: Short-circuit protection | Yes |
|---|---|
| 24 V encoder supply: Output current, max. | 20 mA; Max. 47 mA per channel for a duration < 10 s |
| Power consumption from the backplane bus | 0.7 W |
|---|
| Power loss, typ. | 2.7 W |
|---|
| Number of analog inputs | 8 |
|---|---|
| For current measurement | 8 |
| For voltage measurement | 8 |
| For resistance/resistance thermometer measurement | 4 |
| For thermocouple measurement | 8 |
| permissible input voltage for voltage input (destruction limit), max. | 28.8 V |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Constant measurement current for resistance-type transmitter, | 150 Ohm, 300 Ohm, 600 Ohm, Pt100, Pt200, Ni100: 1.25 mA; 6 000 Ohm, |
| typ. | Pt500, Pt1000, Ni1000, LG-Ni1000: 0.625 mA; PTC: 0.472 mA |
| Technical unit for temperature measurement adjustable | Yes; °C/°F/K |
| Input ranges (rated values), voltages: 0 to +5 V | No |
| Input ranges (rated values), voltages: 0 to +10 V | No |
| Input ranges (rated values), voltages: 1 V to 5 V | Yes |
| Input ranges (rated values), voltages: Input resistance (1 V to 5 V) | 100 kΩ |
| Input ranges (rated values), voltages: -1 V to +1 V | Yes |
| Input ranges (rated values), voltages: Input resistance (-1 V to +1 V) | 10 MΩ |
| Input ranges (rated values), voltages: -10 V to +10 V | Yes |
| Input ranges (rated values), voltages: Input resistance (-10 V to +10 V) | 100 kΩ |
| Input ranges (rated values), voltages: -2.5 V to +2.5 V | Yes |
| Input ranges (rated values), voltages: Input resistance (-2.5 V to +2.5 V) | 10 MΩ |
| Input ranges (rated values), voltages: -25 mV to +25 mV | No |
| Input ranges (rated values), voltages: -250 mV to +250 mV | Yes |
| Input ranges (rated values), voltages: Input resistance (-250 mV to +250 mV) | 10 MΩ |
| Input ranges (rated values), voltages: -5 V to +5 V | Yes |
| Input ranges (rated values), voltages: Input resistance (-5 V to +5 V) | 100 kΩ |
| Input ranges (rated values), voltages: -50 mV to +50 mV | Yes |
| Input ranges (rated values), voltages: Input resistance (-50 mV to +50 mV) | 10 MΩ |
| Input ranges (rated values), voltages: -500 mV to +500 mV | Yes |
| Input ranges (rated values), voltages: Input resistance (-500 mV to +500 mV) | 10 MΩ |
| Input ranges (rated values), voltages: -80 mV to +80 mV | Yes |
| Input ranges (rated values), voltages: Input resistance (-80 mV to +80 mV) | 10 MΩ |
| Input ranges (rated values), currents: 0 to 20 mA | Yes |
| Input ranges (rated values), currents: Input resistance (0 to 20 mA) | 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC |
| Input ranges (rated values), currents: -20 mA to +20 mA | Yes |
| Input ranges (rated values), currents: Input resistance (-20 mA to +20 mA) | 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC |
| Input ranges (rated values), currents: 4 mA to 20 mA | Yes |
| Input ranges (rated values), currents: Input resistance (4 mA to 20 mA) | 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC |
| Input ranges (rated values), thermocouples: type B | Yes |
| Input ranges (rated values), thermocouples: Input resistance (Type B) | 10 MΩ |
| Input ranges (rated values), thermocouples: type C | No |
| Input ranges (rated values), thermocouples: Type E | Yes |
| Input ranges (rated values), thermocouples: Type J | Yes |
| Input ranges (rated values), thermocouples: Type K | Yes |
| Input ranges (rated values), thermocouples: Type L | No |
| Input ranges (rated values), thermocouples: Type N | Yes |
| Input ranges (rated values), thermocouples: Type R | Yes |
| Input ranges (rated values), thermocouples: Type S | Yes |
| Input ranges (rated values), thermocouples: Type T | Yes |
| Input ranges (rated values), thermocouples: Type TXK/TXK(L) to GOST | No |
| Input ranges (rated values), resistance thermometer: Cu 10 | No |
| Input ranges (rated values), resistance thermometer: Cu 10 according to GOST | No |
| Input ranges (rated values), resistance thermometer: Cu 50 | No |
| Input ranges (rated values), resistance thermometer: Cu 50 according to GOST | No |
| Input ranges (rated values), resistance thermometer: Cu 100 | No |
| Input ranges (rated values), resistance thermometer: Cu 100 according to GOST | No |
| Input ranges (rated values), resistance thermometer: Ni 10 | No |
| Input ranges (rated values), resistance thermometer: Ni 10 according to GOST | No |
| Input ranges (rated values), resistance thermometer: Ni 100 | Yes; Standard/climate |
| Input ranges (rated values), resistance thermometer: Input resistance (Ni 100) | 10 MΩ |
| Input ranges (rated values), resistance thermometer: Ni 100 according to GOST | No |
| Input ranges (rated values), resistance thermometer: Ni 1000 | Yes; Standard/climate |
| Input ranges (rated values), resistance thermometer: Ni 1000 according to GOST | No |
| Input ranges (rated values), resistance thermometer: LG-Ni 1000 | Yes; Standard/climate |
| Input ranges (rated values), resistance thermometer: Ni 120 | No |
| Input ranges (rated values), resistance thermometer: Ni 120 according to GOST | No |
| Input ranges (rated values), resistance thermometer: Ni 200 according to GOST | No |
| Input ranges (rated values), resistance thermometer: Ni 500 | No |
| Input ranges (rated values), resistance thermometer: Ni 500 according to GOST | No |
| Input ranges (rated values), resistance thermometer: Pt 10 | No |
| Input ranges (rated values), resistance thermometer: Pt 10 according to GOST | No |
| Input ranges (rated values), resistance thermometer: Pt 50 | No |
| Input ranges (rated values), resistance thermometer: Pt 50 according to GOST | No |
| Input ranges (rated values), resistance thermometer: Pt 100 | Yes; Standard/climate |
| Input ranges (rated values), resistance thermometer: Pt 100 according to GOST | No |
| Input ranges (rated values), resistance thermometer: Pt 1000 | Yes; Standard/climate |
| Input ranges (rated values), resistance thermometer: Pt 1000 according to GOST | No |
| Input ranges (rated values), resistance thermometer: Pt 200 | Yes; Standard/climate |
| Input ranges (rated values), resistance thermometer: Pt 200 according to GOST | No |
| Input ranges (rated values), resistance thermometer: Pt 500 | Yes; Standard/climate |
| Input ranges (rated values), resistance thermometer: Pt 500 according to GOST | No |
| Input ranges (rated values), resistors: 0 to 150 ohms | Yes |
| Input ranges (rated values), resistors: Input resistance (0 to 150 ohms) | 10 MΩ |
| Input ranges (rated values), resistors: 0 to 300 ohms | Yes |
| Input ranges (rated values), resistors: Input resistance (0 to 300 ohms) | 10 MΩ |
| Input ranges (rated values), resistors: 0 to 600 ohms | Yes |
| Input ranges (rated values), resistors: Input resistance (0 to 600 ohms) | 10 MΩ |
| Input ranges (rated values), resistors: 0 to 3000 ohms | No |
| Input ranges (rated values), resistors: 0 to 6000 ohms | Yes |
| Input ranges (rated values), resistors: PTC | Yes |
| Input ranges (rated values), resistors: Input resistance (PTC) | 10 MΩ |
| Thermocouple (TC) Temperature compensation: Parameterizable | Yes |
| Thermocouple (TC) Temperature compensation: internal temperature compensation | Yes |
| Thermocouple (TC) Temperature compensation: external temperature compensation via RTD | Yes |
| Thermocouple (TC) Temperature compensation: Compensation for 0 °C reference point temperature | Yes; fixed value can be set |
| Thermocouple (TC) Temperature compensation: Reference channel of the module | Yes |
| Cable length: shielded, max. | 800 m; for U/I, 200 m for R/RTD, 50 m for TC |
| Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. | 16 bit |
|---|---|
| Integration and conversion time/resolution per channel: Integration time, parameterizable | Yes |
| Integration and conversion time/resolution per channel: Basic conversion time, including integration time (ms) | 9 / 23 / 27 / 107 ms |
| Integration and conversion time/resolution per channel: additional conversion time for wire-break monitoring | 9 ms (to be considered in R/RTD/TC measurement) |
| measurement | Pt1000, Ni1000, LG-Ni1000, PTC: 4 ms |
| Interference voltage suppression for interference frequency f1 in Hz | 400 / 60 / 50 / 10 Hz |
| Time for offset calibration (per module) | Basic conversion time of the slowest channel |
| Smoothing of measured values: Parameterizable | Yes |
| Smoothing of measured values: Step: None | Yes |
| Smoothing of measured values: Step: low | Yes |
| Smoothing of measured values: Step: Medium | Yes |
| Smoothing of measured values: Step: High | Yes |
| Connection of signal encoders: for voltage measurement | Yes |
|---|---|
| Connection of signal encoders: for current measurement as 2-wire transducer | Yes |
| Connection of signal encoders: Burden of 2-wire transmitter, max. | 820 Ω |
| Connection of signal encoders: for current measurement as 4-wire transducer | Yes |
| Connection of signal encoders: for resistance measurement with two-wire connection | Yes; Only for PTC |
| Linearity error (relative to input range), (+/-) | 0.02 % |
|---|---|
| Temperature error (relative to input range), (+/-) | 0.005 %/K; With TC type T 0.02 ± % / K |
| Crosstalk between the inputs, max. | -80 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.02 % |
| Temperature error of internal compensation | ±6 °C |
| Operational error limit in overall temperature range: Voltage, relative to input range, (+/-) | 0.3 % |
| Operational error limit in overall temperature range: Current, relative to input range, (+/-) | 0.3 % |
| Operational error limit in overall temperature range: Resistance, relative to input range, (+/-) | 0.3 % |
| Operational error limit in overall temperature range: Thermocouple, relative to input range, (+/-) | Type B: > 600 °C ±4.6 K, type E: > -200 °C ±1.5 K, type J: > -210 °C ±1.9 K, type K: > -200 °C ±2.4 K, type N: > -200 °C ±2.9 K, type R: > 0 °C ±4.7 K, type S: > 0 °C ±4.6 K, type T: > -200 °C ±2.4 K |
| Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-) | 0.1 % |
| Basic error limit (operational limit at 25 °C): Current, relative to input range, (+/-) | 0.1 % |
| Basic error limit (operational limit at 25 °C): Resistance, relative to input range, (+/-) | 0.1 % |
| Basic error limit (operational limit at 25 °C): Resistance thermometer, relative to input range, (+/-) | Ptxxx standard: ±0.7 K, Ptxxx climate: ±0.2 K, Nixxx standard: ±0.3 K, Nixxx climate: ±0.15 K |
| Basic error limit (operational limit at 25 °C): Thermocouple, relative to input range, (+/-) | Type B: > 600 °C ±1.7 K, type E: > -200 °C ±0.7 K, type J: > -210 °C ±0.8 K, type K: > -200 °C ±1.2 K, type N: > -200 °C ±1.2 K, type R: > 0 °C ±1.9 K, type S: > 0 °C ±1.9 K, type T: > -200 °C ±0.8 K |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min. | 40 dB |
| Diagnostics function | Yes |
|---|---|
| Alarms: Diagnostic alarm | Yes |
| Alarms: Limit value alarm | Yes; two upper and two lower limit values in each case |
| Diagnoses: Monitoring the supply voltage | Yes |
| Diagnoses: Wire break | Yes; Only for 1 to 5 V, 4 to 20 mA, TC, R, and RTD |
| Diagnoses: Overflow/Underflow | Yes |
| Diagnostics indication LED: RUN LED | Yes; green LED |
| Diagnostics indication LED: ERROR LED | Yes; red LED |
| Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) | Yes; green LED |
| Diagnostics indication LED: Channel status display | Yes; green LED |
| Diagnostics indication LED: for channel diagnostics | Yes; red LED |
| Diagnostics indication LED: for module diagnostics | Yes; red LED |
| Potential separation channels: between the channels | No |
|---|---|
| Potential separation channels: between the channels, in groups of | 8 |
| Potential separation channels: between the channels and backplane bus | Yes |
| Potential separation channels: between the channels and the power supply of the electronics | Yes |
| between the inputs (UCM) | 20 V DC |
|---|---|
| Between the inputs and MANA (UCM) | 10 V DC |
| Isolation tested with | 707 V DC (type test) |
|---|
| Suitable for applications according to AMS 2750 | Yes; Declaration of Conformity, see online support entry 109757262 |
|---|---|
| Suitable for applications according to CQI-9 | Yes; Based on AMS 2750 E |
| signed firmware update | No |
|---|---|
| data integrity | No |
| Ambient temperature during operation: horizontal installation, min. | 0 °C |
|---|---|
| Ambient temperature during operation: vertical installation, min. | 0 °C |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Width | 35 mm |
|---|---|
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 310 g |
|---|
| Note: | Additional basic error and noise for integration time = 2.5 ms: Voltage: ±250 mV (±0.02%), ±80 mV (±0.05%), ±50 mV (±0.05%); resistance: 150 ohms ±0.02%; resistance thermometer: Pt100 climate: ±0.08 K, Ni100 climate: ±0.08 K; thermocouple: Type B, R, S: ±3 K, type E, J, K, N, T: ±1 K |
|---|
| eClass | 9.1 27-24-22-01 |
|---|---|
| ETIM | 10 EC001420 |
| IDEA | 4 3562 |
| UNSPSC | 15 32-15-17-05 |
| Net weight | 0.415 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.915 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of AI 8xU/I/RTD/TC ST is 24 V DC.
The tariff (HS) code on file for AI 8xU/I/RTD/TC ST is 85389091.
The EAN (GTIN) of AI 8xU/I/RTD/TC ST is 4025515079514.
AI 8xU/I/RTD/TC ST ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
PLC selection guide for engineers covering IEC 61131 compliance, Siemens, Rockwell, Schneider, ABB comparison, scan time sizing, and wiring. Shop at Stoklink.
Learn how a PLC works, including scan cycle, I/O sizing, IEC 61131-3 programming, and hardware selection for ABB, Schneider, and Siemens. Shop at Stoklink.
Master PLC system components: CPU, power supply, I/O modules, communication interfaces, and software with sizing formulas and selection tips. Shop at Stoklink.
