Part number
6ES7522-5EH00-0AB0
Model no
DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST
$1,046.39 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC S7-1500

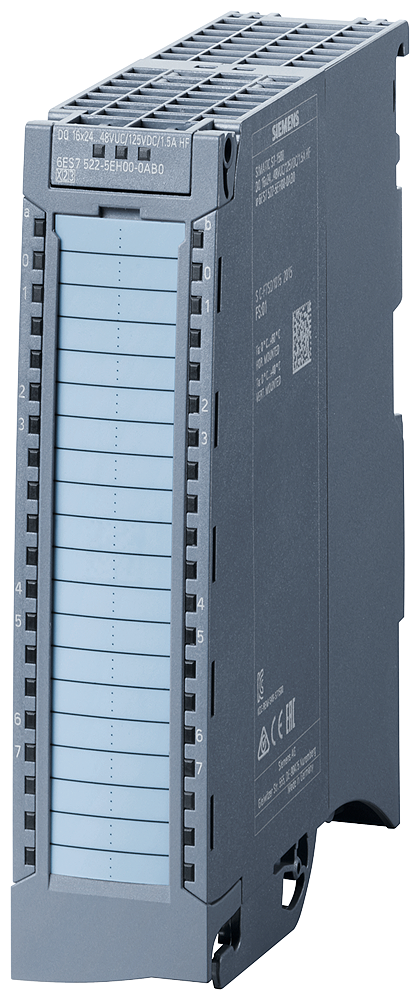

Siemens 6ES7522-5EH00-0AB0 SIMATIC S7-1500 DQ 16x24-48VUC/125VDC/0.5A ST Digital Output PLC I/O Module

SIMATIC S7-1500 DQ 16x24-48VUC/125VDC/0.5A ST, 16 isolated outputs, SIL2/Cat.3/PL d capable, 0.5A per channel.

Rated current
0.5 A
Rated operational voltage
24 V AC
EAN
4047623406068
Description

About the DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST

The Siemens 6ES7522-5EH00-0AB0 is a SIMATIC S7-1500 digital output module, DQ 16x24...48VUC/125VDC/0.5A ST, with 16 transistor outputs wired in groups of 1 channel and rated for 24 V, 48 V, or 125 V DC as well as 24/48 V AC. It switches 0.5 A per channel and supports safety-related shutdown of load groups up to SIL2 per EN IEC 62061 and Category 3/PL d per EN ISO 13849-1.

Selection Notes

ST in the product designation places this module in the Standard performance class, one step above BA (Basic) modules such as a plain DQ 64x24VDC output card, adding per-channel isolation (each of the 16 channels is its own potential-separated group) and the SIL2/Cat.3/PL d safety-related tripping rating from FS02 onward. That per-channel isolation is what lets the module accept mixed voltage classes on different channels within its 24-48 V UC/125 V DC range, unlike a fixed single-voltage output card. Choose it over a BA-class output module when individual channels drive different voltage loads or when a channel's shutdown state needs to reach a safety-rated PL d/SIL2 outcome; where all channels share one supply voltage and no safety rating is needed, a BA-class module costs less rack space per channel.

Applications

Mixed-voltage output wiring where individual 24 V, 48 V, or 125 V DC loads share a rack, including safety-related shutdown paths that need SIL2/PL d certified tripping from the standard control CPU.

Specification

Full specification

93 values · Last verified 01 Nov 2026

General information 18

Product type designation DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST
HW functional status FS02
Firmware version V1.0.0
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: Prioritized startup Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version V13 SP1 / -
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PROFIBUS from GSD version/GSD revision V1.0 / V5.1
Engineering with: PROFINET from GSD version/GSD revision V2.3 / -
Operating mode: DQ Yes
Operating mode: DQ with energy-saving function No
Operating mode: PWM No
Operating mode: Cam control (switching at comparison values) No
Operating mode: Oversampling No
Operating mode: MSO Yes
Operating mode: Integrated operating cycle counter No

Output voltage 2

Rated value (DC) 24 V; 48 V, 125 V
Rated value (AC) 24 V; 48 V (50 - 60 Hz)

Power 1

Power consumption from the backplane bus 2 W
Show all 93 specifications ↓ Show less ↑72 more values in Identification, Power loss, Digital outputs, Interrupts/diagnostics/status information, Potential separation, Permissible potential difference, Isolation, Standards, approvals, certificates, Security, Ambient conditions, Dimensions, Weights, General Product Approval EMV, Logistics.

Identification 10

Part number 6ES7522-5EH00-0AB0
Type designation DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623406068
ETIM class EC001419
eCl@ss 27242204

Power loss 1

Power loss, typ. 3.8 W

Digital outputs 25

Type of digital output Transistor
Number of digital outputs 16
Current-sinking Yes
Current-sourcing Yes
Digital outputs, parameterizable Yes
Limitation of inductive shutdown voltage to 200 V (suppressor diode)
Controlling a digital input Yes
Switching capacity of the outputs: with resistive load, max. 0.5 A
Switching capacity of the outputs: on lamp load, max. 40 W; At 125 V DC, 10 W at 48 V UC, 5 W at 24 V UC
Output voltage: for signal "1", min. L+ (-1.0 V)
Output current: for signal "1" rated value 0.5 A
Output current: for signal "1" permissible range, max. 0.6 A
Output delay with resistive load: "0" to "1", max. 5 ms
Output delay with resistive load: "1" to "0", max. 5 ms
Parallel switching of two outputs: for logic links Yes
Parallel switching of two outputs: for uprating No
Parallel switching of two outputs: for redundant control of a load Yes
Switching frequency: with resistive load, max. 25 Hz
Switching frequency: with inductive load, max. 0.5 Hz
Switching frequency: on lamp load, max. 10 Hz
Total current of the outputs: Current per channel, max. 0.5 A
Total current of the outputs: Current per group, max. 0.5 A
Total current of the outputs: Current per module, max. 8 A
Cable length: shielded, max. 1 000 m
Cable length: unshielded, max. 600 m

Interrupts/diagnostics/status information 13

Diagnostics function No
Substitute values connectable Yes
Alarms: Diagnostic alarm No
Alarms: Maintenance interrupt No
Diagnoses: Monitoring the supply voltage No
Diagnoses: Wire break No
Diagnoses: Short-circuit No
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) No
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics No
Diagnostics indication LED: for module diagnostics Yes; red LED

Potential separation 3

Potential separation channels: between the channels Yes
Potential separation channels: between the channels, in groups of 1
Potential separation channels: between the channels and backplane bus Yes

Permissible potential difference 1

between different circuits 125 V DC/48 V AC

Isolation 1

Isolation tested with 2 000 V DC

Standards, approvals, certificates 3

Suitable for safety functions No
Suitable for safety-related tripping of standard modules Yes; From FS02
Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 PL d

Security 2

signed firmware update No
data integrity No

Ambient conditions 2

Ambient temperature during operation: horizontal installation, min. 0 °C
Ambient temperature during operation: vertical installation, min. 0 °C

Dimensions 3

Width 35 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 230 g

General Product Approval EMV 1

Manufacturer Declara- China RoHS tion

Logistics 6

Net weight 0.33 kg
Country of origin DE
Shipping weight 0.83 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7522-5EH00-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST

What is the rated current of DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST?

The rated current of DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST is 0.5 A.

Which supply voltage is DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST rated for?

The rated operational voltage of DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST is 24 V AC.

What is the HS code of DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST for customs?

The tariff (HS) code on file for DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST is 85389091.

What is the EAN of DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST?

The EAN (GTIN) of DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST is 4047623406068.

Where does DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST ship from, and how fast?

DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
