Part number
6ES7522-1BL10-0AA0
Model no
DQ 32x24VDC/0.5A BA
$539.24 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC S7-1500

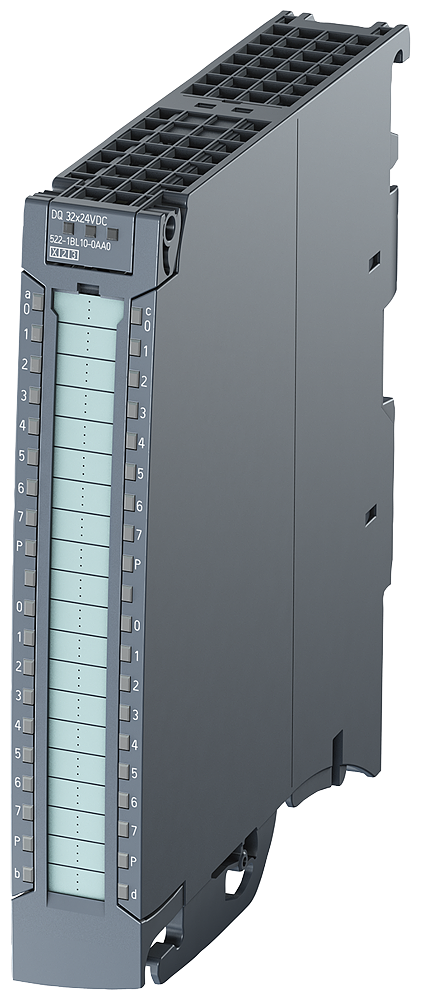

Siemens 6ES7522-1BL10-0AA0 SIMATIC S7-1500 DQ 32x24VDC/0.5A BA 32-Channel Digital Output Module

SIMATIC S7-1500 DQ32x24VDC/0.5A BA, 32-channel digital output, SIL2/PL d capable

Rated current
0.5 A
Rated operational voltage
24 V AC
EAN
4047623402503
Description

About the DQ 32x24VDC/0.5A BA

The Siemens 6ES7522-1BL10-0AA0 is a SIMATIC S7-1500 digital output module, type DQ32x24VDC/0.5A BA, with 32 transistor outputs in groups of 8, each channel rated 0.5 A and each group 4 A. It supports safety-oriented shutdown of load groups up to SIL2 per IEC 62061 and Category 3/PL d per ISO 13849-1.

Selection Notes

The 0.5 A per-channel rating and 4 A per-group ceiling put this module in the standard-duty class for S7-1500 digital output boards, sized for relay coils, contactor pilot circuits, and indicator loads rather than direct motor or high-current actuator switching. The SIL 2 / PL d safety-related tripping capability (module FS02 and higher) lets a standard I/O module take part in a safety shutdown path, which removes the need for a separate fail-safe output module in installations that only require category 3 performance level d. Choose a fail-safe F-DQ module instead when the application needs SIL 3 or a fully certified safety channel rather than safety-related tripping of a standard module.

Applications

Drives relay coils, contactor pilot circuits, solenoid valves, and status indicators in S7-1500-based machine and process control panels, including applications where the output group also needs a SIL 2 / PL d shutdown path.

Specification

Full specification

98 values · Last verified 01 Nov 2026

General information 16

Product type designation DQ 32x24VDC/0.5A BA
HW functional status FS01
Firmware version V1.0.0
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: Prioritized startup Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version V13 / V13
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PROFIBUS from GSD version/GSD revision V1.0 / V5.1
Engineering with: PROFINET from GSD version/GSD revision V2.3 / -
Operating mode: DQ Yes
Operating mode: DQ with energy-saving function No
Operating mode: PWM No
Operating mode: Oversampling No
Operating mode: MSO Yes

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes; through internal protection with 7 A per group

Input current 1

Current consumption, max. 60 mA
Show all 98 specifications ↓ Show less ↑77 more values in Identification, Output voltage, Power, Power loss, Digital outputs, Interrupts/diagnostics/status information, Potential separation, Isolation, Standards, approvals, certificates, Security, Ambient conditions, Dimensions, Weights, Other, Logistics.

Identification 10

Part number 6ES7522-1BL10-0AA0
Type designation DQ 32x24VDC/0.5A BA
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623402503
ETIM class EC001419
eCl@ss 27242204

Output voltage 1

Rated value (DC) 24 V

Power 1

Power consumption from the backplane bus 1.15 W

Power loss 1

Power loss, typ. 3.8 W

Digital outputs 29

Type of digital output Transistor
Number of digital outputs 32
Current-sourcing Yes
Digital outputs, parameterizable No
Short-circuit protection Yes
Response threshold, typ. 1 A
Limitation of inductive shutdown voltage to L+ (-53 V)
Controlling a digital input Yes
Switching capacity of the outputs: with resistive load, max. 0.5 A
Switching capacity of the outputs: on lamp load, max. 5 W
Load resistance range: lower limit 48 Ω
Load resistance range: upper limit 12 kΩ
Output voltage: for signal "1", min. L+ (-0.8 V)
Output current: for signal "1" rated value 0.5 A
Output current: for signal "1" permissible range, max. 0.5 A
Output current: for signal "0" residual current, max. 0.5 mA
Output delay with resistive load: "0" to "1", max. 100 µs
Output delay with resistive load: "1" to "0", max. 500 µs
Parallel switching of two outputs: for logic links Yes
Parallel switching of two outputs: for uprating No
Parallel switching of two outputs: for redundant control of a load Yes
Switching frequency: with resistive load, max. 100 Hz
Switching frequency: with inductive load, max. 0.5 Hz; According to IEC 60947-5-1, DC-13
Switching frequency: on lamp load, max. 10 Hz
Total current of the outputs: Current per channel, max. 0.5 A; see additional description in the manual
Total current of the outputs: Current per group, max. 4 A; see additional description in the manual
Total current of the outputs: Current per module, max. 16 A; see additional description in the manual
Cable length: shielded, max. 1 000 m
Cable length: unshielded, max. 600 m

Interrupts/diagnostics/status information 14

Diagnostics function No
Substitute values connectable No
Alarms: Diagnostic alarm No
Alarms: Maintenance interrupt No
Diagnoses: Monitoring the supply voltage No
Diagnoses: Wire break No
Diagnoses: Short-circuit No
Diagnoses: Group error No
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics No
Diagnostics indication LED: for module diagnostics No

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels, in groups of 8
Potential separation channels: between the channels and backplane bus Yes

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 3

Suitable for safety functions No
Suitable for safety-related tripping of standard modules Yes; From FS02
Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 PL d

Security 2

signed firmware update No
data integrity No

Ambient conditions 1

Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Dimensions 3

Width 25 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 280 g

Other 1

Note: Supplied incl. 40-pole push-in front connectors

Logistics 6

Net weight 0.358 kg
Country of origin DE
Shipping weight 0.858 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7522-1BL10-0AA0

No documents are on file for this part yet.
