Part number
6ES7522-1BH01-0AB0
Model no
DQ 16x24VDC/0.5A HF
$299.12 In stock · 39 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC S7-1500

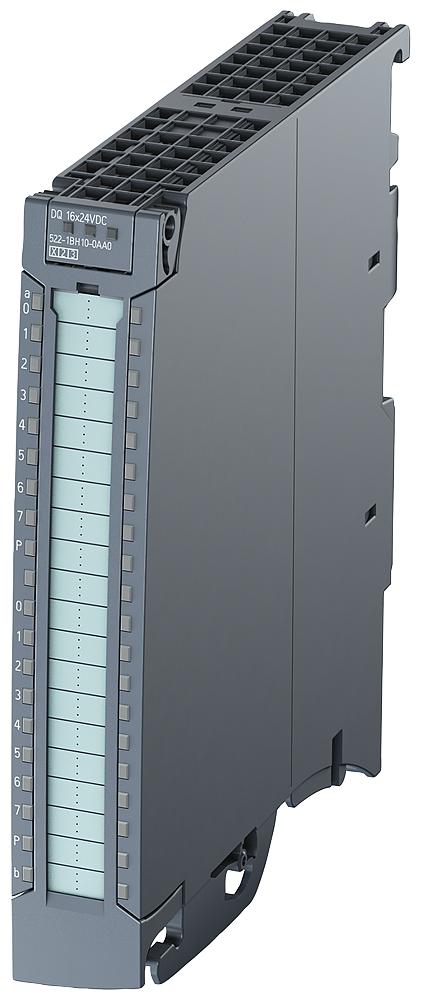

Siemens 6ES7522-1BH01-0AB0 SIMATIC S7-1500 DQ16x24VDC/0.5A HF Digital Output Module

SIMATIC S7-1500 DQ16x24VDC/0.5A HF - 16 channels, 4A per group, SIL2/PLd safety shutdown capable.

Rated current
0.5 A
Rated operational voltage
24 V AC
Display
RUN, ERROR, MAINT, PWR, channel status LEDs
EAN
4047623405931
Description

About the DQ 16x24VDC/0.5A HF

The Siemens 6ES7522-1BH01-0AB0 is a SIMATIC S7-1500 digital output module type DQ16x24VDC/0.5A HF, providing 16 transistor outputs in two groups of 8 with 4 A per group and single-channel diagnostics. It supports safety-oriented shutdown of load groups up to SIL2 per IEC 62061:2021 and Category 3/PL d per ISO 13849-1:2015. A front connector must be ordered separately.

Selection Notes

The 4 A per-group limit across two groups of 8 channels means all 16 outputs cannot run at their full 0.5 A rating simultaneously without exceeding the group budget, which matters when sizing a load list rather than just checking the per-channel current. Support for safety-oriented shutdown up to SIL2 and Category 3/PL d lets this standard output module also perform the de-energizing side of a safety function, avoiding a dedicated F-DQ module where the input side of the safety loop is already handled elsewhere. The 100 Hz switching frequency on resistive loads and single-channel diagnostics suit applications that need to know which individual output failed, not just that the module has a fault.

Applications

Driving 24 V DC solenoids, contactor coils, and indicator loads from an S7-1500 rack where per-channel diagnostics and a SIL2/PL d-capable safety shutdown path are required alongside standard discrete control.

Specification

Full specification

104 values · Last verified 01 Nov 2026

General information 17

Product type designation DQ 16x24VDC/0.5A HF
HW functional status FS02
Firmware version V1.1.0
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode Yes
Product function: Prioritized startup Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version V13 SP1 / -
Engineering with: PROFIBUS from GSD version/GSD revision V1.0 / V5.1
Engineering with: PROFINET from GSD version/GSD revision V2.3 / -
Operating mode: DQ Yes
Operating mode: DQ with energy-saving function No
Operating mode: PWM No
Operating mode: Cam control (switching at comparison values) No
Operating mode: Oversampling No
Operating mode: MSO Yes
Operating mode: Integrated operating cycle counter Yes

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes; through internal protection with 7 A per group

Input current 1

Current consumption, max. 30 mA
Show all 104 specifications ↓ Show less ↑82 more values in Identification, Output voltage, Power, Power loss, Digital outputs, Isochronous mode, Interrupts/diagnostics/status information, Potential separation, Isolation, Standards, approvals, certificates, Security, Ambient conditions, Dimensions, Weights, General Product Approval, Logistics.

Identification 10

Part number 6ES7522-1BH01-0AB0
Type designation DQ 16x24VDC/0.5A HF
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623405931
ETIM class EC001419
eCl@ss 27242204

Output voltage 1

Rated value (DC) 24 V

Power 1

Power consumption from the backplane bus 1.1 W

Power loss 1

Power loss, typ. 2 W

Digital outputs 29

Type of digital output Transistor
Number of digital outputs 16
Current-sourcing Yes
Digital outputs, parameterizable Yes
Short-circuit protection Yes; Clocked electronically
Response threshold, typ. 1 A
Limitation of inductive shutdown voltage to L+ (-53 V)
Controlling a digital input Yes
Switching capacity of the outputs: with resistive load, max. 0.5 A
Switching capacity of the outputs: on lamp load, max. 5 W
Load resistance range: lower limit 48 Ω
Load resistance range: upper limit 12 kΩ
Output voltage: for signal "1", min. L+ (-0.8 V)
Output current: for signal "1" rated value 0.5 A
Output current: for signal "1" permissible range, max. 0.5 A
Output current: for signal "0" residual current, max. 0.5 mA
Output delay with resistive load: "0" to "1", max. 100 µs
Output delay with resistive load: "1" to "0", max. 500 µs
Parallel switching of two outputs: for logic links Yes
Parallel switching of two outputs: for uprating No
Parallel switching of two outputs: for redundant control of a load Yes
Switching frequency: with resistive load, max. 100 Hz
Switching frequency: with inductive load, max. 0.5 Hz; According to IEC 60947-5-1, DC-13
Switching frequency: on lamp load, max. 10 Hz
Total current of the outputs: Current per channel, max. 0.5 A; see additional description in the manual
Total current of the outputs: Current per group, max. 4 A; see additional description in the manual
Total current of the outputs: Current per module, max. 8 A; see additional description in the manual
Cable length: shielded, max. 1 000 m
Cable length: unshielded, max. 600 m

Isochronous mode 2

Execution and activation time (TCO), min. 70 µs
Bus cycle time (TDP), min. 250 µs

Interrupts/diagnostics/status information 15

Diagnostics function Yes
Substitute values connectable Yes
Alarms: Diagnostic alarm Yes
Alarms: Maintenance interrupt Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes
Diagnoses: Short-circuit Yes
Diagnoses: Group error Yes
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: MAINT LED Yes; Yellow LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; red LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels, in groups of 8
Potential separation channels: between the channels and backplane bus Yes

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 3

Suitable for safety functions No
Suitable for safety-related tripping of standard modules Yes; From FS02
Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 PL d

Security 2

signed firmware update No
data integrity No

Ambient conditions 3

Ambient temperature during operation: horizontal installation, min. 0 °C
Ambient temperature during operation: vertical installation, min. 0 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Dimensions 3

Width 35 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 230 g

General Product Approval 1

Miscellaneous Manufacturer Declara- tion

Logistics 6

Net weight 0.272 kg
Country of origin DE
Shipping weight 0.772 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026
