Siemens 6ES7521-1BP00-0AA0 SIMATIC S7-1500 DI 64x24VDC SNK/SRC BA PLC I/O Module

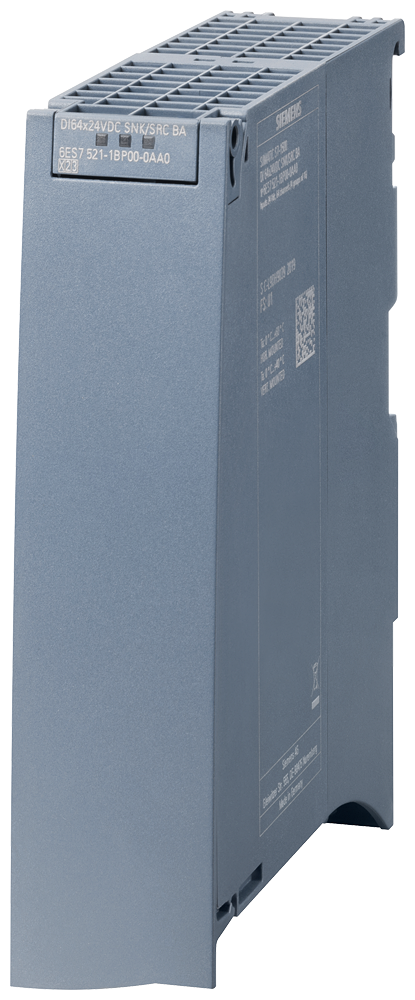

The Siemens SIMATIC S7-1500 6ES7521-1BP00-0AA0 (DI 64x24VDC BA) is a 64-channel digital input module for 24 V DC sinking/sourcing signals, organized in groups of 16 with an IEC 61131 type-3 input characteristic. Typical input delay is 3 to 4 ms, the module occupies 8 bytes of the process image, and it mounts in a 35 mm wide housing on the S7-1500 backplane bus.

Technical Specifications

Selection Notes

BA in the designation marks the basic (non-fail-safe, non-high-feature) 64-channel version - pick it for standard digital-input counts where 64 points in one slot reduces rack width versus multiple 16- or 32-channel modules, and use the fail-safe or high-feature variants only when SIL-rated inputs or per-channel diagnostics are required. Sinking/sourcing (SNK/SRC) capability means the same module accepts PNP or NPN 2-wire and 3-wire sensors without rewiring for polarity, useful when the field devices on a machine mix sensor types. Cable and TOP connect front connectors are ordered separately, so budget for those on new installs.

Applications

Used for high-density discrete sensor wiring on the S7-1500 backplane - limit switches, proximity sensors, pushbuttons, and other 24 V DC field inputs on machines where minimizing the number of I/O slots matters.
