Part number
6ES7521-1BL10-0AA0
Model no
DI 32x24VDC BA
$444.02 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC S7-1500

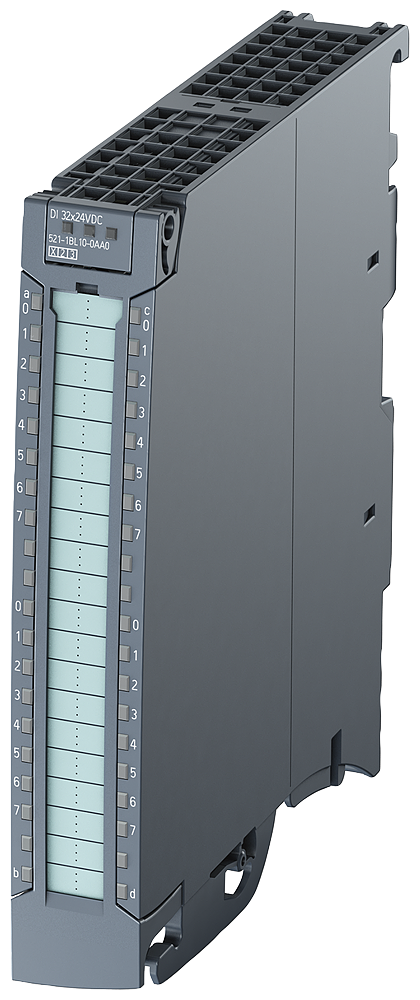

Siemens 6ES7521-1BL10-0AA0 SIMATIC S7-1500 DI 32x24VDC BA Digital Input Module

SIMATIC S7-1500 DI 32x24VDC BA - 32 digital inputs, 24V DC, IEC 61131 Type 3, IP20

Rated operational voltage
24 V AC
EAN
4047623402527
Description

About the DI 32x24VDC BA

The Siemens 6ES7521-1BL10-0AA0 is a SIMATIC S7-1500 DI 32x24VDC BA digital input module with 32 channels grouped in sets of 16, a 24 V DC input rating, and a 3-4 ms input delay per IEC 61131 type 3 characteristic curve.

Selection Notes

32 channels in groups of 16 keep a fault on one field circuit isolated from the other half of the module, useful when the 32 inputs come from two separate machine zones on the same rail. The BA (basic) grade covers standard field-wiring diagnostics without the safety-rated shutdown path of a fail-safe F-DI module, so pick this variant for standard process I/O and reserve an F-DI module for SIL/PL-rated interlocks. It ships with 40-pole push-in front connectors, so no separate connector purchase is needed to commission it.

Applications

Used for standard digital sensor and switch inputs - proximity sensors, limit switches, pushbuttons - on S7-1500 racks where safety-rated shutdown is not required.

Specification

Full specification

78 values · Last verified 01 Nov 2026

General information 14

Product type designation DI 32x24VDC BA
HW functional status FS01
Firmware version V1.0.0
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: Prioritized startup Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version V13 / V13
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PROFIBUS from GSD version/GSD revision V1.0 / V5.1
Engineering with: PROFINET from GSD version/GSD revision V2.3 / -
Operating mode: DI Yes
Operating mode: Counter No
Operating mode: MSI Yes

Supply voltage 3

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V

Power 1

Power consumption from the backplane bus 1.05 W
Show all 78 specifications ↓ Show less ↑60 more values in Identification, Power loss, Digital inputs, Encoder, Interrupts/diagnostics/status information, Potential separation, Isolation, Standards, approvals, certificates, Security, Ambient conditions, Dimensions, Version Classification, General Product Approval, Logistics.

Identification 10

Part number 6ES7521-1BL10-0AA0
Type designation DI 32x24VDC BA
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623402527
ETIM class EC001419
eCl@ss 27242204

Power loss 1

Power loss, typ. 3 W

Digital inputs 11

Number of digital inputs 32
Digital inputs, parameterizable No
Sourcing/sinking input P-reading
Input characteristic curve in accordance with IEC 61131, type 3 Yes
Input voltage: Rated value (DC) 24 V
Input voltage: for signal "0" -30 to +5 V
Input voltage: for signal "1" +11 to +30V
Input current: for signal "1", typ. 2.7 mA
Input delay (for rated value of input voltage) for standard inputs: parameterizable No
Cable length: shielded, max. 1 000 m
Cable length: unshielded, max. 600 m

Encoder 2

Connectable encoders: 2-wire sensor Yes
Connectable encoders: permissible quiescent current (2-wire sensor), max. 1.5 mA

Interrupts/diagnostics/status information 12

Diagnostics function No
Alarms: Diagnostic alarm No
Alarms: Hardware interrupt No
Diagnoses: Monitoring the supply voltage No
Diagnoses: Wire break No
Diagnoses: Short-circuit No
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) No
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics No
Diagnostics indication LED: for module diagnostics No

Potential separation 4

Potential separation channels: between the channels No
Potential separation channels: between the channels, in groups of 16
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics No

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 1

Suitable for safety functions No

Security 2

signed firmware update No
data integrity No

Ambient conditions 3

Ambient temperature during operation: horizontal installation, min. 0 °C
Ambient temperature during operation: vertical installation, min. 0 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Dimensions 1

Width 25 mm

Version Classification 4

eClass 16 27-24-22-04
ETIM 10 EC001419
IDEA 4 3566
UNSPSC 15 32-15-17-05

General Product Approval 2

Miscellaneous Manufacturer Declara-tion For use in hazard-
General Product Approval ous locations

Logistics 6

Net weight 0.36 kg
Country of origin DE
Shipping weight 0.86 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7521-1BL10-0AA0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the DI 32x24VDC BA

Which supply voltage is DI 32x24VDC BA rated for?

The rated operational voltage of DI 32x24VDC BA is 24 V AC.

What is the HS code of DI 32x24VDC BA for customs?

The tariff (HS) code on file for DI 32x24VDC BA is 85389091.

What is the EAN of DI 32x24VDC BA?

The EAN (GTIN) of DI 32x24VDC BA is 4047623402527.

Where does DI 32x24VDC BA ship from, and how fast?

DI 32x24VDC BA ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
