Part number
6ES7521-1BL00-0AB0
Model no
DI 32x24VDC HF
$438.84 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC S7-1500

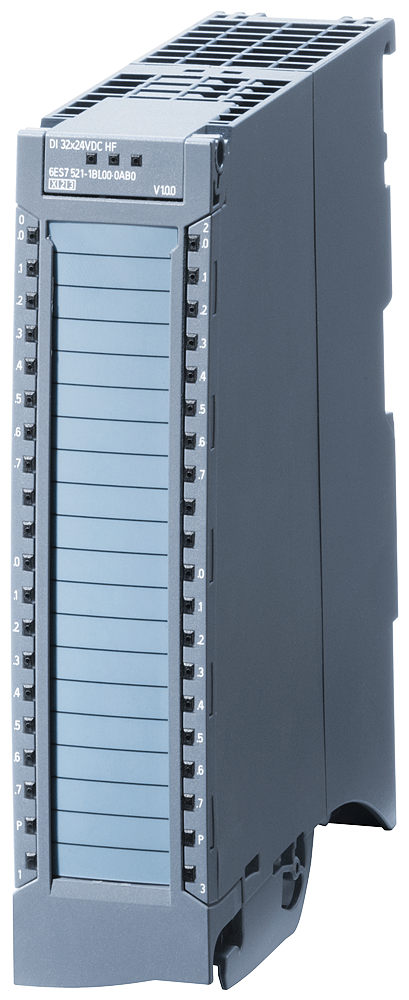

Siemens 6ES7521-1BL00-0AB0 SIMATIC S7-1500 DI 32x24VDC HF Digital Input Module

SIMATIC S7-1500 DI 32x24VDC HF digital input module: 32 channels, 2 counter channels up to 6kHz, IEC 61131 type 3, 24V DC.

Rated current
0.04 A
Rated operational voltage
24 V AC
EAN
4025515080015
Description

About the DI 32x24VDC HF

The Siemens 6ES7521-1BL00-0AB0 is a SIMATIC S7-1500 DI 32x24VDC HF digital input module with 32 channels in 2 groups of 16, 2 of which can run as counters up to 6 kHz. Input delay is parameterizable from 0.05 to 20 ms per IEC 61131 type 3. It draws up to 40 mA from a 24 V DC supply and reports wire-break and short-circuit diagnostics.

Selection Notes

At 32 channels in 2 groups of 16, the DI 32x24VDC HF packs twice the channel density of the DI 16x24VDC HF in the same 35 mm housing width, which halves the slot count for large digital-input counts on an S7-1500 rack. Two of the 32 channels can run as 32-bit up-counters to 6 kHz — enough for low-speed flow or proximity-sensor counting without a dedicated counter module. Input delay is parameterizable down to 0.05 ms, so noisy field signals can be filtered per group without slowing down fast digital inputs used for interrupts. Front connectors are ordered separately (screw-terminal or push-in), worth checking against existing S7-1500 wiring stock before ordering.

Applications

Used where an S7-1500 station needs a high channel-count digital input module — sensor-dense machine cells, conveyor zone monitoring, and panels consolidating many discrete field signals onto fewer slots.

Specification

Full specification

88 values · Last verified 01 Nov 2026

General information 15

Product type designation DI 32x24VDC HF
HW functional status from FS04
Firmware version V2.2.1
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode Yes
Product function: Prioritized startup Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version V13 SP1 / -
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PROFIBUS from GSD version/GSD revision V1.0 / V5.1
Engineering with: PROFINET from GSD version/GSD revision V2.3 / -
Operating mode: DI Yes
Operating mode: Counter Yes
Operating mode: Oversampling No
Operating mode: MSI Yes

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes

Input current 1

Current consumption, max. 40 mA; 20 mA per group with 24 V DC supply
Show all 88 specifications ↓ Show less ↑68 more values in Identification, Power, Power loss, Digital inputs, Encoder, Isochronous mode, Interrupts/diagnostics/status information, Potential separation, Isolation, Standards, approvals, certificates, Security, Ambient conditions, Dimensions, Weights, General Product Approval For use in hazardous locations, For use in hazardous locations, Logistics.

Identification 10

Part number 6ES7521-1BL00-0AB0
Type designation DI 32x24VDC HF
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4025515080015
ETIM class EC001419
eCl@ss 27242204

Power 1

Power consumption from the backplane bus 1.1 W

Power loss 1

Power loss, typ. 4.2 W

Digital inputs 17

Number of digital inputs 32
Digital inputs, parameterizable Yes
Sourcing/sinking input P-reading
Input characteristic curve in accordance with IEC 61131, type 3 Yes
Digital input functions, parameterizable: Gate start/stop Yes
Digital input functions, parameterizable: Freely usable digital input Yes
Counter: Number, max. 2
Counter: Counting frequency, max. 3 kHz; FS04 and FW V2.2.1 or higher
Counter: Counting width 32 bit
Counter: Counting direction up/down Up
Input voltage: Rated value (DC) 24 V
Input voltage: for signal "0" -30 to +5 V
Input voltage: for signal "1" +11 to +30V
Input current: for signal "1", typ. 2.5 mA
Input delay (for rated value of input voltage) for standard inputs: parameterizable Yes; 0.05 / 0.1 / 0.4 / 1.6 / 3.2 / 12.8 / 20 ms
Cable length: shielded, max. 1 000 m
Cable length: unshielded, max. 600 m

Encoder 2

Connectable encoders: 2-wire sensor Yes
Connectable encoders: permissible quiescent current (2-wire sensor), max. 1.5 mA

Isochronous mode 2

Filtering and processing time (TCI), min. 80 µs; At 50 μs filter time
Bus cycle time (TDP), min. 250 µs

Interrupts/diagnostics/status information 12

Diagnostics function Yes
Alarms: Diagnostic alarm Yes
Alarms: Hardware interrupt Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; to I < 350 µA
Diagnoses: Short-circuit No
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; red LED

Potential separation 4

Potential separation channels: between the channels Yes
Potential separation channels: between the channels, in groups of 16
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics No

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 1

Suitable for safety functions No

Security 2

signed firmware update No
data integrity No

Ambient conditions 3

Ambient temperature during operation: horizontal installation, min. -30 °C; From FS05
Ambient temperature during operation: vertical installation, min. -30 °C; From FS05
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Dimensions 3

Width 35 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 260 g

General Product Approval For use in hazardous locations 1

China RoHS Manufacturer Declara- FM tion

For use in hazardous locations 1

FM CCC-Ex Type Examination Cer- tificate

Logistics 6

Net weight 0.32 kg
Country of origin DE
Shipping weight 0.82 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026
