Part number
6ES7521-1BH50-0AA0
Model no
DI 16x24VDC SRC BA
$223.56 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC S7-1500

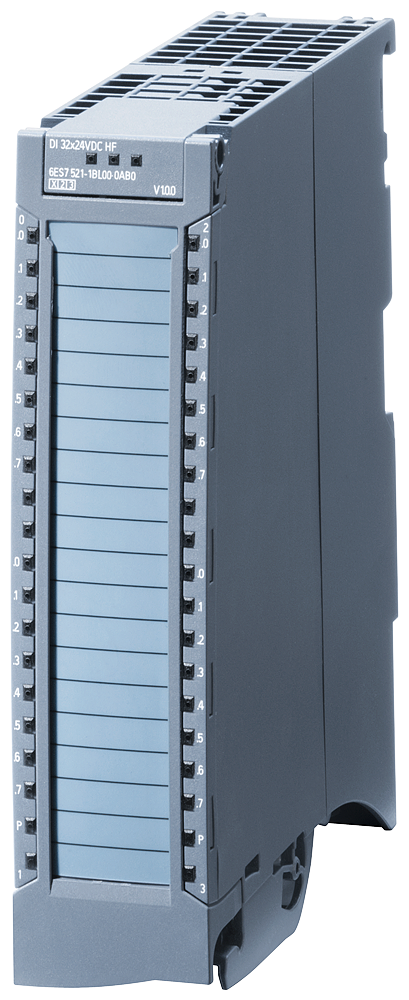

Siemens 6ES7521-1BH50-0AA0 SIMATIC S7-1500 DI 16x24VDC SRC BA Digital Input PLC I/O Module

SIMATIC S7-1500 DI 16x24VDC SRC BA, 16 sourcing digital inputs, IEC 61131 type 3, front connector separate.

Rated operational voltage
24 V AC
EAN
4025515080251
Description

About the DI 16x24VDC SRC BA

The Siemens 6ES7521-1BH50-0AA0 is a SIMATIC S7-1500 digital input module, DI 16x24VDC SRC BA, providing 16 sourcing-type 24 V DC inputs wired in a single group of 16. It follows the IEC 61131 input characteristic curve type 3 with an input delay of 3 to 4 ms, and it needs a front connector (screw terminals or push-in) ordered separately.

Selection Notes

BA in the product designation marks the Basic performance class within the S7-1500 digital input family, so it covers standard-accuracy 24 V DC sensing without the tighter delay classes or diagnostic reporting of the HF (high-feature) modules in the same slot count. The sourcing (SRC) wiring means field sensors switch the positive rail into the input, matching PNP-type proximity switches and sensors already common on 24 V DC panels; sinking-type NPN sensors need the sinking variant instead. Because all 16 channels share one input group, this module suits applications that do not need per-channel potential separation; where individually isolated input groups are required, a module with smaller group sizes is the better fit.

Applications

Panel-mounted status and limit-switch sensing on machines already wired with PNP-type 24 V DC field devices, where the standard 3 to 4 ms input delay is fast enough for the application.

Specification

Full specification

95 values · Last verified 01 Nov 2026

General information 15

Product type designation DI 16x24VDC SRC BA
HW functional status FS01
Firmware version V2.0.0
FW update possible Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: Prioritized startup Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version V12 / V12
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PROFIBUS from GSD version/GSD revision V1.0 / V5.1
Engineering with: PROFINET from GSD version/GSD revision V2.3 / -
Operating mode: DI Yes
Operating mode: Counter No
Operating mode: Oversampling No
Operating mode: MSI Yes

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes

Power 1

Power consumption from the backplane bus 0.9 W
Show all 95 specifications ↓ Show less ↑75 more values in Identification, Power loss, Address area, Digital inputs, Encoder, Interrupts/diagnostics/status information, Potential separation, Isolation, Standards, approvals, certificates, Security, Ambient conditions, Dimensions, Weights, Other, Logistics.

Identification 10

Part number 6ES7521-1BH50-0AA0
Type designation DI 16x24VDC SRC BA
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4025515080251
ETIM class EC001419
eCl@ss 27242204

Power loss 1

Power loss, typ. 2.8 W

Address area 2

Address space per module: Inputs 2 byte; typical, maximum 16 bytes, see manual for details
Address space per module: Outputs 0 byte

Digital inputs 19

Number of digital inputs 16
Digital inputs, parameterizable No
Sourcing/sinking input Sourcing
Input characteristic curve in accordance with IEC 61131, type 3 Yes
Pulse extension No
Edge evaluation No
Signal change flutter No
Flutter observation window No
Number of simultaneously controllable inputs: Number of simultaneously controllable inputs 16
Digital input functions, parameterizable: Freely usable digital input Yes
Digital input functions, parameterizable: Counter No
Digital input functions, parameterizable: Digital input with oversampling No
Input voltage: Rated value (DC) 24 V
Input voltage: for signal "0" -5 to +30V
Input voltage: for signal "1" -11 to -30V
Input current: for signal "1", typ. 4.5 mA
Input delay (for rated value of input voltage) for standard inputs: Parameterizable No
Cable length: shielded, max. 1 000 m
Cable length: unshielded, max. 600 m

Encoder 2

Connectable encoders: 2-wire sensor Yes
Connectable encoders: permissible quiescent current (2-wire sensor), max. 1.5 mA

Interrupts/diagnostics/status information 12

Diagnostics function No
Alarms: Diagnostic alarm No
Alarms: Hardware interrupt No
Diagnoses: Monitoring the supply voltage No
Diagnoses: Wire break No
Diagnoses: short-circuit No
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) No
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics No
Diagnostics indication LED: for module diagnostics No

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels, in groups of 16
Potential separation channels: between the channels and backplane bus Yes

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 7

Siemens Eco Profile (SEP) Siemens EcoTech
Suitable for safety functions No
Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 18.9 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 12.1 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 7.66 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -1.02 kg

Security 3

signed firmware update Yes; Firmware V3.0.0 or higher
safely removing data No
data integrity Yes; Firmware V3.0.0 or higher

Ambient conditions 4

Ambient temperature during operation: horizontal installation, min. -25 °C; From FS05
Ambient temperature during operation: vertical installation, min. -25 °C; From FS05
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Absolute humidity: dew point, min. -60 °C; suitable for dry room applications

Dimensions 3

Width 35 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 230 g

Other 1

Note: please order front connectors (screw-in/push-in) separately

Logistics 6

Net weight 0.275 kg
Country of origin DE
Shipping weight 0.775 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026
