Part number
6ES7518-4AP00-0AB0
Model no
CPU 1518-4 PN/DP
$10,417.28 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
Manufacturer phase-out

Siemens has announced the end of 6ES7518-4AP00-0AB0

Once production ends, supply depends on remaining stock.

No replacement announced yet. Tell us the application and we will propose an alternative.

SIMATIC S7-1500

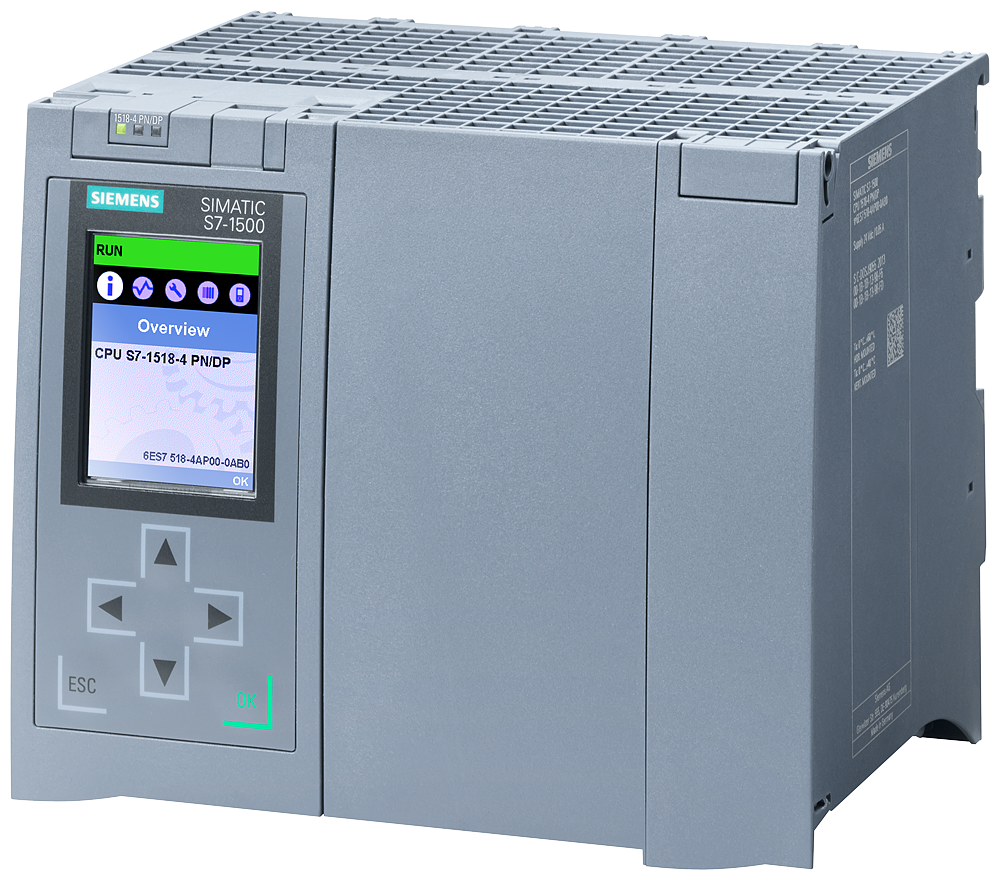

Siemens 6ES7518-4AP00-0AB0 S7-1500 CPU 1518-4 PN/DP 6MB/60MB Programmable Logic Controller

SIMATIC S7-1500 CPU 1518-4 PN/DP, 6MB program/60MB data, PROFINET IRT+RT+Ethernet, PROFIBUS, 1ns bit performance.

Rated operational voltage
24 V AC
Communication
PROFINET IRT (2-port switch), PROFINET RT, Ethernet, PROFIBUS DP
Display
6.1 cm screen, 6 keys, mode selector switch
EAN
4047623402114
Description

About the CPU 1518-4 PN/DP

The Siemens 6ES7518-4AP00-0AB0 is a SIMATIC S7-1500 CPU 1518-4 PN/DP with 6 MB program memory and 60 MB data memory, running bit operations at 1 ns. It provides four interfaces: PROFINET IRT with an integrated 2-port switch, PROFINET RT, Ethernet, and PROFIBUS, and requires a SIMATIC Memory Card to operate.

Selection Notes

With 6 MB program memory, 60 MB data memory, and a 1 ns bit-operation time, this CPU sits above smaller-memory CPUs in the S7-1500 PN/DP line, so it fits large programs, heavier recipe or data-logging footprints, and isochronous cycles down to 125 microseconds in distributed mode - useful for synchronized multi-axis motion segments needing the shortest achievable cycle. The fourth interface is a dedicated Ethernet port separate from the two PROFINET (IRT/RT) ports and the PROFIBUS port, so IT-level traffic such as diagnostics or MES/ERP data exchange can run on its own physical connection instead of sharing bandwidth with the PROFINET segments. A SIMATIC Memory Card is mandatory - the CPU will not run without one plugged into its single card slot.

Applications

Large machine or process control needing large program and data memory, isochronous PROFINET IRT motion cycles down to 125 microseconds, and a dedicated IT-network Ethernet port alongside PROFINET RT and PROFIBUS field networks.

Specification

Full specification

317 values · Last verified 01 Nov 2026

General information 6

Product type designation CPU 1518-4 PN/DP
HW functional status FS10
Firmware version V2.9
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode Yes; Distributed and central; with minimum OB 6x cycle of 125 µs (distributed) and 1 ms (central)
Engineering with: STEP 7 TIA Portal configurable/integrated from version V17 (FW V2.9) / V13 (FW V1.5) or higher

Configuration control 1

via dataset Yes

Display 1

Screen diagonal [cm] 6.1 cm
Show all 317 specifications ↓ Show less ↑309 more values in Identification, Control elements, Supply voltage, Input current, Power, Power loss, Storage, CPU processing times, CPU-blocks, Counters, timers and their retentivity, Data areas and their retentivity, Address area, Hardware configuration, Time of day, Interfaces, 1. Interface, 2. Interface, 3. Interface, 4. Interface, Interface types, Protocols, Isochronous mode, S7 message functions, Test commissioning functions, Interrupts/diagnostics/status information, Supported technology objects, Security, Ambient conditions, Configuration, Dimensions, Weights, Logistics.

Identification 8

Part number 6ES7518-4AP00-0AB0
Type designation CPU 1518-4 PN/DP
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Phase-out announced by the manufacturer
EAN 4047623402114

Control elements 2

Number of keys 6
Mode selector switch 1

Supply voltage 6

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Mains buffering: Mains/voltage failure stored energy time 5 ms
Mains buffering: Repeat rate, min. 1/s

Input current 3

Current consumption (rated value) 1.55 A
Inrush current, max. 2.4 A; Rated value
I2t 0.02 A2·s

Power 2

Infeed power to the backplane bus 12 W
Power consumption from the backplane bus (balanced) 30 W

Power loss 1

Power loss, typ. 24 W

Storage 6

Number of slots for SIMATIC memory card 1
SIMATIC memory card required Yes
Work memory: integrated (for program) 6 Mbyte
Work memory: integrated (for data) 60 Mbyte
Load memory: Plug-in (SIMATIC Memory Card), max. 32 Gbyte
Backup: maintenance-free Yes

CPU processing times 4

for bit operations, typ. 1 ns
for word operations, typ. 2 ns
for fixed point arithmetic, typ. 2 ns
for floating point arithmetic, typ. 6 ns

CPU-blocks 21

Number of elements (total) 20 000; Blocks (OB, FB, FC, DB) and UDTs
DB: Number range 1 ... 60 999; subdivided into: number range that can be used by the user: 1 ... 59 999, and number range of DBs created via SFC 86: 60 000 ... 60 999
DB: Size, max. 16 Mbyte; For DBs with absolute addressing, the max. size is 64 KB
FB: Number range 0 ... 65 535
FB: Size, max. 1 Mbyte
FC: Number range 0 ... 65 535
FC: Size, max. 1 Mbyte
OB: Size, max. 1 Mbyte
OB: Number of free cycle OBs 100
OB: Number of time alarm OBs 20
OB: Number of delay alarm OBs 20
OB: Number of cyclic interrupt OBs 20; with minimum OB 3x cycle of 100 µs
OB: Number of process alarm OBs 50
OB: Number of DPV1 alarm OBs 3
OB: Number of isochronous mode OBs 3
OB: Number of technology synchronous alarm OBs 2
OB: Number of startup OBs 100
OB: Number of asynchronous error OBs 4
OB: Number of synchronous error OBs 2
OB: Number of diagnostic alarm OBs 1
Nesting depth: per priority class 24

Counters, timers and their retentivity 8

S7 counter: Number Retentivity 2 048
S7 counter: adjustable Yes
IEC counter: Number Retentivity Any (only limited by the main memory)
IEC counter: adjustable Yes
S7 timer: Number Retentivity 2 048
S7 timer: adjustable Yes
IEC timer: Number Retentivity Any (only limited by the main memory)
IEC timer: adjustable Yes

Data areas and their retentivity 7

Retentive data area (incl. timers, counters, flags), max. 768 kbyte; In total; available retentive memory for bit memories, timers, counters, DBs, and technology data (axes): 700 KB
Extended retentive data area (incl. timers, counters, flags), max. 20 Mbyte; When using PS 6 0W 24/48/60 V DC HF
Flag: Size, max. 16 kbyte
Flag: Number of clock memories 8; 8 clock memory bit, grouped into one clock memory byte
Data blocks: Retentivity adjustable Yes
Data blocks: Retentivity preset No
Local data: per priority class, max. 64 kbyte; max. 16 KB per block

Address area 7

Number of IO modules 16 384; max. number of modules / submodules
I/O address area: Inputs 32 kbyte; All inputs are in the process image
I/O address area: Outputs per integrated IO subsystem 32 kbyte; All outputs are in the process image
I/O address area: Inputs (volume) 32 kbyte; max. 32 KB via X1; max. 8 KB via X2 or X4
I/O address area: Outputs (volume) per CM/CP 32 kbyte; max. 32 KB via X1; max. 8 KB via X2 or X4
I/O address area: Outputs (volume) 8 kbyte
Subprocess images: Number of subprocess images, max. 32

Hardware configuration 8

Number of distributed IO systems 64; A distributed I/O system is characterized not only by the integration of distributed I/O via PROFINET or PROFIBUS communication modules, but also by the connection of I/O via AS-i master modules or links (e.g. IE/PB-Link)
Number of DP masters: integrated 1
Number of DP masters: via CM 8; A maximum of 8 CMs/CPs (PROFIBUS, PROFINET, Ethernet) can be inserted in total
Number of IO Controllers: Integrated 2
Number of IO Controllers: via CM 8; A maximum of 8 CMs/CPs (PROFIBUS, PROFINET, Ethernet) can be inserted in total
Rack: Modules per rack, max. 32; CPU + 31 modules
Rack: Number of lines, max. 1
PtP CM: Number of PtP CMs the number of connectable PtP CMs is only limited by the number of available slots

Time of day 9

Clock: Type Hardware clock
Clock: Backup time 6 wk; At 40 °C ambient temperature, typically
Clock: Deviation per day, max. 10 s; Typ.: 2 s
Operating hours counter: Number 16
Clock synchronization: supported Yes
Clock synchronization: to DP, master Yes
Clock synchronization: in AS, master Yes
Clock synchronization: in AS, device Yes
Clock synchronization: on Ethernet via NTP Yes

Interfaces 2

Number of PROFINET interfaces 3
Number of PROFIBUS interfaces 1

1. Interface 41

Interface types: RJ 45 (Ethernet) Yes; X1
Interface types: Number of ports 2
Interface types: integrated switch Yes
Protocols: IP protocol Yes; IPv4
Protocols: PROFINET IO Controller Yes
Protocols: PROFINET IO Device Yes
Protocols: SIMATIC communication Yes
Protocols: Open IE communication Yes; Optionally also encrypted
Protocols: Web server Yes
Protocols: Media redundancy Yes
PROFINET IO Controller Services: PG/OP communication Yes
PROFINET IO Controller Services: Isochronous mode Yes
PROFINET IO Controller Services: Direct data exchange Yes; Requirement: IRT and isochronous mode (MRPD optional)
PROFINET IO Controller Services: IRT Yes
PROFINET IO Controller Services: Dynamic Frame Packing (DFP) Yes
PROFINET IO Controller Services: PROFIenergy Yes; per user program
PROFINET IO Controller Services: Prioritized startup Yes; Max. 32 PROFINET devices
PROFINET IO Controller Services: Number of connectable IO Devices, max. 512; In total, up to 1 000 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET
PROFINET IO Controller Services: Of which IO devices with IRT, max. 64
PROFINET IO Controller Services: of which in line, max. 512
PROFINET IO Controller Services: Number of IO Devices that can be simultaneously activated/deactivated, max. 8; in total across all interfaces
PROFINET IO Controller Services: Number of IO Devices per tool, max. 8
PROFINET IO Controller Services: Updating times Update time for IRT The minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data
PROFINET IO Controller Services: for send cycle of 125 µs 125 µs
PROFINET IO Controller Services: for send cycle of 187.5 µs 187.5 µs
PROFINET IO Controller Services: for send cycle of 250 µs 250 µs to 4 ms
PROFINET IO Controller Services: for send cycle of 500 µs 500 µs to 8 ms
PROFINET IO Controller Services: for send cycle of 1 ms 1 ms to 16 ms
PROFINET IO Controller Services: for send cycle of 2 ms 2 ms to 32 ms
PROFINET IO Controller Services: for send cycle of 4 ms 4 ms to 64 ms
PROFINET IO Controller Services: With IRT and parameterization of "odd" send cycles Update time for RT Update time = set "odd" send clock (any multiple of 125 µs: 375 µs, 625 µs ... 3 875 µs)
PROFINET IO Device Services: PG/OP communication Yes
PROFINET IO Device Services: Isochronous mode No
PROFINET IO Device Services: IRT Yes; Minimum send cycle of 250 µs
PROFINET IO Device Services: Dynamic Frame Packing (DFP) Yes
PROFINET IO Device Services: PROFIenergy Yes; per user program
PROFINET IO Device Services: Prioritized startup Yes
PROFINET IO Device Services: Shared device Yes
PROFINET IO Device Services: Number of IO Controllers with shared device, max. 4
PROFINET IO Device Services: activation/deactivation of I-devices Yes; per user program
PROFINET IO Device Services: Asset management record Yes; per user program

2. Interface 34

Interface types: RJ 45 (Ethernet) Yes; X2
Interface types: Number of ports 1
Interface types: integrated switch No
Protocols: IP protocol Yes; IPv4
Protocols: PROFINET IO Controller Yes
Protocols: PROFINET IO device Yes
Protocols: SIMATIC communication Yes
Protocols: Open IE communication Yes; Optionally also encrypted
Protocols: Web server Yes
Protocols: Media redundancy No
PROFINET IO Controller Services: PG/OP communication Yes
PROFINET IO Controller Services: Isochronous mode No
PROFINET IO Controller Services: Direct data exchange No
PROFINET IO Controller Services: IRT No
PROFINET IO Controller Services: Dynamic Frame Packing (DFP) No
PROFINET IO Controller Services: PROFIenergy Yes; per user program
PROFINET IO Controller Services: Prioritized startup No
PROFINET IO Controller Services: Number of connectable IO Devices, max. 128; In total, up to 1 000 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET
PROFINET IO Controller Services: of which in line, max. 128
PROFINET IO Controller Services: Number of IO Devices that can be simultaneously activated/deactivated, max. 8; in total across all interfaces
PROFINET IO Controller Services: IO Devices changing during operation (partner ports), supported Yes
PROFINET IO Controller Services: Number of IO Devices per tool, max. 8
PROFINET IO Controller Services: Updating times Update time for RT The minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data
PROFINET IO Controller Services: for send cycle of 1 ms 1 ms to 512 ms
PROFINET IO Device Services: PG/OP communication Yes
PROFINET IO Device Services: Isochronous mode No
PROFINET IO Device Services: IRT No
PROFINET IO Device Services: Dynamic Frame Packing (DFP) No
PROFINET IO Device Services: PROFIenergy Yes; per user program
PROFINET IO Device Services: Prioritized startup No
PROFINET IO Device Services: Shared device Yes
PROFINET IO Device Services: Number of IO Controllers with shared device, max. 4
PROFINET IO Device Services: activation/deactivation of I-devices Yes; per user program
PROFINET IO Device Services: Asset management record Yes; per user program

3. Interface 9

Interface types: RJ 45 (Ethernet) Yes; X3
Interface types: Number of ports 1
Interface types: integrated switch No
Protocols: IP protocol Yes; IPv4
Protocols: PROFINET IO Controller No
Protocols: PROFINET IO Device No
Protocols: SIMATIC communication Yes
Protocols: Open IE communication Yes
Protocols: Web server Yes

4. Interface 11

Interface types: RS 485 Yes; X4
Interface types: Number of ports 1
Protocols: PROFIBUS DP master Yes
Protocols: PROFIBUS DP device No
Protocols: SIMATIC communication Yes
PROFIBUS DP master: Number of connections, max. 48; for the integrated PROFIBUS DP interface
PROFIBUS DP master: max. number of DP devices Services 125; In total, up to 1 000 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET
PROFIBUS DP master: PG/OP communication Yes
PROFIBUS DP master: Equidistance Yes
PROFIBUS DP master: Isochronous mode Yes
PROFIBUS DP master: activation/deactivation of DP devices Yes

Interface types 6

RJ 45 (Ethernet): 100 Mbps Yes
RJ 45 (Ethernet): 1000 Mbps Yes; Only possible at the X3 interface of the CPU 1518
RJ 45 (Ethernet): Autonegotiation Yes
RJ 45 (Ethernet): Autocrossing Yes
RJ 45 (Ethernet): Industrial Ethernet status LED Yes
RS 485: Transmission rate, max. 12 Mbit/s

Protocols 43

PROFIsafe No
Number of connections: Number of connections, max. 384; via integrated interfaces of the CPU and connected CPs / CMs
Number of connections: Number of connections reserved for ES/HMI/web 10
Number of connections: Number of connections via integrated interfaces 320
Number of connections: Number of S7 routing paths 64; in total, only 16 S7-Routing connections are supported via PROFIBUS
Redundancy mode: PROFINET system redundancy (S2) No
Redundancy mode: PROFINET system redundancy (R1) No
Redundancy mode: H-Sync forwarding Media redundancy Yes
Redundancy mode: Media redundancy only via 1st interface (X1)
Redundancy mode: MRP Yes; MRP Automanager according to IEC 62439-2 Edition 2.0, MRP Manager; MRP Client
Redundancy mode: MRP interconnection, supported Yes; as MRP ring node according to IEC 62439-2 Edition 3.0
Redundancy mode: MRPD Yes; Requirement: IRT
Redundancy mode: Switchover time on line break, typ. 200 ms; For MRP, bumpless for MRPD
Redundancy mode: Number of stations in the ring, max. 50
SIMATIC communication: PG/OP communication Yes; encryption with TLS V1.3 pre-selected
SIMATIC communication: S7 routing Yes
SIMATIC communication: Data record routing Yes
SIMATIC communication: S7 communication, as server Yes
SIMATIC communication: S7 communication, as client Yes
SIMATIC communication: User data per job, max. See online help (S7 communication, user data size)
Open IE communication: TCP/IP Yes
Open IE communication: Data length, max. 64 kbyte
Open IE communication: several passive connections per port, supported Yes
Open IE communication: ISO-on-TCP (RFC1006) Yes
Open IE communication: UDP Yes
Open IE communication: UDP multicast Yes; 128 multicast circuits (of which max. 5 via X1)
Open IE communication: DHCP Yes
Open IE communication: DNS Yes
Open IE communication: SNMP Yes
Open IE communication: DCP Yes
Open IE communication: LLDP Yes
Open IE communication: encryption Yes; Optional
Web server: HTTP Yes; Standard and user pages
Web server: HTTPS Yes; Standard and user pages
OPC UA: Runtime license required Yes; "Large" license required
OPC UA: OPC UA Client Yes
OPC UA: Application authentication Yes
OPC UA: Security policies Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256
OPC UA: User authentication "anonymous" or by user name & password
OPC UA: Number of connections, max. 40
OPC UA: Number of nodes of the client interfaces, recommended max. 5 000
Number of elements for one call of 300 OPC_UA_NodeGetHandleList/OPC_UA_ReadList/OPC_UA_WriteList, max.: Number of elements for one call of OPC_UA_NameSpaceGetIndexList, max. 20
Further protocols: MODBUS Yes; MODBUS TCP

Isochronous mode 1

Equidistance Yes

S7 message functions 6

Number of login stations for message functions, max. 64
Program alarms Yes
Number of configurable program messages, max. 10 000; Program messages are generated by the "Program_Alarm" block, ProDiag or GRAPH
Number of loadable program messages in RUN, max. 5 000
Number of simultaneously active program alarms: Number of program alarms 4 000
Number of simultaneously active program alarms: Number of alarms for system diagnostics 1 000

Test commissioning functions 15

Joint commission (Team Engineering) Yes; Parallel online access possible for up to 10 engineering systems
Status block Yes; Up to 16 simultaneously (in total across all ES clients)
Single step No
Number of breakpoints 20
Status/control: Status/control variable Yes
Status/control: Variables Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
Number of variables, max.: of which status variables, max. 200; per job
Number of variables, max.: of which control variables, max. 200; per job
Forcing: Forcing Yes
Forcing: Forcing, variables Peripheral inputs/outputs
Forcing: Number of variables, max. 200
Diagnostic buffer: present Yes
Diagnostic buffer: Number of entries, max. 3 200
Diagnostic buffer: of which powerfail-proof 1 000
Traces: Number of configurable Traces 8; Up to 512 KB of data per trace are possible

Interrupts/diagnostics/status information 4

Diagnostics indication LED: RUN/STOP LED Yes
Diagnostics indication LED: ERROR LED Yes
Diagnostics indication LED: MAINT LED Yes
Diagnostics indication LED: Connection display LINK TX/RX Yes

Supported technology objects 14

Motion Control Yes; Note: The number of technology objects affects the cycle time of the PLC program; selection guide via the TIA Selection Tool
Number of available Motion Control resources for technology objects 15 360
Required Motion Control resources: per speed-controlled axis 40
Required Motion Control resources: per positioning axis 80
Required Motion Control resources: per synchronous axis 160
Required Motion Control resources: per external encoder 80
Required Motion Control resources: per output cam 20
Required Motion Control resources: per cam track 160
Required Motion Control resources: per probe 40
Positioning axis: Number of positioning axes at motion control cycle of 4 ms (typical value) 140
Controller: PID_Compact Yes; Universal PID controller with integrated optimization
Controller: PID_3Step Yes; PID controller with integrated optimization for valves
Controller: PID-Temp Yes; PID controller with integrated optimization for temperature
Counting and measuring: High-speed counter Yes

Security 1

PROFINET Security Class 1

Ambient conditions 5

Ambient temperature during operation: horizontal installation, min. 0 °C
Ambient temperature during operation: vertical installation, min. 0 °C
Ambient temperature during storage/transportation: min. -40 °C
Ambient temperature during storage/transportation: max. 70 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Configuration 15

Programming Programming language: LAD Yes
Programming Programming language: FBD Yes
Programming Programming language: STL Yes
Programming Programming language: SCL Yes
Programming Programming language: GRAPH Yes
Know-how protection: User program protection/password protection Yes
Know-how protection: Copy protection Yes
Know-how protection: Block protection Yes
Access protection: protection of confidential configuration data Yes
Access protection: Password for display Yes
Access protection: Protection level: Write protection Yes
Access protection: Protection level: Read/write protection Yes
Access protection: Protection level: Complete protection Yes
Cycle time monitoring: lower limit adjustable minimum cycle time
Cycle time monitoring: upper limit adjustable maximum cycle time

Dimensions 3

Width 175 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 1 988 g

Logistics 6

Net weight 2.24 kg
Country of origin DE
Shipping weight 2.74 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7518-4AP00-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • GDS support (certificate management)
Quick answers

Questions about the CPU 1518-4 PN/DP

Which supply voltage is CPU 1518-4 PN/DP rated for?

The rated operational voltage of CPU 1518-4 PN/DP is 24 V AC.

What is the HS code of CPU 1518-4 PN/DP for customs?

The tariff (HS) code on file for CPU 1518-4 PN/DP is 85371091.

What is the EAN of CPU 1518-4 PN/DP?

The EAN (GTIN) of CPU 1518-4 PN/DP is 4047623402114.

Where does CPU 1518-4 PN/DP ship from, and how fast?

CPU 1518-4 PN/DP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.

Guides

Guides for PLC & controllers

All guides for PLC & controllers
Reviews

Customer reviews

Series

Siemens SIMATIC S7-1500

Brand
Siemens
Series
SIMATIC S7-1500
$10,417.28 Low stock · 18 Nov
Quote

Get a Quote

CPU 1518-4 PN/DP

Genuine parts

Genuine, factory-sealed parts

Siemens · 6ES7518-4AP00-0AB0

Every part on Stoklink is new, unused and made by the manufacturer named on the page.

Condition
New and unused, in the manufacturer's factory-sealed packaging.
Sourced from
Siemens and its authorised distributors.
Warranty
The manufacturer's warranty applies.
If a part is not genuine
We refund the full amount.

Added to cart Could not add to cart

View cart
