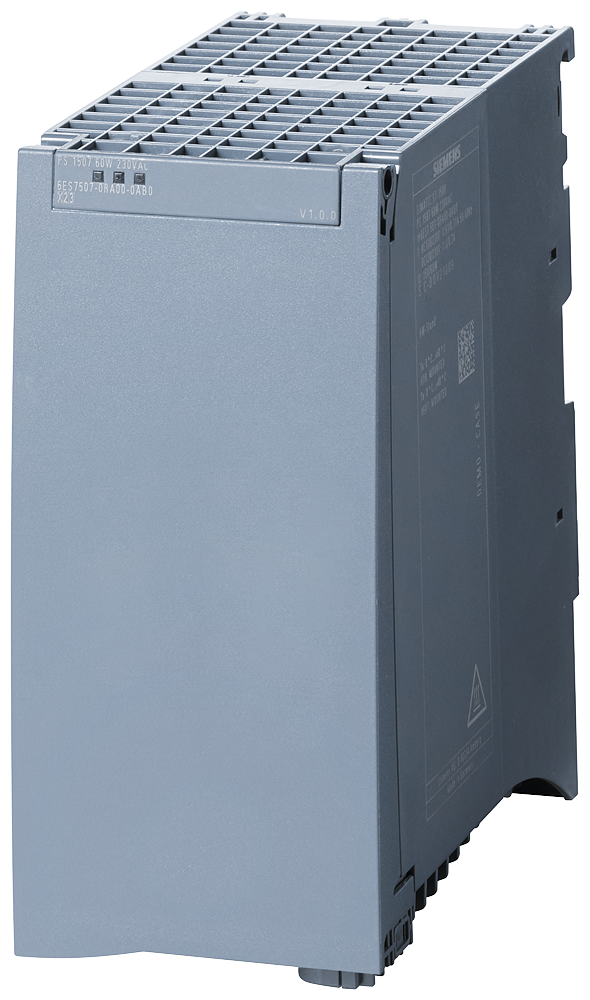

The Siemens PS 60W 120/230V AC/DC (6ES7507-0RA00-0AB0) is a SIMATIC S7-1500 system power supply that feeds the backplane bus with 60 W, accepting 120 V or 230 V AC or DC input across an 85-264 V AC / 88-300 V DC range. It buffers a 20 ms mains failure and operates from -25 to 60 degrees C.
This PS 60W model accepts both AC (85-264 V) and DC (88-300 V) input on the same terminals, so it covers 120 V and 230 V mains without a separate order for DC-only sites. The 60 W backplane bus infeed sizes the rack - total current draw of the CPU plus I/O modules must stay within that 60 W budget when planning a station. A 20 ms mains-failure buffering time rides through momentary supply dips without triggering a CPU restart.
Used as the primary rack supply for SIMATIC S7-1500 stations running on 120 V or 230 V AC mains, or DC-fed installations up to 300 V, where a wide input range removes the need for external step-down conversion.
| Product type designation | PS 60 W 120/230 V AC/DC |
|---|---|
| HW functional status | from FS01 |
| Firmware version | from V1.0.0 |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | V12 / V12 |
| Engineering with: STEP 7 configurable/integrated from version | V5.5 SP3 or higher |
| Rated value (DC) | 120 V / 230 V |
|---|---|
| permissible range, lower limit (DC) | 88 V |
| permissible range, upper limit (DC) | 300 V |
| Rated value (AC) | 120 V / 230 V |
| permissible range, lower limit (AC) | 85 V |
| permissible range, upper limit (AC) | 264 V |
| Short-circuit protection | Yes |
| Line frequency: Rated value 50 Hz | Yes |
| Line frequency: permissible range, lower limit | 47 Hz |
| Line frequency: permissible range, upper limit | 63 Hz |
| Mains buffering: Mains/voltage failure stored energy time | 20 ms |
| Rated value at 120 V DC | 0.6 A |
|---|---|
| Rated value at 230 V DC | 0.3 A |
| Rated value at 120 V AC | 0.6 A |
| Rated value at 230 V AC | 0.34 A |
| Part number | 6ES7507-0RA00-0AB0 |
|---|---|
| Type designation | PS 60 W 120/230 V AC/DC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4025515080169 |
| ETIM class | EC000599 |
| eCl@ss | 27242209 |
| Short-circuit protection | Yes |
|---|
| Infeed power to the backplane bus | 60 W |
|---|
| Power loss at nominal rating conditions | 12 W |
|---|
| Status indicator | Yes |
|---|
| primary/secondary | Yes |
|---|
| Isolation tested with EMC | 2 500 V DC/2 s (routine test) |
|---|---|
| Interference immunity against voltage surge: Interference immunity on supply lines acc. to IEC 61000- | Yes; ±1 kV (acc. to IEC 61000-4-5; 1995; surge symm.), ±2 kV (acc. to IEC |
| 4-5 | 61000-4-5; 1995; surge asymm.), no external protective circuit required |
| Equipment protection class | I, with protective conductor |
|---|
| Ambient temperature during operation: min. | -25 °C; up to FS04: 0 °C |
|---|---|
| Ambient temperature during operation: max. | 60 °C |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 2 000 m |
| Width | 70 mm |
|---|---|
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 600 g |
|---|
| Miscellaneous Manufacturer Declara- | tion |
|---|---|
| BIS CRS Manufacturer Declara- China RoHS | tion |
| Net weight | 0.602 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 1.102 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of PS 60 W 120/230 V AC/DC is 0.6 A.
The rated operational voltage of PS 60 W 120/230 V AC/DC is 120–230 V AC.
The rated motor power of PS 60 W 120/230 V AC/DC is 0.06 kW.
The tariff (HS) code on file for PS 60 W 120/230 V AC/DC is 85044095.
The EAN (GTIN) of PS 60 W 120/230 V AC/DC is 4025515080169.
PS 60 W 120/230 V AC/DC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
