Part number
6ES7505-0RB00-0AB0
Model no
PS 60 W 24/48/60 V DC HF
$1,015.34 On request Dispatch — · From TürkiyeGet a Quote
Manufacturer phase-out

Siemens has announced the end of 6ES7505-0RB00-0AB0

Once production ends, supply depends on remaining stock.

No replacement announced yet. Tell us the application and we will propose an alternative.

SIMATIC S7-1500

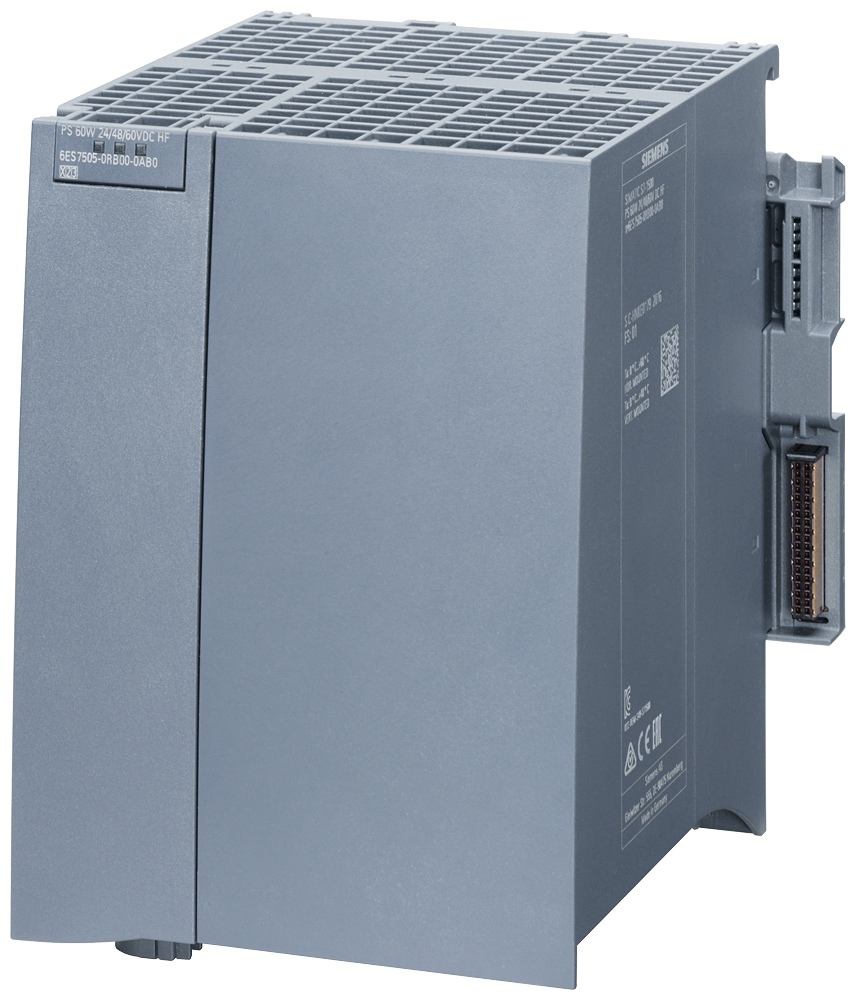

Siemens 6ES7505-0RB00-0AB0 SIMATIC S7-1500 PS 60W 24/48/60V DC HF PLC Power Supply

SIMATIC S7-1500 PS 60W HF power supply - 24/48/60V DC input, retentive RAM buffer, 20ms hold time.

Rated current
3 A
Rated operational voltage
24–48–60 V DC
Motor power
0.06 kW
EAN
4047623407850
Description

About the PS 60 W 24/48/60 V DC HF

The Siemens 6ES7505-0RB00-0AB0 is a SIMATIC S7-1500 system power supply rated 60 W that feeds the backplane bus from 24 V, 48 V, or 60 V DC input and buffers CPU RAM retentively during a supply interruption. It accepts 19.2-72 V DC with reverse-polarity and short-circuit protection and provides a 20 ms mains-buffering hold time.

Selection Notes

The HF (High Feature) designation marks the buffer-capable power supply variant: it retains S7-1500 CPU RAM data retentively through a supply interruption, unlike a basic PS without buffer functionality. The tri-voltage 24/48/60 V DC rated input covers three common DC bus voltages from one part number, so it fits panels standardized on 48 V or 60 V DC distribution without a separate PS model. Reserve this unit for racks where retentive data protection during dips matters; a standard non-HF PS is adequate where that buffering is not required.

Applications

Fits S7-1500 backplane feeds in control cabinets running 24 V, 48 V, or 60 V DC distribution, and in installations where a brief supply dip must not corrupt CPU retentive memory - such as machines on generator or battery-backed DC buses with momentary voltage sag.

Specification

Full specification

45 values · Last verified 01 Nov 2026

General information 4

Product type designation PS 60 W 24/48/60 V DC HF
HW functional status from FS01
Firmware version from V1.0.0
Engineering with: STEP 7 TIA Portal configurable/integrated from version V14 SP1

Supply voltage 6

Rated value (DC) 24 V / 48 V / 60 V
permissible range, lower limit (DC) 19.2 V; Static 19.2 V, dynamic 18.5 V
permissible range, upper limit (DC) 72 V; Static 72 V, dynamic 75.5 V
Reverse polarity protection Yes
Short-circuit protection Yes
Mains buffering: Mains/voltage failure stored energy time 20 ms

Input current 4

Rated value at 24 V DC 3 A
Rated value at 48 V DC 1.5 A
Rated value at 60 V DC 1.2 A
Inrush current, max. ≤ 8 A for t ≤ 1 s
Show all 45 specifications ↓ Show less ↑31 more values in Identification, Output current, Power, Power loss, Interrupts/diagnostics/status information, Isolation, EMC, Degree and class of protection, Ambient conditions, Version Classification, For use in hazardous locations, Logistics.

Identification 10

Part number 6ES7505-0RB00-0AB0
Type designation PS 60 W 24/48/60 V DC HF
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Phase-out announced by the manufacturer
EAN 4047623407850
ETIM class EC000599
eCl@ss 27242209

Output current 1

Short-circuit protection Yes

Power 1

Infeed power to the backplane bus 60 W

Power loss 1

Power loss at nominal rating conditions 12 W

Interrupts/diagnostics/status information 1

Status indicator Yes

Isolation 1

Isolation tested with 2 500 V DC (type test)

EMC 2

Interference immunity against voltage surge: Interference immunity on supply lines acc. to IEC 61000- Yes; ±1 kV (acc. to IEC 61000-4-5; 1995; surge symm.), ±2 kV (acc. to IEC
4-5 61000-4-5; 1995; surge asymm.), no external protective circuit required

Degree and class of protection 1

Equipment protection class I, with protective conductor

Ambient conditions 2

Ambient temperature during operation: min. -25 °C; up to FS02: 0 °C
Ambient temperature during operation: max. 60 °C

Version Classification 4

eClass 16 27-24-22-09
ETIM 10 EC000599
IDEA 4 3575
UNSPSC 15 32-15-17-06

For use in hazardous locations 1

FM CCC-Ex Type Examination Cer- tificate

Logistics 6

Net weight 1.088 kg
Country of origin DE
Shipping weight 1.588 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7505-0RB00-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the PS 60 W 24/48/60 V DC HF

What is the rated current of PS 60 W 24/48/60 V DC HF?

The rated current of PS 60 W 24/48/60 V DC HF is 3 A.

Which supply voltage is PS 60 W 24/48/60 V DC HF rated for?

The rated operational voltage of PS 60 W 24/48/60 V DC HF is 24–48–60 V DC.

What motor power is PS 60 W 24/48/60 V DC HF rated for?

The rated motor power of PS 60 W 24/48/60 V DC HF is 0.06 kW.

What is the HS code of PS 60 W 24/48/60 V DC HF for customs?

The tariff (HS) code on file for PS 60 W 24/48/60 V DC HF is 85044095.

What is the EAN of PS 60 W 24/48/60 V DC HF?

The EAN (GTIN) of PS 60 W 24/48/60 V DC HF is 4047623407850.

Where does PS 60 W 24/48/60 V DC HF ship from, and how fast?

PS 60 W 24/48/60 V DC HF ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
