Siemens 6ES7461-3AA01-0AA0 SIMATIC S7-400 IM 461-3 Receiver Interface PLC Connection Module

% $-1,258.99

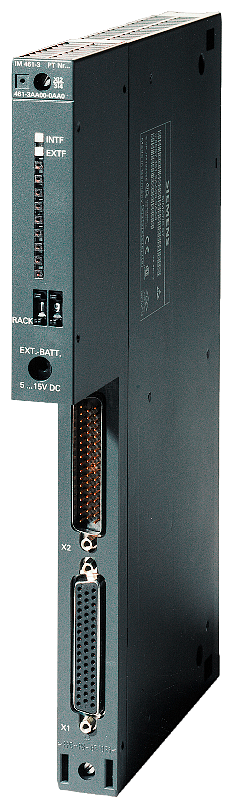

Siemens 6ES7461-3AA01-0AA0 IM 461-3 receiver interface module for SIMATIC S7-400
Siemens 6ES7461-3AA01-0AA0 IM 461-3 receiver interface module for SIMATIC S7-400

Siemens 6ES7461-3AA01-0AA0 SIMATIC S7-400 IM 461-3 Receiver Interface PLC Connection Module

Brand: Siemens
Reference No: 6ES7461-3AA01-0AA0
Catalog No: 6ES7461-3AA01-0AA0
Series: SIMATIC S7-400
Tariff Code (HS): 85176200
Communication: C-bus
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$1,258.99

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7461-3AA01-0AA0 is a SIMATIC S7-400 IM 461-3 receiver interface module that pairs with an IM 460-3 send module for distributed rack coupling over a cable run of up to 102.25 m. It carries the C-bus across that distance, keeping cross-rack diagnostics and configuration available at 3.1 W max power loss.

Technical Specifications

Catalog No 6ES7461-3AA01-0AA0
SKU 6ES7461-3AA01-0AA0
Brand Siemens
Series SIMATIC S7-400
Product designation IM 461-3 receiver interface module
Function Distributed coupling, up to 102 m, with C-bus
Input current from backplane bus 5V DC, max 620 mA
Power loss, max 3100 mW
Cable length between first and last interface module, max 102.25 m
Required termination plug 6ES7461-3AA0-7AA1
Dimensions (W x H x D) 25 x 290 x 280 mm
Weight 620 g

Selection Notes

This receiver pairs only with an IM 460-3 send module, and the 102.25 m maximum run is what sets it apart from the IM 461-0 and IM 461-1 receivers, both limited to a few meters. Pick it when the expansion rack sits in a different cabinet or building area, and keep the C-bus benefit of cross-rack diagnostics in mind against its higher current draw and power loss. It terminates with the 6ES7461-3AA0-7AA1 plug.

Technical Details

Short Description
SIMATIC S7-400 IM 461-3 receiver interface module for distributed coupling, C-bus, up to 102.25 m.
Mounting Type
S7-400 rack, 25 mm slot width
Catalog No
6ES7461-3AA01-0AA0
Delivery Date (Days)
10-15 days
Model Number
6ES7461-3AA01-0AA0
Tariff Code
85176200
