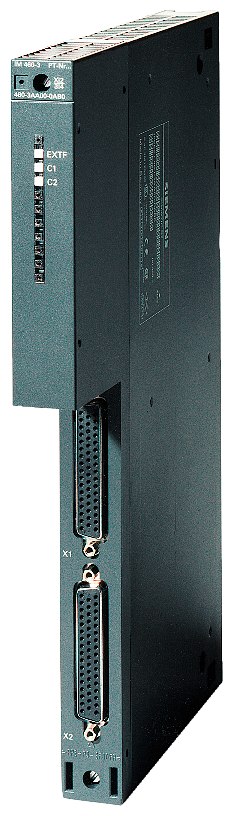

The Siemens 6ES7460-3AA01-0AB0 is a SIMATIC S7-400 IM 460-3 send interface module for distributed coupling, linking a central rack to an expansion rack over a cable run of up to 102.25 m. It carries the C-bus across that distance, keeping cross-rack diagnostics and configuration available at 7.75 W max power loss.
The 102.25 m maximum run is what separates the IM 460-3 from the IM 460-0 and IM 460-1, both limited to a few meters: pick it when the expansion rack sits in a different cabinet or a different part of the plant. Carrying the C-bus keeps cross-rack diagnostics available at that distance, at a higher current draw and power loss than the short-distance variants. It pairs with an IM 461-3 receiver module and the 6ES7461-3AA0-7AA0 termination plug on the far end of the cable run.
| Part number | 6ES7460-3AA01-0AB0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169033343 |
| Communication | C-bus |
|---|
| Shipping weight | 1.329 kg |
|---|---|
| Mounting | Rack |
| HS code | 85176200 |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| Series | SIMATIC S7-400 |
|---|---|
| Product designation | IM 460-3 send interface module |
| Function | Distributed coupling, up to 102 m, with C-bus |
| Input current from backplane bus 5V DC, max | 1550 mA |
| Power loss, max | 7750 mW |
| Cable length between first and last interface module, max | 102.25 m |
| Required termination plug | 6ES7461-3AA0-7AA0 |
| Dimensions (W x H x D) | 25 x 290 x 280 mm |
| Weight | 630 g |
From the manufacturer description; the values above take precedence.
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for 6ES7460-3AA01-0AB0 is 85176200.
The EAN (GTIN) of 6ES7460-3AA01-0AB0 is 4019169033343.
6ES7460-3AA01-0AB0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
