Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

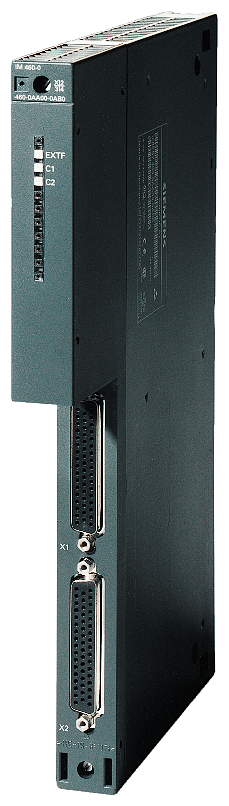

The Siemens 6ES7460-0AA01-0AB0 is a SIMATIC S7-400 IM 460-0 send interface module that links a central rack to an expansion rack over a cable up to 5 m long. It carries the C-bus across that link, so the expansion rack keeps full cross-rack configuration and diagnostics, but it does not transfer the power-supply bus, so the expansion rack needs its own supply.
Carrying the C-bus is what sets the IM 460-0 apart from the IM 460-1: it keeps cross-rack diagnostics and configuration data available to the expansion rack, at the cost of needing its own power supply there since the module does not transfer PS. Pick it over the IM 460-1 when the expansion rack needs full C-bus visibility for diagnostics, and over the longer-distance IM 460-3 variant when the rack-to-rack run stays within the 5 m this module covers. It always pairs with an IM 461-0 receiver module and the 6ES7461-0AA0-7AA0 termination plug on the far end of the cable run.
| from backplane bus 5 V DC, max. | 140 mA |
|---|
| Power loss, max. | 700 mW |
|---|
| Cable length between first and last interface module, max. | 5 m |
|---|
| Part number | 6ES7460-0AA01-0AB0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169023917 |
| termination plug | 6ES7461-0AA0-7AA0 |
|---|
| Width | 25 mm |
|---|---|
| Height | 290 mm |
| Depth | 280 mm |
| Weight, approx. | 600 g |
|---|
| Net weight | 0.6 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for 6ES7460-0AA01-0AB0 is 85176200.
The EAN (GTIN) of 6ES7460-0AA01-0AB0 is 4019169023917.
6ES7460-0AA01-0AB0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
