Part number
6ES7432-1HF00-0AB0
$1,841.27 On request Dispatch — · From TürkiyeGet a Quote
Manufacturer phase-out

Siemens has announced the end of 6ES7432-1HF00-0AB0

Once production ends, supply depends on remaining stock.

No replacement announced yet. Tell us the application and we will propose an alternative.

SIMATIC S7-400

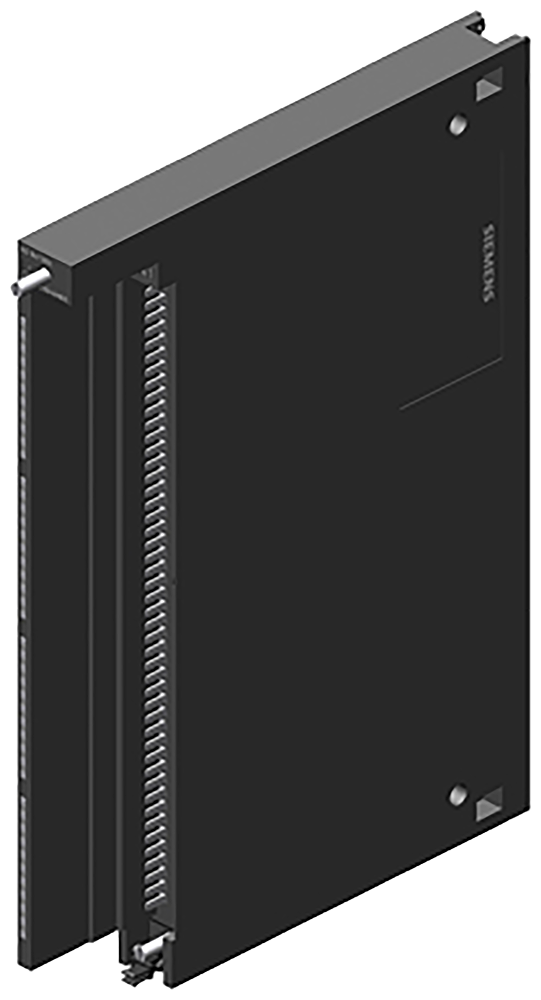

Siemens 6ES7432-1HF00-0AB0 SIMATIC S7-400 SM 432 8AO 13-Bit U/I Analog Output Module

SIMATIC S7-400 SM 432 analog output module, 8 isolated channels, U/I, 13-bit resolution.

Load voltage L+: Rated value (DC)
24 V
Load voltage L+: Reverse polarity protection
Yes
EAN
4025515129011
Description

About the 6ES7432-1HF00-0AB0

The Siemens 6ES7432-1HF00-0AB0 is a SIMATIC S7-400 SM 432 analog output module with 8 isolated channels for voltage or current output at up to 13-bit resolution. Each channel is short-circuit protected, and voltage outputs support two- or four-wire connection to compensate for line resistance on long actuator cables, drawing 24 V DC load voltage with reverse-polarity protection.

Selection Notes

Use the four-wire voltage-output connection on this SM 432 when the actuator cable run is long enough that line resistance would otherwise distort the setpoint, since the two-wire mode has no such compensation. The 500 Ω current-output load limit (600 Ω with reduced common-mode voltage) sets the maximum loop resistance for 4-20 mA actuators driven directly from this module without an external booster.

Applications

Eight isolated voltage or current outputs at 13-bit resolution suit driving control valve positioners, VFD speed references, and analog indicators from an S7-400 rack. Short-circuit protection on every channel means a miswired output does not take down the module or the rest of the rack.

Specification

Full specification

52 values · Last verified 01 Nov 2026

Supply voltage 2

Load voltage L+: Rated value (DC) 24 V
Load voltage L+: Reverse polarity protection Yes

Input current 2

from supply and load voltage L+ (without load), max. 200 mA; at rated load: max. 400 mA
from backplane bus 5 V DC, max. 150 mA

Power loss 1

Power loss, typ. 9 W
Show all 52 specifications ↓ Show less ↑47 more values in Identification, Analog outputs, Analog value generation for the outputs, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Isolation, Dimensions, Weights, General Product Approval EMV, Logistics.

Identification 7

Part number 6ES7432-1HF00-0AB0
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Phase-out announced by the manufacturer
EAN 4025515129011

Analog outputs 16

Number of analog outputs 8
Voltage output, short-circuit protection Yes
Voltage output, short-circuit current, max. 30 mA
Current output, no-load voltage, max. 19 V
Output ranges, voltage: 0 to 10 V Yes
Output ranges, voltage: 1 V to 5 V Yes
Output ranges, voltage: -10 V to +10 V Yes
Output ranges, current: 0 to 20 mA Yes
Output ranges, current: -20 mA to +20 mA Yes
Output ranges, current: 4 mA to 20 mA Yes
Connection of actuators: for voltage output two-wire connection Yes; possible, without compensation of the line resistances
Connection of actuators: for voltage output four-wire connection Yes; possible
Connection of actuators: for current output two-wire connection Yes; possible
Load impedance (in rated range of output): with voltage outputs, min. 1 kΩ
Load impedance (in rated range of output): with current outputs, max. 500 Ω; 600 ohms if common-mode-voltage reduced to <1 V
Cable length: shielded, max. 200 m

Analog value generation for the outputs 5

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 13 bit
Integration and conversion time/resolution per channel: Conversion time (per channel) 420 µs; 420 µs in the ranges 1 to 5 V and 4 to 20 mA; 300 µs in all ranges
Settling time: for resistive load 0.1 ms
Settling time: for capacitive load 3.5 ms
Settling time: for inductive load 0.5 ms

Errors/accuracies 4

Operational error limit in overall temperature range: Voltage, relative to output range, (+/-) 0.5 %; ±10 V, 0 to 10 V, 1 to 5 V
Operational error limit in overall temperature range: Current, relative to output range, (+/-) 1 %; ±20 mA, 4 to 20 mV
Basic error limit (operational limit at 25 °C): Voltage, relative to output range, (+/-) 0.5 %; ±10 V, 0 to 10 V, 1 to 5 V
Basic error limit (operational limit at 25 °C): Current, relative to output range, (+/-) 0.5 %; ±20 mA, 0 to 20 mA

Interrupts/diagnostics/status information 1

Diagnostics function No

Potential separation 2

Potential separation analog outputs: between the channels No
Potential separation analog outputs: between the channels and backplane bus Yes

Isolation 1

Isolation tested with 2 120 V DC between bus and L+/M; 2 120 V DC between bus and analog section; 500 V DC between bus and local ground; 500 V DC between analog section and L+/M; 2 120 V DC between analog section and local ground; 2 120 V DC between L+/M and local ground

Dimensions 3

Width 25 mm
Height 290 mm
Depth 210 mm

Weights 1

Weight, approx. 650 g

General Product Approval EMV 1

China RoHS Miscellaneous Manufacturer Declara-For use in hazardous locations FM tion

Logistics 6

Net weight 0.782 kg
Country of origin DE
Shipping weight 1.282 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7432-1HF00-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 6ES7432-1HF00-0AB0

What is the HS code of 6ES7432-1HF00-0AB0 for customs?

The tariff (HS) code on file for 6ES7432-1HF00-0AB0 is 85389091.

What is the EAN of 6ES7432-1HF00-0AB0?

The EAN (GTIN) of 6ES7432-1HF00-0AB0 is 4025515129011.

Where does 6ES7432-1HF00-0AB0 ship from, and how fast?

6ES7432-1HF00-0AB0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
