SIMATIC S7-400

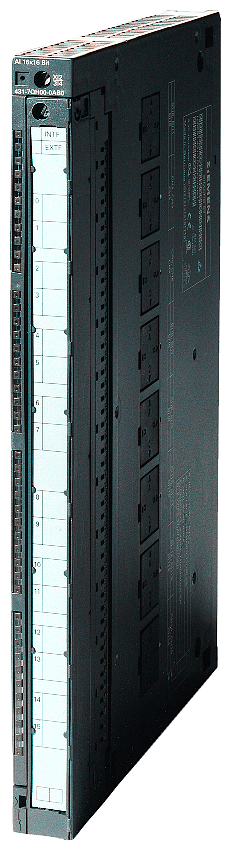

Siemens 6ES7431-7QH00-0AB0 SIMATIC S7-400 SM 431 16AI 16-Bit U/I/R/TC/RTD Input Module

SIMATIC S7-400 SM 431 analog input module, 16 channels, U/I/R/TC/RTD, 16-bit resolution.

Load voltage L+: Rated value (DC)
24 V; Only required for supplying 2-wire transmitters
Load voltage L+: Reverse polarity protection
Yes
EAN
4025515129004
Description

About the 6ES7431-7QH00-0AB0

The Siemens 6ES7431-7QH00-0AB0 is a SIMATIC S7-400 SM 431 analog input module with 16 isolated channels at up to 16-bit resolution. Each channel is individually parameterizable for voltage, current, resistance, thermocouple, or resistance-thermometer (Pt100/Pt1000/Ni100/Ni1000) measurement, covering five sensor types on a single module, with a parameterizable diagnostic alarm reporting out-of-range readings back to the CPU.

Selection Notes

Choose this SM 431 variant when a single module must cover more sensor types than a standard analog input card, since it accepts voltage, current, resistance, thermocouple, and resistance-thermometer signals on the same 16 channels rather than a fixed subset. The 16-channel density also halves the module count versus 8-channel SM 431 variants in installations mixing several signal types across one rack, at the cost of losing one channel's worth of terminals per measurement type change during commissioning.

Applications

The five supported sensor types on 16 channels suit process racks that combine RTD temperature loops, thermocouple points, and standard 4-20 mA transmitters on one S7-400 slot, common in batch and utility skids. Per-channel parameterization lets each input be reconfigured for a different sensor type without rewiring.

Specification

Full specification

127 values · Last verified 01 Nov 2026

Supply voltage 2

Load voltage L+: Rated value (DC) 24 V; Only required for supplying 2-wire transmitters
Load voltage L+: Reverse polarity protection Yes

Input current 2

from load voltage L+ (without load), max. 400 mA; for 16 connected, fully controlled 2-wire transmitters
from backplane bus 5 V DC, max. 700 mA

Power loss 1

Power loss, typ. 4.5 W
Show all 127 specifications ↓ Show less ↑122 more values in Identification, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Isolation, Dimensions, Weights, General Product Approval EMV, Logistics.

Identification 7

Part number 6ES7431-7QH00-0AB0
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Phase-out announced by the manufacturer
EAN 4025515129004

Analog inputs 75

Number of analog inputs 16
For voltage/current measurement 16
For resistance measurement 8
permissible input voltage for voltage input (destruction limit), max. 18 V; 18 V continuous, 75 V for 1 ms (mark to space ratio 1:20)
permissible input current for current input (destruction limit), max. 40 mA
Constant measurement current for resistance-type transmitter, typ. 1.67 mA
Input ranges: Voltage Yes
Input ranges: Current Yes
Input ranges: Thermocouple Yes
Input ranges: Resistance thermometer Yes
Input ranges: Resistance Yes
Input ranges (rated values), voltages: 1 V to 5 V Yes
Input ranges (rated values), voltages: Input resistance (1 V to 5 V) 1 MΩ
Input ranges (rated values), voltages: -1 V to +1 V Yes
Input ranges (rated values), voltages: Input resistance (-1 V to +1 V) 1 MΩ
Input ranges (rated values), voltages: -10 V to +10 V Yes
Input ranges (rated values), voltages: Input resistance (-10 V to +10 V) 1 MΩ
Input ranges (rated values), voltages: -2.5 V to +2.5 V Yes
Input ranges (rated values), voltages: Input resistance (-2.5 V to +2.5 V) 1 MΩ
Input ranges (rated values), voltages: -25 mV to +25 mV Yes
Input ranges (rated values), voltages: Input resistance (-25 mV to +25 mV) 1 MΩ
Input ranges (rated values), voltages: -250 mV to +250 mV Yes
Input ranges (rated values), voltages: Input resistance (-250 mV to +250 mV) 1 MΩ
Input ranges (rated values), voltages: -5 V to +5 V Yes
Input ranges (rated values), voltages: Input resistance (-5 V to +5 V) 1 MΩ
Input ranges (rated values), voltages: -50 mV to +50 mV Yes
Input ranges (rated values), voltages: Input resistance (-50 mV to +50 mV) 1 MΩ
Input ranges (rated values), voltages: -500 mV to +500 mV Yes
Input ranges (rated values), voltages: Input resistance (-500 mV to +500 mV) 1 MΩ
Input ranges (rated values), voltages: -80 mV to +80 mV Yes
Input ranges (rated values), voltages: Input resistance (-80 mV to +80 mV) 1 MΩ
Input ranges (rated values), currents: 0 to 20 mA Yes
Input ranges (rated values), currents: Input resistance (0 to 20 mA) 50 Ω
Input ranges (rated values), currents: -10 mA to +10 mA Yes
Input ranges (rated values), currents: Input resistance (-10 mA to +10 mA) 50 Ω
Input ranges (rated values), currents: -20 mA to +20 mA Yes
Input ranges (rated values), currents: Input resistance (-20 mA to +20 mA) 50 Ω
Input ranges (rated values), currents: 4 mA to 20 mA Yes
Input ranges (rated values), currents: Input resistance (4 mA to 20 mA) 50 Ω
Input ranges (rated values), currents: -5 mA to +5 mA Yes
Input ranges (rated values), currents: Input resistance (-5 mA to +5 mA) 50 Ω
Input ranges (rated values), thermocouples: Type B Yes
Input ranges (rated values), thermocouples: Input resistance (Type B) 1 MΩ
Input ranges (rated values), thermocouples: Type E Yes
Input ranges (rated values), thermocouples: Type J Yes
Input ranges (rated values), thermocouples: Type K Yes
Input ranges (rated values), thermocouples: Type L Yes
Input ranges (rated values), thermocouples: Type N Yes
Input ranges (rated values), thermocouples: Type R Yes
Input ranges (rated values), thermocouples: Type S Yes
Input ranges (rated values), thermocouples: Type T Yes
Input ranges (rated values), thermocouples: Type U Yes
Input ranges (rated values), resistance thermometer: Ni 100 Yes
Input ranges (rated values), resistance thermometer: Input resistance (Ni 100) 1 MΩ
Input ranges (rated values), resistance thermometer: Ni 1000 Yes
Input ranges (rated values), resistance thermometer: Pt 100 Yes
Input ranges (rated values), resistance thermometer: Pt 1000 Yes
Input ranges (rated values), resistance thermometer: Pt 200 Yes
Input ranges (rated values), resistance thermometer: Pt 500 Yes
Input ranges (rated values), resistors: 0 to 48 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 48 ohms) 1 MΩ
Input ranges (rated values), resistors: 0 to 150 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 150 ohms) 1 MΩ
Input ranges (rated values), resistors: 0 to 300 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 300 ohms) 1 MΩ
Input ranges (rated values), resistors: 0 to 600 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 600 ohms) 1 MΩ
Input ranges (rated values), resistors: 0 to 6000 ohms Yes; Usable up to 5000 Ohm
Thermocouple (TC) Temperature compensation: Parameterizable Yes
Thermocouple (TC) Temperature compensation: external temperature compensation with Pt100 Yes
Thermocouple (TC) Temperature compensation: dynamic reference temperature value Yes
Characteristic linearization: Parameterizable Yes
Characteristic linearization: for thermocouples Type B, E, J, K, L, N, R, S, T, U
Characteristic linearization: for resistance thermometer Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000
Cable length: shielded, max. 200 m; 50 m with thermocouples and input ranges ≤ 80 mV

Analog value generation for the inputs 4

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit; 16 / 16 / 16
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes
Integration and conversion time/resolution per channel: Basic conversion time (ms) 6 / 20,1 / 23,5 ms
Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz 400 / 60 / 50 Hz

Encoder 4

Connection of signal encoders: for voltage measurement Yes; possible
Connection of signal encoders: for current measurement as 2-wire transducer Yes
Connection of signal encoders: for current measurement as 4-wire transducer Yes
Connection of signal encoders: for resistance measurement with two-wire connection Yes; Line resistances are also measured

Errors/accuracies 10

Temperature error (relative to input range), (+/-) 0.004 %/K
Operational error limit in overall temperature range: Voltage, relative to input range, (+/-) 0.3 %; ±0.3 % at ±250 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, 1 to 5 V, ±10 V; ±0.31 % at ±80 mV; ±0.32 % at ±50 mV; ±0.35 % at ±25 mV
Operational error limit in overall temperature range: Current, relative to input range, (+/-) 0.3 %; at 0 to 20 mA, ±5 mA, ±10 mA, ±20 mA, 4 to 20 mA
Operational error limit in overall temperature range: Resistance, relative to input range, (+/-) 0.3 %; ±0.3% at 0 to 48 Ohm (4-conductor measurement), 0 to 150 Ohm (4- conductor measurement), 0 to 300 Ohm (4-conductor measurement), 0 to 600 Ohm (4-conductor measurement), 0 to 5000 Ohm (4-conductor measurement, in range of 6000 Ohm); ±0.4% at 0 to 300 Ohm (3-conductor measurement), 0 to 600 Ohm (3-conductor measurement), 0 to 5000 Ohm (3-conductor measurement, in range of 6000 Ohm)
Operational error limit in overall temperature range: Thermocouple, relative to input range, (+/-) TC Type B (±11.5 K), TC Type R (±7.3 K), TC Type S (±8.3 K), TC Type T (±1.7 K), TC Type E (±3.2 K), TC Type J (±4.3 K), TC Type K (±6.2 K), TC Type U (±2.8 K), TC Type L (±4.2 K), TC Type N (±4.4 K)
Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-) 0.15 %; ±0.15% at ±250 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, 1 V to 5 V, ±10 V; ±0.17% at ±80 mV; ±0.19% at ±50 mV; ±0.23% at ±25 mV
Basic error limit (operational limit at 25 °C): Current, relative to input range, (+/-) 0.15 %; at 0 to 20 mA, ±5 mA, ±10 mA, ±20 mA, 4 to 20 mA
Basic error limit (operational limit at 25 °C): Resistance, relative to input range, (+/-) 0.15 %; ±0.15 % at 0 to 48 ohms (4-conductor measurement), 0 to 150 ohms (4-conductor measurement), 0 to 300 ohms (4-conductor measurement), 0 to 5000 ohms (4-conductor measurement, in range of 6000 ohms); ±0.3 % at 0 to 300 ohms (3-conductor measurement), 0 to 600 ohms (3-conductor measurement), 0 to 5000 ohms (3-conductor measurement, in range of 6000 ohms)
Basic error limit (operational limit at 25 °C): Resistance thermometer, relative to input range, (+/-) 0.3 %
Basic error limit (operational limit at 25 °C): Thermocouple, relative to input range, (+/-) TC Type B (±7.6 K), TC Type R (±4.8 K) TC Type S (±5.4 K), TC Type T (±1.1 K), TC Type E (±1.8 K), TC Type J (±2.3 K), TC Type K (±3.4 K), TC Type U (±1.7 K), TC Type L (±2.3 K), TC Type N (±2.6 K)

Interrupts/diagnostics/status information 7

Diagnostics function Yes; Parameterizable
Alarms: Diagnostic alarm Yes; Parameterizable
Alarms: Limit value alarm Yes; Parameterizable
Alarms: Hardware interrupt Yes; Parameterizable
Diagnoses: Diagnostic information readable Yes
Diagnostics indication LED: internal fault INTF (red) Yes
Diagnostics indication LED: external fault EXTF (red) Yes

Potential separation 3

Potential separation analog inputs: Potential separation analog inputs Yes; internal/external
Potential separation analog inputs: between the channels No
Potential separation analog inputs: between the channels and backplane bus Yes

Isolation 1

Isolation tested with 2 120 V DC between bus and L+/M; 2 120 V DC between bus and analog section; 500 V DC between bus and local ground; 500 V DC between analog section and L+/M; 2 120 V DC between analog section and local ground; 2 120 V DC between L+/M and local ground

Dimensions 3

Width 25 mm
Height 290 mm
Depth 210 mm

Weights 1

Weight, approx. 500 g

General Product Approval EMV 1

Metrological Approval China RoHS Miscellaneous Manufacturer Declara- tion

Logistics 6

Net weight 0.851 kg
Country of origin DE
Shipping weight 1.351 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026
