SIMATIC S7-400

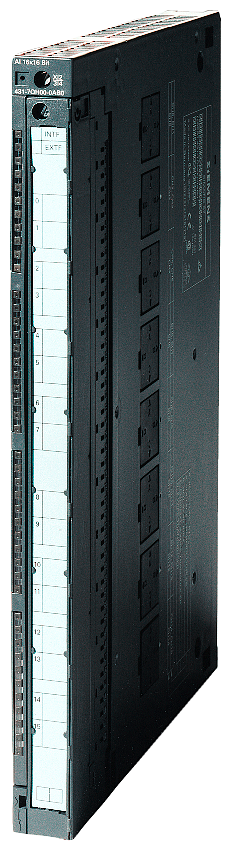

Siemens 6ES7431-7KF10-0AB0 SIMATIC S7-400 SM 431 8AI Resistance/PT100 16-Bit PLC I/O Module

SIMATIC S7-400 SM 431 analog input - 8 isolated PT100/NI100 RTD channels, 16-bit resolution, 3/4-wire.

from backplane bus 5 V DC, max.
650 mA
EAN
4019169026864
Description

About the 6ES7431-7KF10-0AB0

The Siemens 6ES7431-7KF10-0AB0 is a SIMATIC S7-400 SM 431 analog input module with 8 isolated resistance/PT100/NI100 channels at 16-bit resolution and a 20 ms conversion time. It supports Pt100, Pt200, Pt500, Pt1000, Ni100, and Ni1000 resistance thermometers with three- or four-wire connection and parameterizable diagnostic and limit-value alarms.

Selection Notes

Use the four-wire connection over three-wire when lead resistance must be fully compensated for the tightest accuracy; the module holds +/-0.2 degrees C basic error at 25 degrees C but that widens to +/-1 degrees C operational error across the full temperature range, so budget accordingly for close-tolerance process loops. All six RTD types (Pt100 through Ni1000) are parameterizable per channel independently, so mixed sensor types can share one module rather than requiring separate cards per RTD class.

Applications

Fits precision temperature monitoring on rack-based S7-400 systems using RTD sensors: motor winding temperature, furnace and oven zone control, and process temperature loops where 16-bit resolution and multi-RTD-type support reduce the number of module types needed on one rack.

Specification

Full specification

54 values · Last verified 01 Nov 2026

Input current 1

from backplane bus 5 V DC, max. 650 mA

Power loss 1

Power loss, typ. 3.3 W

Analog inputs 19

Number of analog inputs 8
For resistance measurement 8
permissible input voltage for voltage input (destruction limit), max. 35 V; 35 V continuous, 75 V for max. 1 s (mark to space ratio 1:20)
Constant measurement current for resistance-type transmitter, typ. 1 mA
Input ranges: Voltage No
Input ranges: Current No
Input ranges: Thermocouple No
Input ranges: Resistance thermometer Yes
Input ranges: Resistance Yes
Input ranges (rated values), resistance thermometer: Ni 100 Yes
Input ranges (rated values), resistance thermometer: Input resistance (Ni 100) > 10 000 ohms
Input ranges (rated values), resistance thermometer: Ni 1000 Yes; Different characteristics selectable: Europe/U.S.
Input ranges (rated values), resistance thermometer: Pt 100 Yes
Input ranges (rated values), resistance thermometer: Pt 1000 Yes
Input ranges (rated values), resistance thermometer: Pt 200 Yes
Input ranges (rated values), resistance thermometer: Pt 500 Yes
Characteristic linearization: Parameterizable Yes
Characteristic linearization: for resistance thermometer Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000; different characteristics selectable (Europe/U.S.)
Cable length: shielded, max. 200 m; 50 m with thermocouples and input ranges ±80 mV
Show all 54 specifications ↓ Show less ↑33 more values in Identification, Analog value generation for the inputs, Encoder, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Isolation, Dimensions, Weights, Logistics.

Identification 7

Part number 6ES7431-7KF10-0AB0
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Phase-out announced by the manufacturer
EAN 4019169026864

Analog value generation for the inputs 4

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes
Integration and conversion time/resolution per channel: Basic conversion time (ms) 8 / 23 / 25 ms
Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz none/ 60 / 50 Hz

Encoder 1

Connection of signal encoders: for resistance measurement with three-wire connection Yes

Errors/accuracies 2

Operational error limit in overall temperature range: Resistance thermometer, relative to input range, (+/-) ±1 °C
Basic error limit (operational limit at 25 °C): Resistance thermometer, relative to input range, (+/-) ±0,2 °C

Interrupts/diagnostics/status information 5

Diagnostics function Yes; Parameterizable
Alarms: Diagnostic alarm Yes; Parameterizable
Alarms: Limit value alarm Yes
Alarms: Hardware interrupt Yes; Parameterizable
Diagnoses: Diagnostic information readable Yes; possible

Potential separation 3

Potential separation analog inputs: Potential separation analog inputs Yes; internal/external
Potential separation analog inputs: between the channels No
Potential separation analog inputs: between the channels and backplane bus Yes

Isolation 1

Isolation tested with 500 V DC

Dimensions 3

Width 25 mm
Height 290 mm
Depth 210 mm

Weights 1

Weight, approx. 650 g

Logistics 6

Net weight 0.761 kg
Country of origin DE
Shipping weight 1.261 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7431-7KF10-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 6ES7431-7KF10-0AB0

What is the HS code of 6ES7431-7KF10-0AB0 for customs?

The tariff (HS) code on file for 6ES7431-7KF10-0AB0 is 85389091.

What is the EAN of 6ES7431-7KF10-0AB0?

The EAN (GTIN) of 6ES7431-7KF10-0AB0 is 4019169026864.

Where does 6ES7431-7KF10-0AB0 ship from, and how fast?

6ES7431-7KF10-0AB0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
