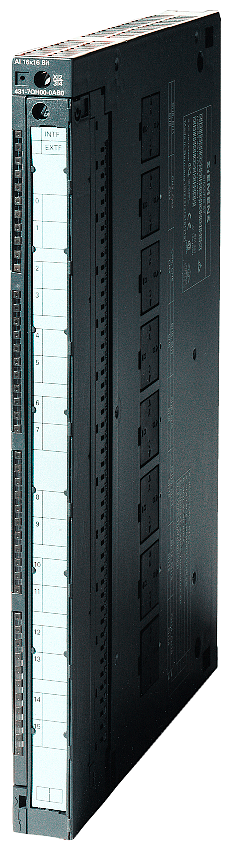

The Siemens 6ES7431-1KF00-0AB0 SIMATIC S7-400 SM 431 module provides 8 isolated analog inputs at 13-bit resolution, measuring voltage, current, and 2/3/4-wire resistance up to 600 ohms on the same channels. Basic conversion time is 23 or 25 ms per channel, and basic error limit is within plus/minus 0.7 percent on voltage and current ranges at 25 degrees C. Channels are isolated from the backplane bus and from load voltage L+.
Full isolation – between channels and the backplane bus, with internal/external separation – makes this module suited to analog signals from ungrounded or electrically noisy sources, where a shared-reference input would pick up common-mode noise. Four measurement types are supported on the same 8 channels: voltage, current, and 2/3/4-wire resistance up to 600 Ω, so one module can cover loop-powered 4-20 mA transmitters and resistive sensors without separate hardware. Basic conversion time is 23/25 ms per channel (50/60 Hz suppression), with 13-bit resolution and better than ±0.7% basic error on voltage and current ranges. Use the 4-wire resistance connection when line resistance must be excluded from the measurement.
| Load voltage L+: Rated value (DC) | not necessary |
|---|
| from backplane bus 5 V DC, max. | 350 mA |
|---|
| Power loss, typ. | 1.8 W |
|---|
| Part number | 6ES7431-1KF00-0AB0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4025515128977 |
| Number of analog inputs | 8 |
|---|---|
| For voltage/current measurement | 8 |
| For resistance measurement | 4 |
| permissible input voltage for voltage input (destruction limit), max. | 50 V |
| permissible input current for current input (destruction limit), max. | 50 mA; 40 mA continuous |
| Constant measurement current for resistance-type transmitter, typ. | 1.67 mA |
| Input ranges: Voltage | Yes |
| Input ranges: Current | Yes |
| Input ranges: Thermocouple | No |
| Input ranges: Resistance thermometer | No |
| Input ranges: Resistance | Yes |
| Input ranges (rated values), voltages: 1 V to 5 V | Yes |
| Input ranges (rated values), voltages: Input resistance (1 V to 5 V) | 200 kΩ |
| Input ranges (rated values), voltages: -1 V to +1 V | Yes |
| Input ranges (rated values), voltages: Input resistance (-1 V to +1 V) | 200 kΩ |
| Input ranges (rated values), voltages: -10 V to +10 V | Yes |
| Input ranges (rated values), voltages: Input resistance (-10 V to +10 V) | 200 kΩ |
| Input ranges (rated values), currents: -20 mA to +20 mA | Yes |
| Input ranges (rated values), currents: Input resistance (-20 mA to +20 mA) | 80 Ω |
| Input ranges (rated values), currents: 4 mA to 20 mA | Yes |
| Input ranges (rated values), currents: Input resistance (4 mA to 20 mA) | 80 Ω |
| Input ranges (rated values), resistors: 0 to 600 ohms | Yes |
| Input ranges (rated values), resistors: Input resistance (0 to 600 ohms) | usable up to 500 ohms |
| Cable length: shielded, max. | 200 m |
| Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. | 13 bit |
|---|---|
| Integration and conversion time/resolution per channel: Integration time, parameterizable | Yes |
| Integration and conversion time/resolution per channel: Basic conversion time (ms) | 23 / 25 ms |
| Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz | 50 / 60 Hz |
| Connection of signal encoders: for voltage measurement | Yes; possible |
|---|---|
| Connection of signal encoders: for current measurement as 2-wire transducer | Yes; with external transmitter supply |
| Connection of signal encoders: for current measurement as 4-wire transducer | Yes |
| Connection of signal encoders: for resistance measurement with two-wire connection | Yes; Line resistances are also measured |
| Temperature error (relative to input range), (+/-) | 0.02 %/K; ±0.02 %/K in impedance measuring range; ±0.007 % in all other measuring ranges |
|---|---|
| Operational error limit in overall temperature range: Voltage, relative to input range, (+/-) | 1 %; ±1.0 % at ±1 V; ±0.6 % at ±10 V; ±0.7 % at 1 to 5 V |
| Operational error limit in overall temperature range: Current, relative to input range, (+/-) | 1 %; at ±20 mA, 4 to 20 mA |
| Operational error limit in overall temperature range: Resistance, relative to input range, (+/-) | 1.25 %; 0 to 500 ohms (4-conductor measurement, in range of 600 ohms) |
| Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-) | 0.7 %; 0.7% at ±1 V; 0.4% at ±10 V; 0.5% at 1 to 5 V |
| Basic error limit (operational limit at 25 °C): Current, relative to input range, (+/-) | 0.7 %; at ±20 mA, 4 to 20 mA |
| Basic error limit (operational limit at 25 °C): Resistance, relative to input range, (+/-) | 0.8 %; 0 to 500 ohms (4-conductor measurement, in range of 600 ohms) |
| Diagnostics function | No |
|---|
| Potential separation analog inputs: Potential separation analog inputs | Yes; internal/external |
|---|---|
| Potential separation analog inputs: between the channels | No |
| Potential separation analog inputs: between the channels and backplane bus | Yes |
| Isolation tested with | 2 120 V DC between bus and analog part; 500 V DC between bus and local ground; 2 120 V DC between analog part and local ground |
|---|
| Width | 25 mm |
|---|---|
| Height | 290 mm |
| Depth | 210 mm |
| Weight, approx. | 500 g |
|---|
| ETIM | 8 EC001420 |
|---|---|
| IDEA | 4 3562 |
| UNSPSC | 15 32-15-17-05 |
| FM Type Examination Cer- | tificate |
|---|---|
| For use in hazard-Maritime application ous locations | NK / Nippon Kaiji Ky- okai |
| Net weight | 0.759 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 1.259 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
